Hody® Profiled Steel Sheets - Trapezium Shaped Permanent Formwork
Verified by manufacturer 2 months ago
Profiled steel sheets with a modified trapezium-shaped profile and 60 mm height. The sheets are intended for the production of 'low' steel and concrete composite floors.
Application
- New build structures.
- Renovation.
- Ground and higher level floors.
- Raised floors.
- Mezzanine floors.
- Walkways.
- Cantilever floors and balconies.
- Composite steel/ concrete floors.
- Composite wood/ concrete floors.
- Unit building.
- Bridges and overpasses.
- Permanent formwork.
Description

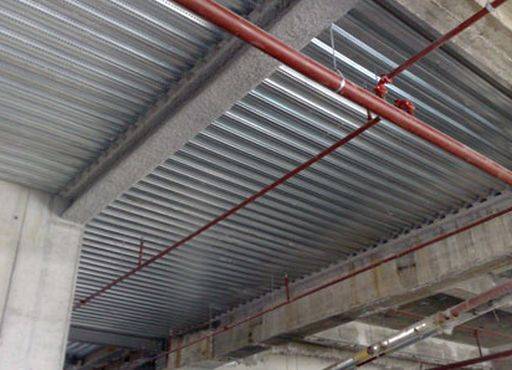

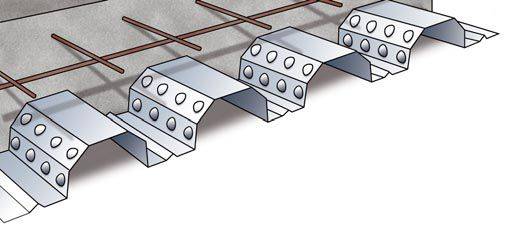

Hody® profiled steel sheets have a modified trapezium-shaped profile, with a height of 60 mm. The sheets are intended for the production of 'low' steel and concrete composite floors. The steel sheet functions as permanent formwork and reinforcement, resulting in an extremely strong, fire-resistant, sound-insulating, relatively thin lightweight composite concrete floor that provides a simple to install cost effective solution.
Features and benefits:
- Thickness of finished concrete floor (minimum): 110 mm.
- Relatively low own weight: >2.10 kN/m².
- Span: 2.0–9.0 m.
- High permissible load.
- High bearing capacity in case of point load.
- Flexible system construction.
- Unsupported assembly to a maximum of 2.0 m.
- Simple and quick assembly.
- Low transportation costs compared to prefabricated concrete.
General information
Color | Grey |
Finish | Galvanized |
Material | Steel |
Shape | Trapezium Rectangle Hexagon |
Length | Bespoke |
Width | 1086 mm |
Height | 60 mm |
Uniclass | |
CAWS | G30/110 Metal profiled sheet decking E20/225 Permanent formwork for suspended floors |
Specification data - Steel profiled sheet
Thickness | 0.75 mm.0.88 mm.1 mm. |
Profile | |
Form | Trapezoidal. |
Height | 60 mm. |
Cover width | 1086 mm. |
Product Reference | Hody® Profiled Steel Sheets |
Length | 5000 mm. Guidance for specification option: Standard trade length. 7400 mm. Guidance for specification option: Standard trade length. 11 000 mm. Guidance for specification option: Standard trade length. 12 000 mm. Guidance for specification option: Maximum length available on request. |
Accessories | None. End profile. Grooved sealing strip. Profiled in-fill section. Galvanized edge shuttering. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | Steel |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % Guidance for specification option: 20% typical for steel products. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
Literature

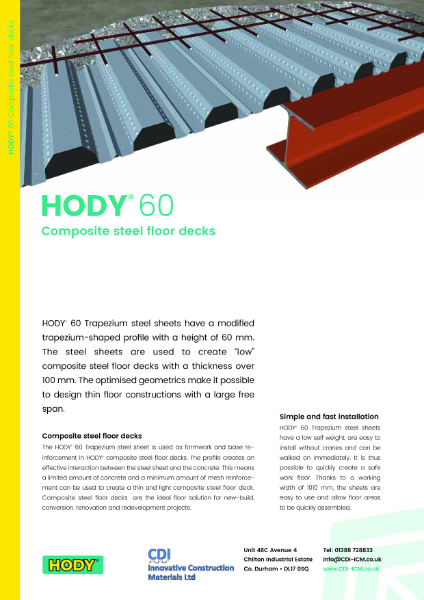

Hody literature
Case studies
Hody to Alexandra Dock
