Max 4 Flooring System - Thin Reinforced Screeded Floor Layer

Verified by manufacturer 4 months ago

CDI Innovative Construction Materials Ltd

Max4 reinforcing sheets for reinforcing and stiffening timber floors and to include underfloor heating.

Jump to:
+44 (0)1388 728833 Website

Application

Suitable for water-resistant floors/ tiled floors on timber in bathrooms, toilets and kitchens and structural, acoustic and fire-rated floors within light gauge steel load-bearing framed buildings.

Description

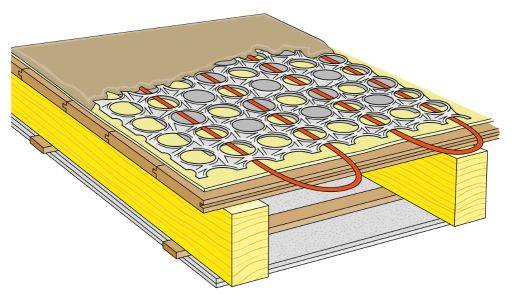

Max 4 Therm composite metal reinforcing and stiffening sheets are typically installed over existing timber floors to level, strengthen and stiffen to give the feel of a concrete floor. This system can incorporate underfloor heating pipes to provide wet underfloor heating. Available in a 10 mm or 20 mm profile height.


Features and benefits:

  • The system will provide acoustic separation between floors with the addition of a 5 mm acoustic mat.
  • Floor loads start at a relatively low 25 kg/m².
  • Low weight but with high loadbearing capabilities.
  • Low final floor thickness.
  • Self-levelling reinforced floor covering.
  • Non-flammable.
  • Ideal for wet or electric under floor heating systems.

General information

Color

Silver

Finish

Galvanized

Material

Steel

Shape

Rectangle

Length

1130 mm

Width

495 mm

Height

10 mm

Uniclass

Ss_30_12_85_16 Composite steel and concrete deck systemsPrimary

Specification data - Composite steel and concrete deck systems

Permanent formwork

-

Steel profiled sheet for composite floor slabs and beams

Steel profiled sheet

Ancillary accessories to permanent formwork

Cold-formed galvanized steel sections.

Guidance for specification option:

To DX53D+Z, conforms to EN 10326.

In situ concrete topping

5 mm cover of screed.

System accessories

None.

5 mm acoustic mat.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Guidance for specification option:

20% typical for steel products.

BIM objects

Platform Compatible Version
Revit

Revit 2017

1
