Application

  • Civic and public sector.
  • Health and emergency services.
  • High security.
  • Industrial.
  • Schools and education.
  • Transport and infrastructure.
  • Utilities.

Description

The HiSec Super8 range has been developed in consultation with the Home Office as a premier high security system, aimed at high profile and sensitive sites requiring the greatest perimeter protection. It is based on HiSec, but is even stronger, presenting a formidable barrier to anyone trying to gain unauthorized access. The 4 mm horizontal wires remain the same however the vertical wires in come in 8 mm diameter and 76.2 mm spacing.

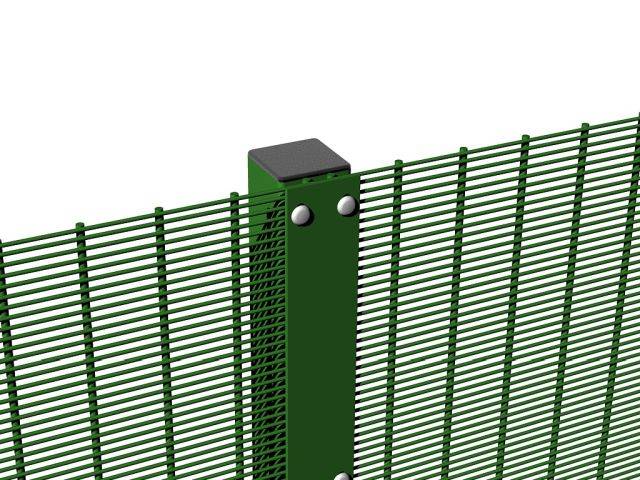

The system is fixed to the post using a full length clamp bar with overlapped panels for added strength and security. A 80 mm plate clamp bar and non-removable external fixings leave no weakness in the fence line. Slotted fixing holes ensure installation is easy and leaves a neat, flush fitting.

Features and benefits:

  • Designed with thicker 8 mm vertical wires to eliminate the need for a double skin 358 mesh system and reduce attack effectiveness.
  • Increased security with a single panel system and improves installation time.
  • Manufactured to the traditional 358 mesh pattern regularly associated with prisons.
  • The tight welded mesh offers no climbing aids and mitigates attack by hand and powered tools.
  • Open mesh pattern provides excellent visibility.
  • Single panel heights can be supplied of up to a maximum of 5.2 m.
  • Panel is flush to the post and fixed to posts using a dual fixing full length clamp bar.

Applications:

  • Civic and public sector.
  • Health and emergency services.
  • High security.
  • Industrial.
  • Schools and education.
  • Transport and infrastructure.
  • Utilities.

General information
Finish

Galvanized and polyester powder coated

Uniclass 2015
Metal mesh panel fencing systems (Ss_25_14_67_51)Primary
Specification data - Metal mesh panel fencing systems
Product Reference

HiSec Super8 DualFix

HiSec Super8 SingleFix

Height

5.2 m maximum, insert requirements.

Gates -
Pedestrian

Not required

Required

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Vehicular

Not required

Required

Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Standard product features

Finish:

Galvanized and polyester powder coated.

Mesh:

HiSec Super8 mesh comprising of 76.2 x 12.7 mm mesh with single 8 mm vertical wires at 76.2 mm centres and 4mm horizontal wires at 12.7 mm centres.

Posts:

Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 2525 mm centres.

Post to panel fixing:

Panels fixed to posts with full height 80 x 5 mm clamp bar with bolt fixings at 400 mm centres. The full height clamp bars create a safe finish with the mesh ends behind the clamp bar.

Gates:

Framed in 100 x 50 mm RHS, with Zaun HiSec Super mesh bolted onto the frame using the Zaun picture frame design, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
