Hinge Down Bollard

Verified by manufacturer 1 month ago

Finished height: 1000 mm

Woodscape Ltd Variant:
Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • FSC

    FSC

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • PEFC

    PEFC

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

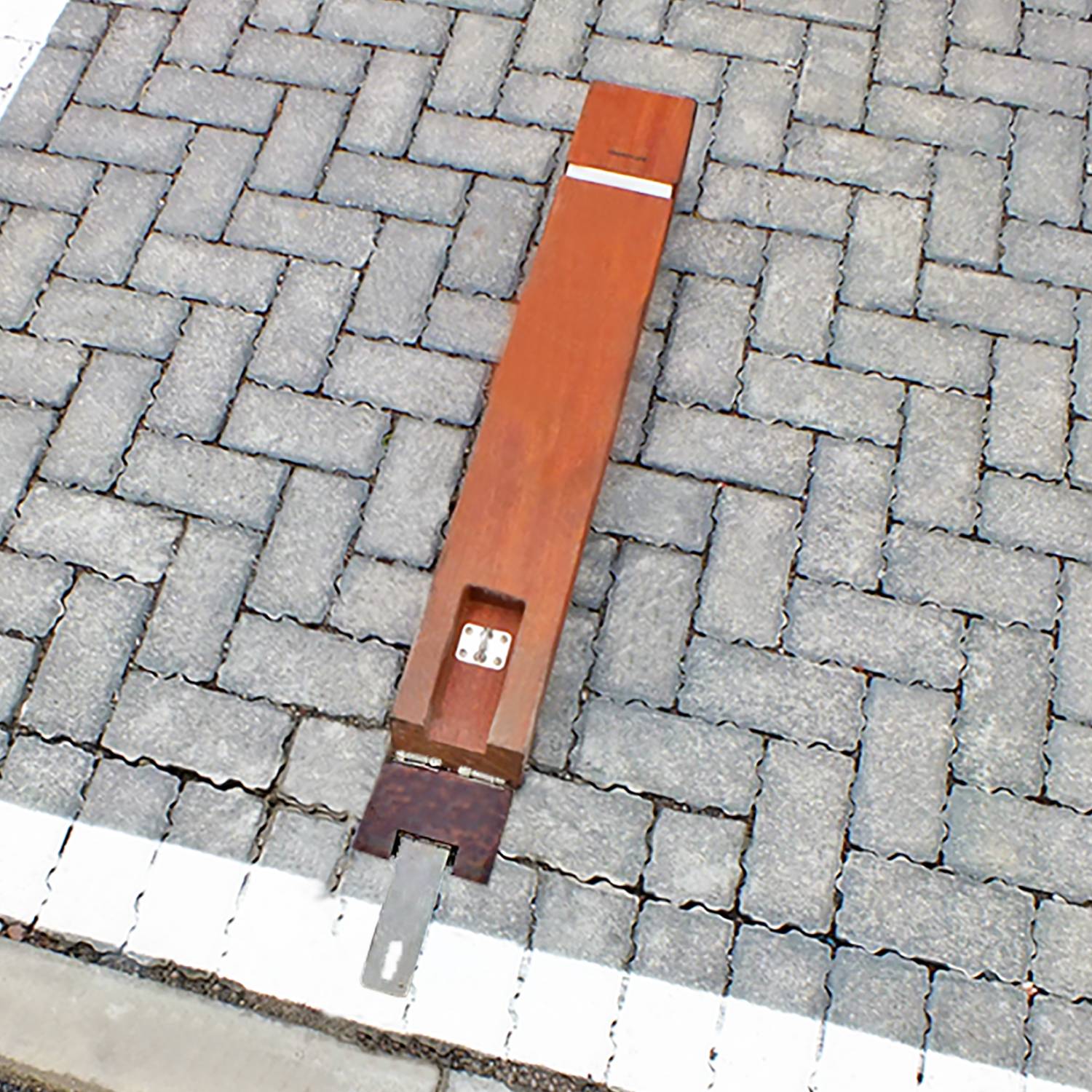

Hinged hardwood timber bollard.

Jump to:
+44 (0)1254 685185 Website

Application

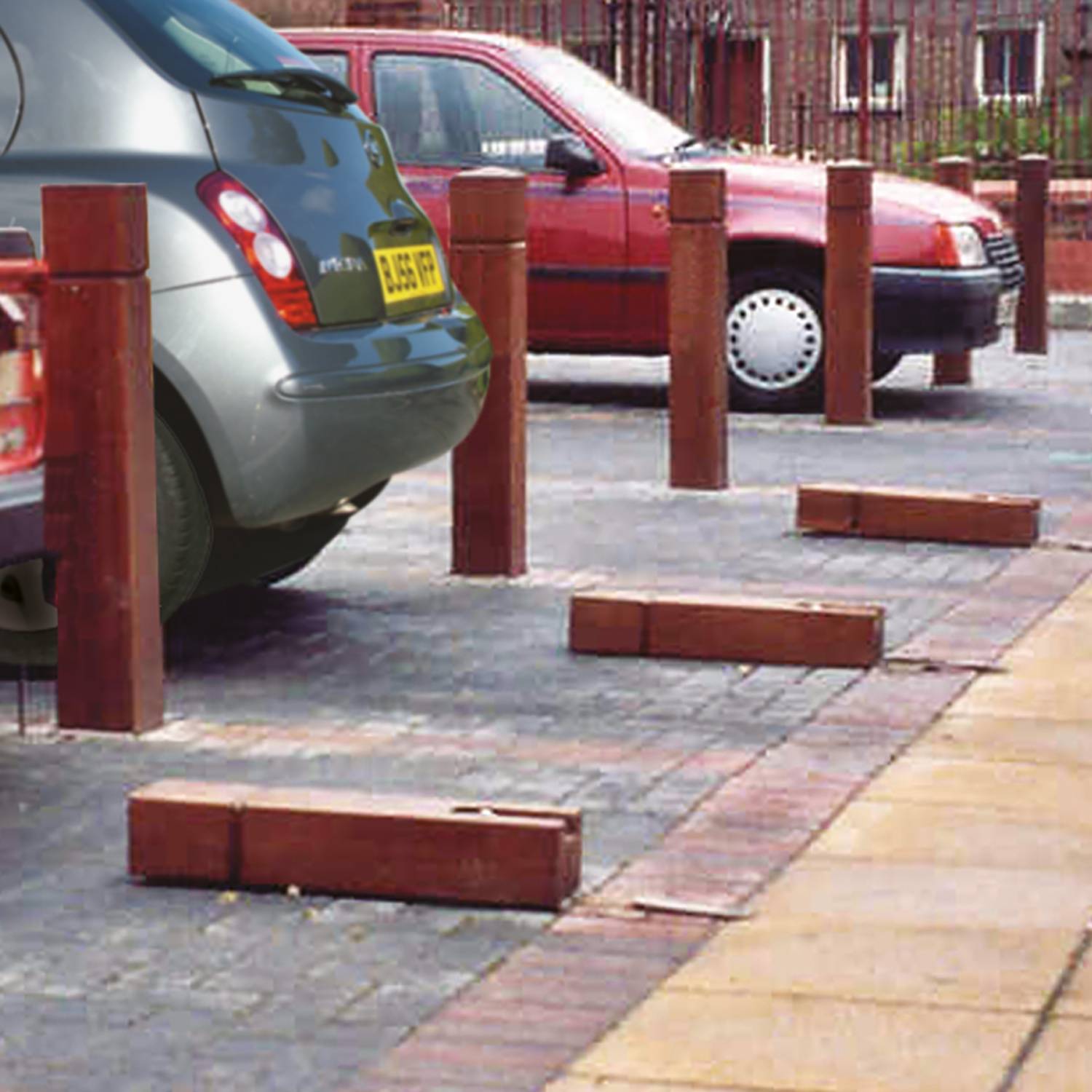

Flexible application particularly suited for private parking and pedestrian walkways.

Description

Hinged hardwood timber bollard, flexible in use, allowing or restricting access of vehicles.


Features and benefits:

  • Flexible in use.
  • Made from Naturally Very Durable Hardwood.
  • Manufactured to a high standard and requires little or no maintenance.
  • Hinge adaptation, including hasp and staple, all in bead blasted Stainless Steel.
  • ⅓ of the Hinge down bollard is below ground level. They project 120 mm approx. above ground level, when in the horizontal position.
  • Three standard heights and six standard sections with bespoke options also available.
  • Customizable appearance with eight different top profiles.
  • Available with or without grooves, reflective bands, engraving, discs, plates or signs.
  • Normal padlock and key or fire brigade padlocks can also be supplied.
  • Designed and manufactured in-house to meet your specific requirements.
  • Available in FSC Certified Hardwood.

General information

Color

Other

Guidance for specification option:

Natural.

Finish

Natural

Material

Wood

Timber

Stainless steel

Shape

Square

Length

Bespoke

1500 mm

1800 mm

1200 mm

Manufacturer guidance

Overall height.

Width

140 mm

190 mm

215 mm

240 mm

290 mm

Show more

Height

1000 mm

1200 mm

800 mm

Bespoke

Warranty description

-

Manufacturer guidance

See https://woodscape.co.uk/warranty/ for details.

Uniclass

Pr_20_76_08_88 Timber bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

Specification data - Timber bollards

Duty

-

Manufacturer guidance

Duty varies, depending on size of timber section. Consult manufacturer for details and insert requirements.

Timber

-

Species

Naturally Very Durable Hardwood.

Third party certification

Forest Stewardship Council (FSC).

Dimensions

-

Size and profile

140 mm.

165 mm.

190 mm.

215 mm.

240 mm.

290 mm.

Custom.

Guidance for specification option:

Custom sizes available on request; consult manufacturer and insert requirement

Height

1000 mm.

Manufacturer guidance

Bollards project approximately 120 mm above ground level, when in the horizontal position.

Length below ground

500 mm.

Top profile

Arch (One-way Dome).

Chamfer (with Flat Top).

Dome.

Dragon Tooth (Angle with Flat Top Edge).

Flat.

Point (Pyramid).

Splay (Angle).

Weathered (Short Pyramid).

Base

Flat.

Finishes

-

Treatment

-

Manufacturer guidance

Available on request; consult manufacturer and insert requirements.

Applied finish

-

Manufacturer guidance

Available on request consult manufacturer and insert requirements.

Accessories

Padlock and key.

Guidance for specification option:

Padlock and key alike.

Fire brigade padlock.

Integral accessories

Bead blasted stainless steel hinges and hasp and staple.

Options

Not required.

Grooves.

Reflective bands.

Discs.

Plates.

Show more

Manufacturer guidance

All options available in a variety of colours: red, blue, green, yellow, white, black. Consult manufacturer for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

-

Manufacturer guidance

Depends on timber species used. Consult manufacturer for more details.

Country of product manufacture

United Kingdom

Material

Wood

Timber

Stainless steel

Manufacturing plant location

Recyclability

Timber is recyclable.

Expected Life

-

Manufacturer guidance

Depends on material choices; consult manufacturer for more details and insert requirements.

Third party certifications

CHAS

CHAS

Contractors Health & Safety Assessment Scheme (CHAS)

FSC

FSC

FSC Chain of Custody Certified Supplier

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015

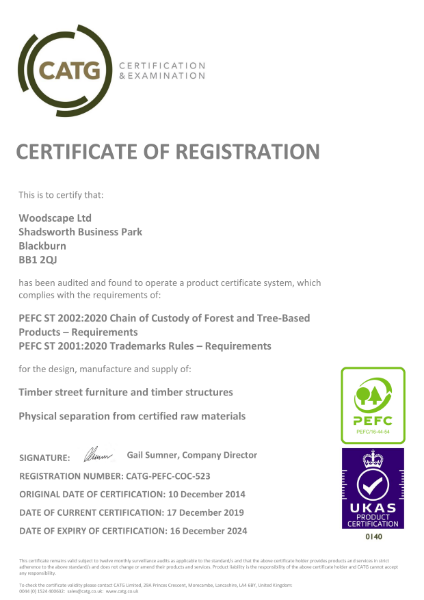

PEFC

PEFC

PEFC Chain of Custody (CoC) Certified Supplier

Made in Britain

Made in Britain

Registered Member of Made in Britain

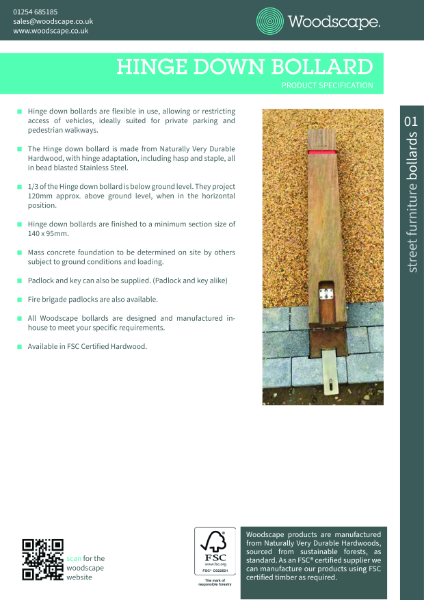

Literature
