Illuminated Bollard
Verified by manufacturer 6 months ago
Round - 900 mm
Round - 900 mm

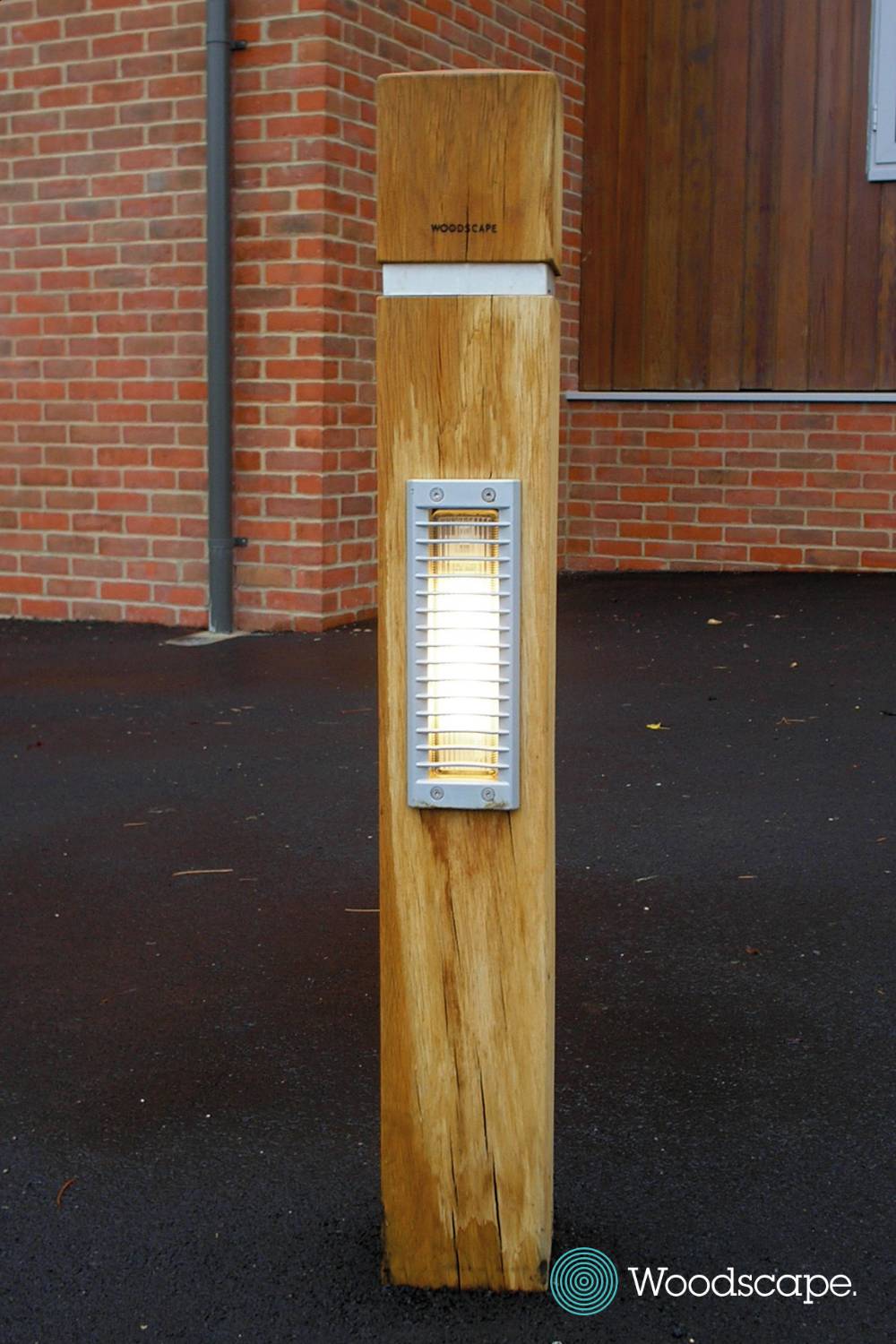

Illuminated square or round bollards with integrated LED units.
Application
Suitable for keeping spaces open and accessible to pedestrians, whilst providing effective traffic control. Illuminated.
Description
Square and round illuminated bollards with integrated rectangular or circle BEGA LED light units.
Features and benefits:
- Available in round or square.
- Eight top profiles.
- Available in a range of widths and heights.
- Can be customised with grooves with optional infills.
- Four circular and four rectangular LED designs for a choice of visual aesthetic.
- Supports Dark-Sky initiatives.
- 3000 K or 4000 K colour temperature.
- Ready to wire in and require no additional components/ drivers.
- BEGA light units.
General information
Color | Grey Silver Other |
Finish | Other |
Material | Wood Timber Plastic |
Shape | Circle Square |
Width | 140 mm 150 mm 165 mm 175 mm 190 mm |
Height | 900 mm 1200 mm 1500 mm |
Warranty description | Three year 20 year Manufacturer guidanceBEGA provide a three year unit warranty and 20 year parts availability guarantee. |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
Specification data - Timber bollards
Duty | Guidance for specification option: Duty varies, depending on size of timber section. Consult manufacturer for details and insert requirements. |
Timber | |
Species | Naturally Very Durable Hardwood. |
Strength class | D60 to BS EN 338. |
Third party certification | Forest Stewardship Council (FSC). |
Dimensions | |
Size and profile | 140 mm width (150 mm section).165 mm width (175 mm section).190 mm width (200 mm section). |
Height | 900 mm.Guidance for specification option: 600 mm above ground. |
Length below ground | 300 mm. |
Top profile | Flat (plain).Weathered (short dome).Dome (rounded).Shoulder dome.Ball (with shoulder).Chamfer (with flat top).Splay (angle).Dragon tooth (angle and flat top). |
Base | Flat. |
Shape | Round. |
Profile | Plain. Grooved, C groove (C). Grooved, 25 mm flat groove (F25). Manufacturer guidanceGroove option. |

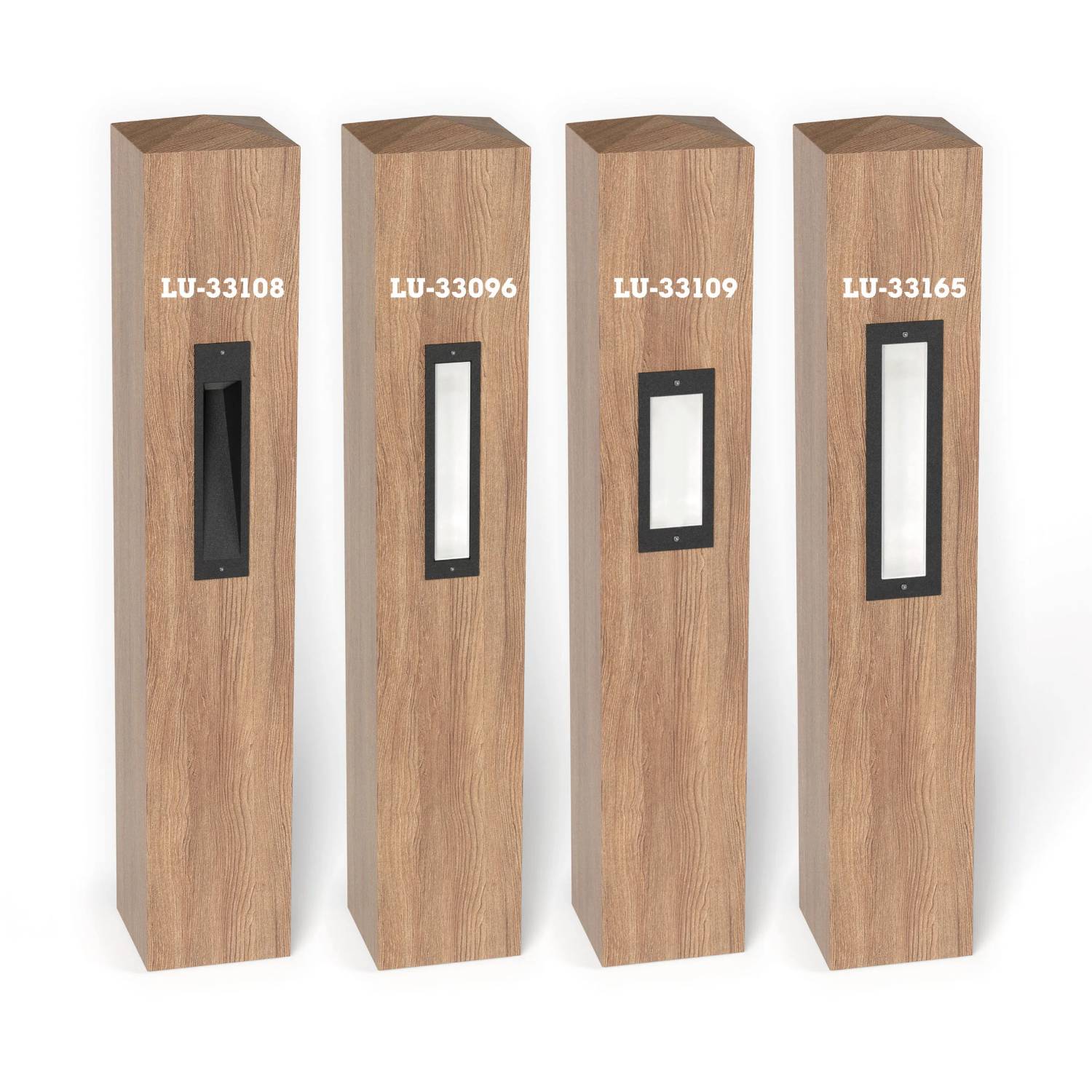

LED | Circular LED Unit, Louvred, 2.5 W - LU-24101. Circular LED Unit, Shielded, 4.9 W - LU-24151. Circular LED Unit, White Glass, 4.9 W - LU-24011. Circular LED Unit, Distributed, 7.0 W - LU-24110. Rectangular LED Unit, Directional, 2.6 W - LU-33108. Manufacturer guidanceConsult manufacturer's literature for shape and size compatibility chart:
|
Faceplate | Graphite. Guidance for specification option: As standard. Silver. Guidance for specification option: Optional. Manufacturer guidanceLED faceplate colour. |
LED Colour | 3000 K warm light temperature (K3). 4000 K natural light temperature (K4). |
Ingress protection (IP) rating | LED protection class: IP65. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceDepends on timber species used. Contact manufacturer for more details. |
Country of product manufacture | United Kingdom |
Material | Wood Timber Plastic |
Manufacturing plant location | |
Recyclability | Timber is recyclable. |
Expected Life | Manufacturer guidanceDepends on material choices. Contact manufacturer for more details. |
Literature
Illuminated Bollard
