High Kerbs
Verified by manufacturer 4 months ago

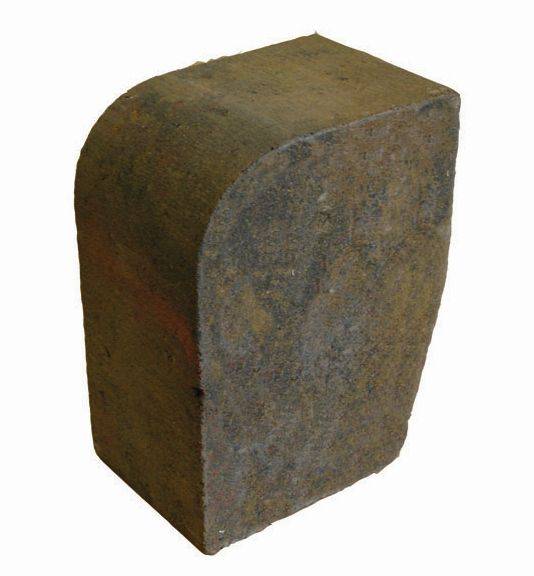

High kerb
High kerb

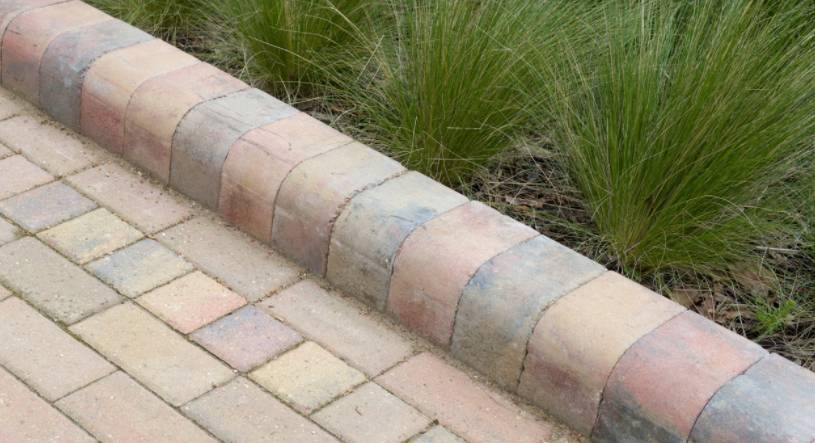

High kerb, designed to create prominent edge details with maximum visibility.
Application
Domestic and lightly-loaded commercial use; lateral restraint for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, roof top and balcony applications.
Description
High kerb, designed to create prominent edge details with maximum visibility.
The smooth finish and clean lines make it a popular choice for the creation of steps, level changes, driveway.
General information
Color | Grey Brown |
Material | Concrete Guidance for specification option: Precast (semi-dry-pressed and vibrated. |
Shape | Rectangle |
Length | 125 mm 150 mm 200 mm |
Width | 100 mm 150 mm 200 mm |
Height | 125 mm 150 mm 200 mm |
Uniclass | |
CAWS | Q10/10 Precast concrete Q10/110 Proprietary precast concrete |
Specification data - Concrete kerbs
Standard | To BS EN 1340: 2003. |
Physical properties | |
Colour | Autumn Gold.Brindle.Charcoal. |
Finish | As cast. |
Profile | |
Designation | |
Dimensions | 125 x 100 x 125 mm.Guidance for specification option: Tolerance on working dimensions: Thickness ±3 mm ; Plan size ±2 mm. Chamfer: As pressed. |
Radial units | |
Radial face | |
Radius | |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3.Guidance for specification option: ≤23 mm, determined by Wide Wheel Abrasion test. |
Bending strength | Manufacturer's standard.Guidance for specification option: Characteristic tensile splitting strength: ≥3.6 MPa; Failing load: ≥250 N/mm. |
Unpolished Slip Resistance Value (USRV) (minimum) | ≥55; Potential for slip: Low. |
Recycled content (minimum) | Guidance for specification option: Manufacturer's standard. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete Guidance for specification option: Precast (semi-dry-pressed and vibrated. |
Recyclability | 100% |
Expected Life | 40 year |
Literature

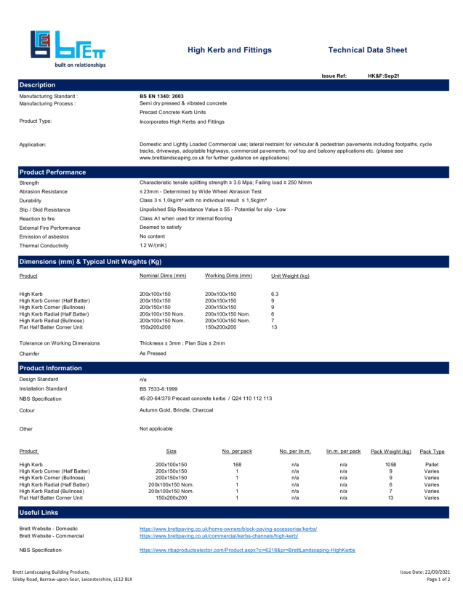

High Kerb and Fittings TDS Sep 21
