Drivestyle Kerbs
Verified by manufacturer 4 months ago

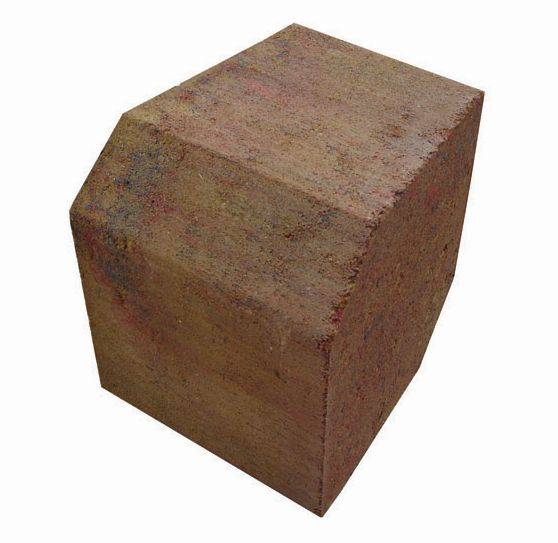

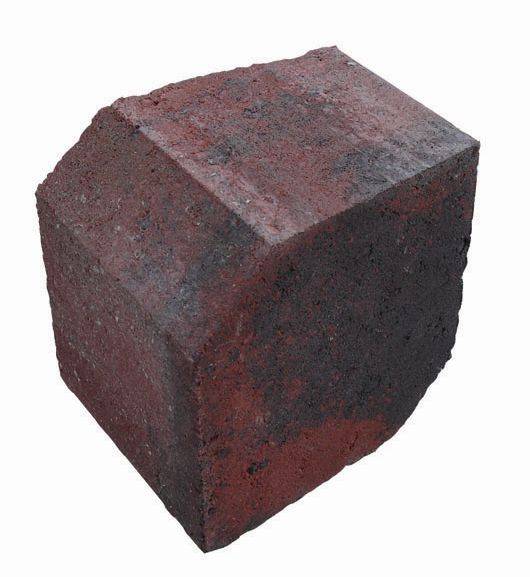

Drivestyle kerb
Drivestyle kerb
Low-profile kerb with clean edges, compatible with many other Brett paving products.
Application
Domestic and lightly-loaded commercial use:
Lateral restraint for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, roof top and balcony applications.
Description
Low-profile kerb with clean edges.
Complements Lugano, Beta and Delta units, and provides striking contrast to Aura, Alpha and Regatta products (all specified separately).
General information
Color | Red Grey Brown |
Material | Concrete Guidance for specification option: Precast (semi-dry-pressed and vibrated. |
Shape | Square Rectangle |
Length | 125 mm |
Width | 100 mm 125 mm |
Height | 125 mm |
Uniclass | |
CAWS | Q10/10 Precast concrete Q10/110 Proprietary precast concrete |
Specification data - Concrete kerbs
Standard | To BS EN 1340: 2003. |
Physical properties | |
Colour | Autumn Gold.Brindle.Charcoal. |
Finish | As cast. |
Profile | |
Designation | SP. |
Dimensions | 125 x 100 x 125 mm.Guidance for specification option: Tolerance on working dimensions: Thickness ±3 mm ; Plan size ±2 mm. Chamfer: As pressed. |
Radial units | |
Radial face | |
Radius | |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3.Guidance for specification option: ≤23 mm, determined by Wide Wheel Abrasion test. |
Bending strength | Manufacturer's standard.Guidance for specification option: Characteristic tensile splitting strength: ≥3.6 MPa; Failing load: ≥250 N/mm. |
Unpolished Slip Resistance Value (USRV) (minimum) | ≥55; Potential for slip: Low. |
Recycled content (minimum) | Guidance for specification option: Manufacturer's standard. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete Guidance for specification option: Precast (semi-dry-pressed and vibrated. |
Recyclability | 100% |
Expected Life | 40 year |
