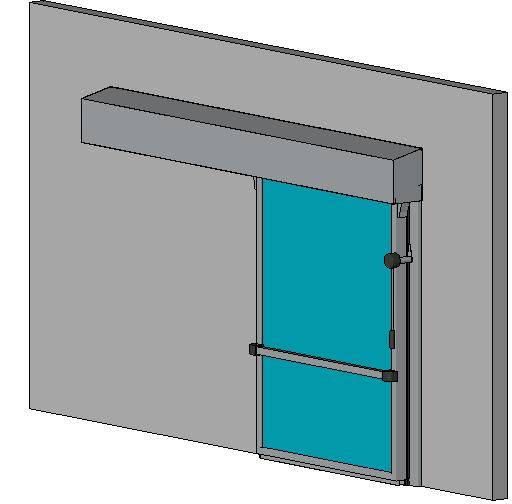

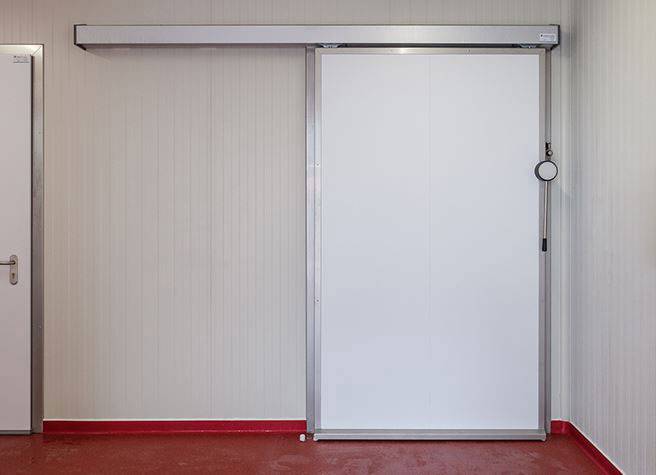

Hermetically Sealing Cold Room Sliding Door
Verified by manufacturer 6 months ago
A range of sliding doors for chiller, freezer and other cold applications.
Application
Suitable for the following applications:
- Pharmaceutical facilities;
- Laboratories;
- Food storage and manufacturing.
Description
A range of sliding doors for chiller and freezer applications 0°C to -40°C. Available in two models and four options.
Features and benefits:
- Dortek hermetic doors are specialist hygienic doors of high quality and robust construction which are designed to deliver safety, reliability and efficiency in environments where infection control is critical.
- The door has an exclusive patented track system which enables it to seal perfectly when closed, helping to reduce air handling costs, cross contamination and wound infections. Air leakage has been tested independently and results up to 400 Pa pressure are available.
- A flush seamless surface with an attractive finish which is easy to keep clean. Free from ledges and gaps to eliminate breeding grounds for bacteria. These doors make optimal use of room space and cause less accidents when opening and closing.
- Controls air leakage.
- Lower air handling costs.
- Reduces cross contamination.
- Smooth hygienic surface.
- Safe reliable, low maintenance.
- No floor track required.
- Good sound reduction creates quiet working environment.
General information
Color | Manufacturer guidanceFormica Colour Range - consult manufacturer. |
Material | Polyurethane Stainless steel |
Shape | Rectangle |
Width | 1000 mm 3000 mm Manufacturer guidanceInside frame width. Minimum, 1000 mm; maximum, 3000 mm. |
Height | 2100 mm 3000 mm Manufacturer guidanceInside frame height. Minimum, 2100 mm; maximum, 300 mm. |
Warranty description | One year |
Uniclass | |
CAWS | L20/490 Automatic doors L20/520 Sliding doors L20/60 Doors |
Product range |
Specification data - Sliding door and partition sets
Track system | Anodized aluminium rail system with nylon bearings. |
Operation | Automatic.Guidance for specification option: Automated doors include a micro-processor controlled safety photo-cell with in-built safety sensor to open the door if obstructed. Interlocking systems available. Other methods of actuation available - contact manufacturer. |
Door material | High-density injected polyurethane panels. |
Colour | Special order. Guidance for specification option: Insert requirement. |
Door frame | Anodized aluminium corner profile. Stainless steel. |
Vision panels | 300 x 600 mm. 400 x 400 mm. 600 x 600 mm. |
Canopy | Aluminium with sloping top. Stainless steel with sloping top. Steel, polyester powder-coated white with sloping top. |
Handles | Stainless steel D handle and flush grip. Stainless steel lever handle both sides. |
Vision panel | Double glazed. |
Bottom guide track | Internal bottom track with nylon guide. |
Material | Anodized aluminium profiles. |
Material | Polyurethane core. Guidance for specification option: 60 mm thick with a 1 mm thick hard plastic laminate facing on 5 mm thick board/ 6 mm thick hard plastic laminate and a 48 mm thick polyurethane core. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Netherlands |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
