Hempadur 15570 - Epoxy Primer - Primer

Verified by manufacturer 4 months ago

Hempel A/S

A two component, polyamide-adduct cured epoxy paint.

Jump to:
+447827 448651 Website

Application

As a maintenance and repair primer, intermediate, and/or finishing coat in Hempadur systems in severely corrosive environment. As a finishing coat where a cosmetic appearance is of less importance. As a low temperature curing epoxy primer, intermediate, and/or finishing coat in paint systems according to specification. Well suited as a (blast) primer in epoxy systems. Mist coat on Galvosil.

Description

For a full Specification contact Ian Morton at iam@hempel.com


Hempadur 15570

A two component, polyamide-adduct cured epoxy paint, which cures to a strong and highly corrosion resistant coating, at temperatures down to -10°C (14°F).


Features and benefits:

  • The Micaceous Iron Oxide pigmented reddish grey 12430 shade is also well suited for application under humid conditions, on damp steel surfaces, and may be applied on moist surfaces.
  • The greyish yellow 21780 and the grey 11320 shades contains zinc phosphate.
  • Maximum, dry exposure only: 140°C (284°F).
  • Well suited as a (blast) primer in epoxy systems.
  • Approved as a low flame spread material when used as part of a predefined paint system.


Certificates/Approvals:

  • EC-type examined as a low flame spread material when used as part of a predefined paint system. Please refer to “Declaration of Conformity” on hempel.com for further details.
  • Complies with the European Fire Standard EN 13501-1, fire reaction class: B-s1, d0.


Product compatibility:

  • Previous coat: None or according to Hempel’s specification.
  • Subsequent coat: According to Hempel’s Specification. Recommended products are Hempadur, Hempathane, Hempatex.


Application method:

  • Airless spray.
  • Air spray.
  • Brush.


Drying time:

Determined for dry film thickness 100 micron (3.9 mils) at standard conditions. Indicative values at 20ºC; Touch dry: 60 minutes, Hard dry: 5 hours.

General information

Color

Grey

Finish

Epoxy

Material

Epoxy

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_31_68_27 Epoxy resin coatingsPrimary
Pr_35_31_68_29 Flame-retardant coatings

CAWS

M60/18 Special coating

G12/30 Proprietary

G12/330 Proprietary metal members

G10/643 Protective painting

G12/20 Shop priming

G12/650 Shop priming

M60/175 Protective coating

G10/638 Shop priming

G10/650 Site painting

G10/640 Shop painting

G10/660 Shop plus site painting

G10/635 Thermally sprayed zinc coating plus site-applied

G10/630 Galvanizing plus site-applied

G10/65 Shop priming for

Specification data - Epoxy resin coatings

Colour

Grey.

Finish:

Flat.

Flash point

25°C (77°F).

VOC content

412 g/L (3.44 lb/US gallon).

Shelf life

Three years.

Manufacturer guidance

3 years for BASE and 3 years (25°C/77°F) for CURING AGENT from time of production.

Volume solids

54% ± 2%.

Fire performance

To EN 13501-1, class B-s1, d0.

Literature

Hempel Sustainability E-Folder

Hempel Sustainability E-Folder

Frequently Used Paints Brochure

Frequently Used Paints Brochure

NORSOK Brochure

NORSOK Brochure

Hempel Corporate Brochure

Hempel Corporate Brochure

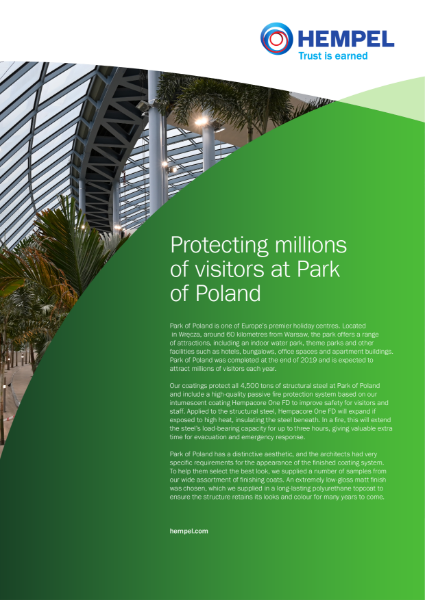

Park of Poland Case Study
