Heathfield Brick - Perforated Facing Brick Creased Finish

Verified by manufacturer 4 days ago

AG Paving and Building Products Ltd Product certifications:
  • DoP

    DoP

    Certificate type

Durable creased‑finish concrete facing brick with low water absorption, high strength and frost resistance, offering a handcrafted aesthetic with modern performance.

Jump to:
028 8952 1275 Website

Application

Suitable applications include:

  • Residential new‑build developments.
  • Housing extensions and refurbishments.
  • Commercial and mixed‑use buildings.
  • Feature walls and architectural detailing.
  • Projects requiring severe‑exposure‑rated masonry.
  • Sustainability‑focused building schemes.
  • UK‑based construction using locally produced materials.

Description

The Heathfield Creased Brick is a high‑quality concrete facing brick featuring a distinctive textured, handcrafted appearance inspired by traditional handmade clay bricks. Manufactured in the UK using responsible sourcing and sustainable processes, it delivers excellent durability, colour consistency, and enhanced performance. Suitable for severe exposure conditions, the brick offers low water absorption, high compressive strength, and long‑term resilience, making it ideal for modern masonry applications.

Features and benefits:

  • Creased finish replicates traditional clay brick texture.
  • High‑variation mould system creating 27 surface variations.
  • Colour blended throughout the full brick body for lasting appearance.
  • Enhanced mix with locally quarried limestone for improved durability.
  • 60‑year warranty for long‑term confidence.
  • Very low water absorption for reduced staining and moisture issues.
  • Frost‑resistant for severe exposure applications (F2 rating).
  • Excellent strength with minimum 22 N/mm² compressive strength.
  • Manufactured using 100% renewable energy and 90% recycled water.
  • 100% recyclable product supporting sustainable construction.
  • Low risk of efflorescence for consistent long‑term appearance.
  • Reduced embodied carbon (30% less than kiln‑fired clay brick).
  • Helps reduce moss, algae growth and deep staining.

Type of mortar:

  • Recommended ratio 6:1 or 5:1 Sand: OPC.

General information

Color

Red

Brown

Grey

Black

Other

Finish

Creased

Material

Concrete

Shape

Rectangle

Length

215 mm

Width

102.5 mm

Height

65 mm

Warranty description

60 year

Uniclass

Pr_20_93_52_02 Aggregate concrete bricksPrimary

CAWS

F10/215 Concrete facing brickwork

F10/5 Facing brickwork

Specification data - Aggregate concrete bricks

Classification data

Standard

To BS EN 771-3.

Environmental performance requirements

-

Environmental rating

BREEAM ‘A’ Rating – in accordance with the BRE Green Guide to Specification.

Brick description

Facing brick.

Appearance

Match existing.

Compressive strength

-

Mean value

22 N/mm².

Manufacturer guidance

Compressive strength (to PD 6697: 2010 and Eurocode 6).

Freeze-thaw resistance

Frost-resistant.

Thermal conductivity

1.56 W/m·K.

Work sizes (length x width x height)

215 x 102.5 x 65 mm.

Tolerance category

D2.

Manufacturer guidance

Size tolerance: hEN 771-3: 2011 (T1) Category D2.

Density

-

Gross dry density

2200 kg/m³.

Reaction to fire

Class A1 to BS EN 13501-1.

Water absorption by capillarity

4.4 g/(m².s).

Water vapour permeability

To EN 1745, 5/15 µ.

Edges

Square.

Surface finish

Creased.

Colour

Ember.
Harvest.
Raven.
Russet.
Sunset.

Durability designation

F2 severe exposure.

Water absorption

6%

Manufacturer guidance

Maximum.

Bond strength

0.15 N/mm².

Active soluble salts

0.03%.

Moisture movement

0.46 mm/m.

Manufacturer guidance

Moisture movement coefficient (to BS EN 772-14: 2001 (E)): 0.46 mm/m.

Sustainability data

Country of material origin

United Kingdom

Manufacturer guidance

  • BES 6001 Responsible Sourcing of Concrete Products (Rating: Excellent).
  • Manufacturing Produced in the UK from locally sourced materials

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Concrete

Recyclability

100%

Manufacturer guidance

  • Energy Use 100% renewable.
  • Water Used 90% recycled water.
  • Recyclable 100% of this product can be recycled.
  • Waste Wood + Plastic 100% recycled.

Product certifications

DoP

DoP

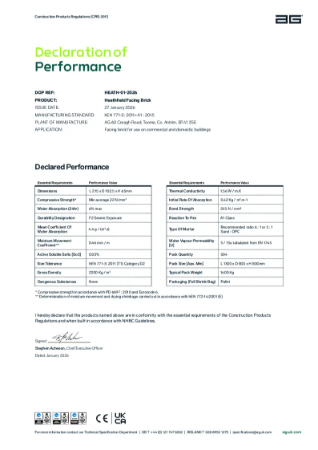

Heathfield - Declaration of Performance

Literature

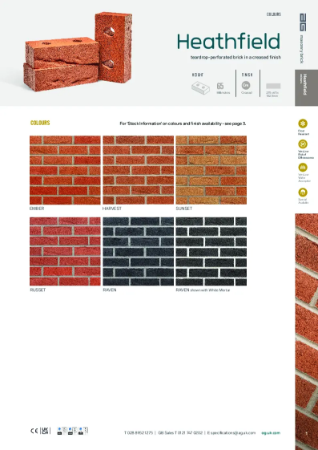

Heathfield Brick Technical Datasheet

Heathfield Brick Technical Datasheet
