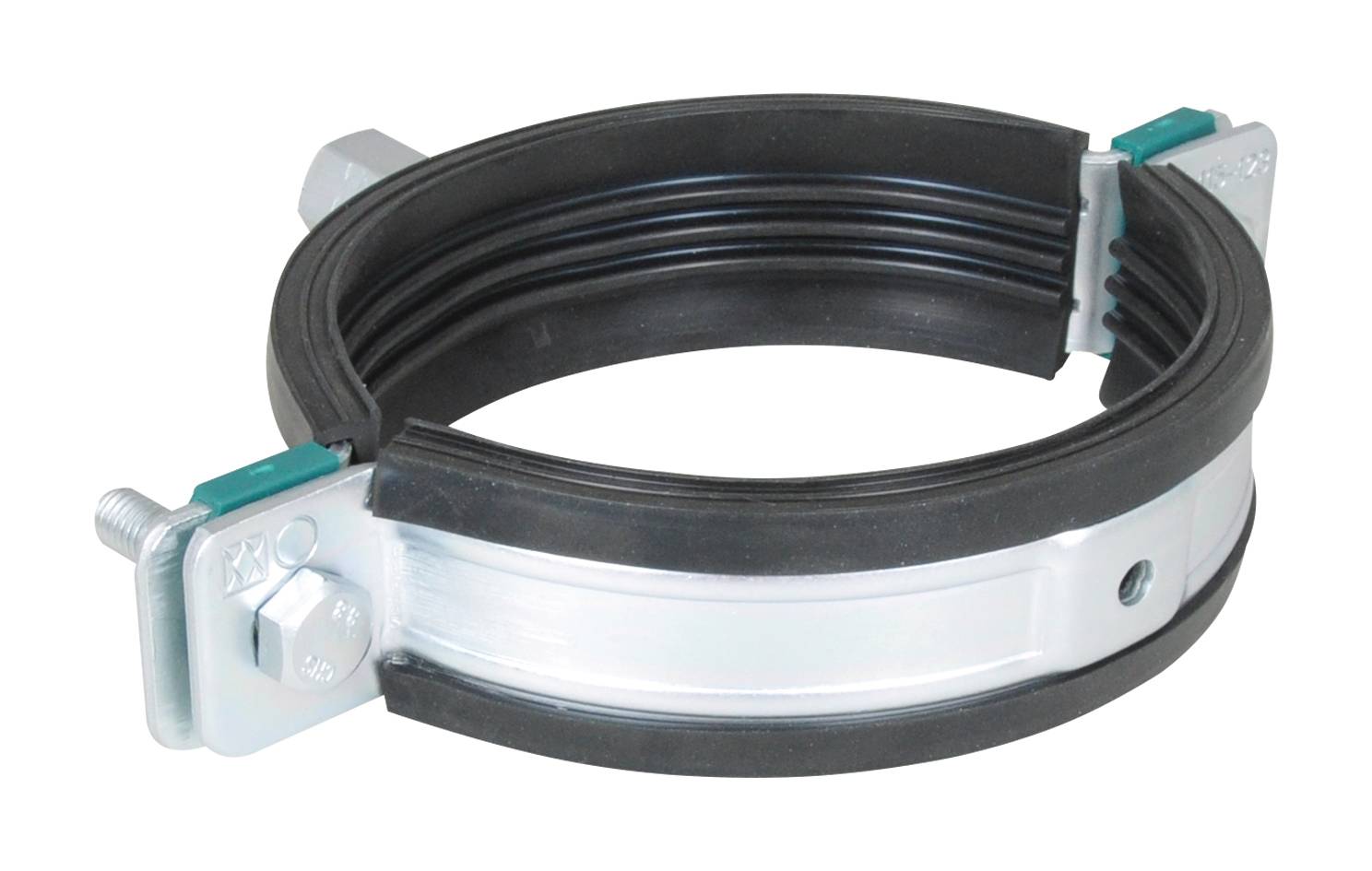

HD1501 - Heavy Duty Clamp with Lining (M8/10 - M10/12)

Verified by manufacturer 17 days ago

Pipe diameter: 15–19 mm

Walraven Ltd Variant:

Two-part clamp with two locking bolts; for metal pipes.

Jump to:
+44 (0)1295 753400 Website

Application

For use with metal pipes; 15–227 mm.

Suitable for indoor and outdoor applications.

Description

Two-part clamp with two locking bolts; for metal pipes.


Features and benefits:

  • Up to and including 5": locking nut is captive, hidden in plastic holder.
  • Heavy design.
  • Bolts secured with anti-loss washer.
  • With CO2 welded connection nut.
  • Material: steel.
  • Surface protection: product is part of the BIS UltraProtect® 1000 system (suitable for indoor and outdoor applications). Stands minimum 1000 hours salt spray test (maximum 5% red rust) according to ISO 9227.
  • Lining:
  • Noise insulating, EPDM rubber, black.
  • Age resistant.
  • Sound insulating according to DIN 4109.
  • Also available: noise insulating lining of silicone rubber (reddish brown), heat resistant up to +200 °C (A 35 15).
  • Tested for fire safety.

General information

Color

Silver

Finish

Guidance for specification option:

BIS UltraProtect® 1000.

Material

Steel

Rubber

Guidance for specification option:

EPDM rubber.

Shape

Circle

Uniclass

Pr_20_29_14_65 Pipe clipsPrimary

CAWS

P20/30 Proprietary

P20/170 Proprietary

Specification data - Pipe clips

Clip type

1500 N.

Material

Carbon steel; EPDM rubber lining.

Accessories

None.

Silicone rubber lining.

Guidance for specification option:

Replaces standard EPDM rubber lining.

Noise insulating; reddish brown; heat resistant up to +200°C (A 35 15).

Finish:

BIS UltraProtect® 1000.

Dimensions

81 x 55 x 30 mm.

Guidance for specification option:

Height x width x depth.

Clamp plate: 1 mm thick.

Clamp bolts: M5.

Sustainability data

Country of product manufacture

Czechia
