HD1501 - Heavy Duty Clamp with Lining - M16
Verified by manufacturer 2 months ago
Pipe diameter: 217–227 mm
Pipe diameter: 217–227 mm
Two-part clamp with two locking bolts; for metal pipes.
Application
For use with metal pipes; 217–509 mm.
Suitable for indoor and outdoor applications.
Description
Two-part clamp with two locking bolts; for metal pipes.
Features and benefits:
- Heavy design.
- Bolts secured with anti-loss washer.
- With CO2 welded connection nut.
- Material: steel.
- Surface protection: product is part of the BIS UltraProtect® 1000 system (suitable for indoor and outdoor applications). Stands minimum 1000 hours salt spray test (maximum 5% red rust) according to ISO 9227.
- Lining:
- Noise insulating lining, EPDM rubber, black.
- Age resistant.
- Sound insulating according to DIN 4109.
- Also available: noise insulating lining of silicone rubber (reddish brown), heat resistant up to +200 °C (A 35 15).
- Tested for fire safety.
General information
Color | Silver |
Finish | Guidance for specification option: BIS UltraProtect® 1000. |
Material | Steel Rubber Guidance for specification option: EPDM rubber. |
Shape | Circle |
Uniclass | |
CAWS | P20/30 Proprietary P20/170 Proprietary |
Specification data - Pipe clips
Clip type | 3800 N. |
Material | Carbon steel; EPDM rubber lining. |
Accessories | None. Silicone rubber lining. Guidance for specification option: Replaces standard EPDM rubber lining. Noise insulating; reddish brown; heat resistant up to +200°C (A 35 15). |
Finish: | BIS UltraProtect® 1000. |
Dimensions | 322 x 278 x 38 mm. Guidance for specification option: Height x width x depth. Clamp plate: 4.0 mm thick. Clamp bolts: M12. |
Sustainability data
Country of product manufacture | Czechia |
Literature
BIS UltraProtect® 1000 Leaflet

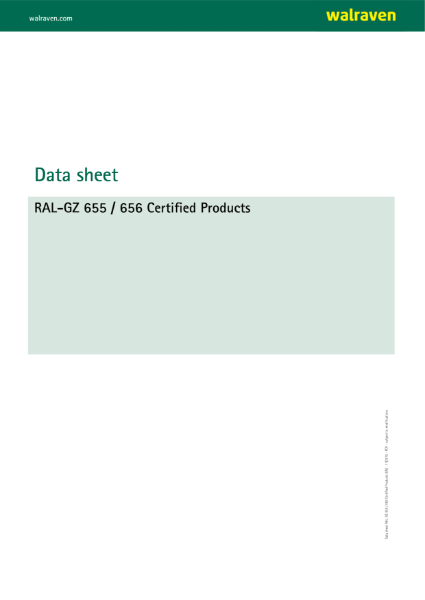

RAL Certified Products Data Sheet
RAL-GZ-655 Brochure
RAL-GZ-656 Brochure
Case studies
Case study - heavy duty pipe supports
