Harmer Modulock Terrace Channel

Name: Harmer Modulock Terrace Channel
Brand: Alumasc Water Management Solutions
SKU: pGsJNE5fbpRHugrnT3imZg

Verified by manufacturer 2 months ago

Harmer Modulock Terrace Channel - Variable Height

Third party certifications:

Balcony, Terrace or Podium Slot Channels For Level Access

Jump to:

Application

For terraces, roof terraces and garden drainage

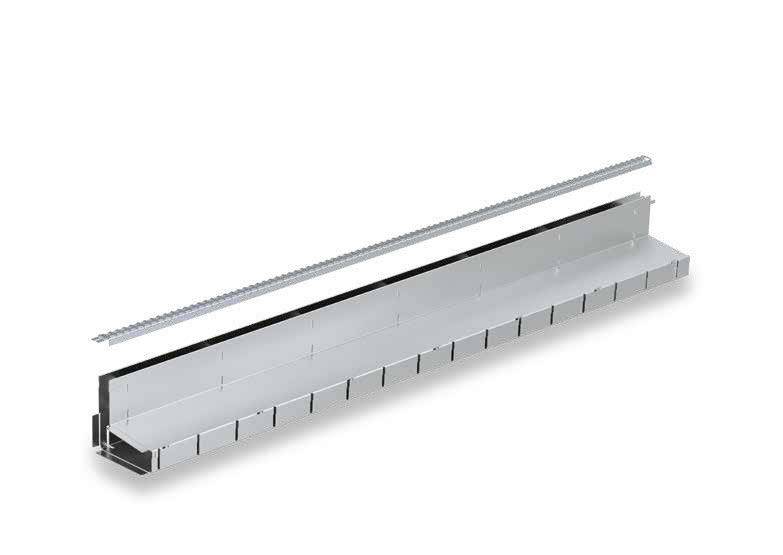

A terrace channel that allows drainage on both the flooring level and the underlying floor plates.

Features and Benefits:

Color	Grey Silver
Material	Steel Guidance for specification option: Galvanized. Stainless steel
Shape	Rectangle
Length	1000 mm
Width	18 mm Guidance for specification option: Slot.

Uniclass	Pr_65_52_24_47 Linear slot drainage channelsPrimary
CAWS	Q10/170 Linear slot drainage channel systems Q10/30 Linear slot drainage channel system

Product range	Harmer Building Drainage / Modulock Channels

Material	Galvanized steel. Stainless steel.
Slot body	-
Material	Galvanized steel. Stainless steel.
Load class (minimum)	A 15.
Channel unit dimensions	-
Width (nominal)	18 mm. Guidance for specification option: Slots.
Overall depth	80–130 mm.
Length	1000 mm.
Integral accessories	Corners and end plates.
