Wade (HL Profile) Stainless Steel Channel
Verified by manufacturer 2 months ago
UKAS
Certificate type

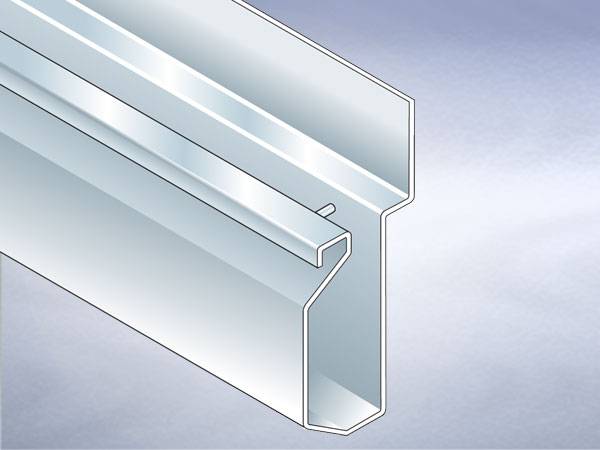

Stainless steel floor drainage channel with asymmetrical grating, suitable for large areas with low volumes of waste water.
Application
Suitable for large areas with only low volumes of waste water such as in abattoirs, butcheries, dairies, breweries etc.
Description
Supaslot channels are suited for large areas with only low volumes of waste water such as in abattoirs, butcheries, dairies, breweries etc. Neat and unobtrusive, the channels are a popular choice as a barrier between designated wet and dry zones, such as between dishwashing and cooking areas of a kitchen.
General information
Color | Silver |
Material | Stainless steel Steel |
Shape | Hexagon |
Length | 3000 mm Guidance for specification option: Maximum. |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/30 Linear slot drainage channel system Q10/170 Linear slot drainage channel systems Q10/180 Drainage channel systems with gratings |
Product range |
Specification data - Linear slot drainage channels
Standard | To BS EN 1433. |
Material | Stainless steel, Grade 304.Stainless steel, Grade 316. |
Slot body | |
Material | Stainless steel, Grade 304.Stainless steel, Grade 316. |
Load class (minimum) | B 125. |
Channel unit dimensions | |
Width (nominal) | Manufacturer guidanceBespoke, insert requirements. |
Overall depth | Manufacturer guidanceBespoke, insert requirements. |
Length | 3000 mm (maximum).Guidance for specification option: Bespoke, insert requirements. |
Integral accessories | Trapped Gully Body.Channel Sealing Kit.Sub Surface Drainage.Filter Bucket.Removeable Bottle Trap.Plug.Portable Funnel. |
Type | Assymetrical Supaslot. |
Sustainability data
Contains Red List materials | No |
Material | Stainless steel Steel |
Recyclability | 100% |
Expected Life | 50 year |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Linear Drainage Brochure 2022
