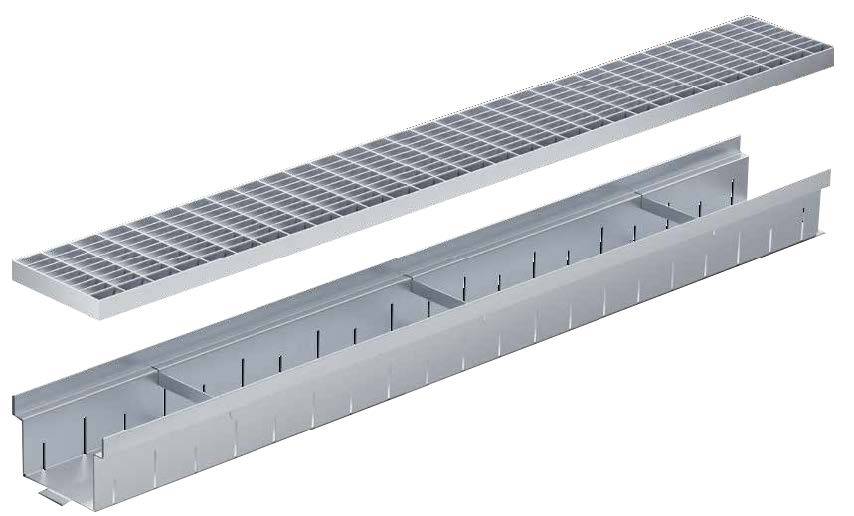

Harmer Modulock Grated Channel
Verified by manufacturer 2 months ago
Unperforated
Unperforated
UKAS
Certificate type
Balcony, Terrace or Podium Grated Channels For Level Access
Application
Suitable for drainage at building perimeters, access thresholds and points of entry or exit
Description
Highly versatile linear drainage systems. They provide a suitable level access drainage solution, stemming and redirecting rainwater run-off and percolation at building perimeters, access thresholds and points of entry or exit.
Features and Benefits:
- Expected life in excess of 40 years
General information
Color | Grey Silver |
Material | Steel Guidance for specification option: Galvanized. Stainless steel |
Shape | Rectangle |
Length | 500 mm 1000 mm 2000 mm |
Width | 130 mm 200 mm |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/170 Linear slot drainage channel systems Q10/30 Linear slot drainage channel system Q10/180 Drainage channel systems with gratings |
Product range |
Specification data - Drainage channels with gratings
Material | Galvanized steel.Stainless steel. |
Gratings | |
Material | Galvanized steel.Stainless steel. |
Form | Mesh.Perforated.Slotted.Longitudinal bar.Cross bar.Ray design. |
Load class (minimum) | A 15. |
Channel unit dimensions | |
Width (nominal) | 130 mm.200 mm. |
Depth (nominal) | Manufacturer guidanceVaries up to 180 mm. Consult manufacturer and insert requirements. |
Length | 500 mm.1000 mm.2000 mm. |
Integral accessories | Corners, end plates and locking set. |
Fire rating (to BS EN 13501) | A1. |
Accessibility | Complies with Approved Document M: Access to and use of buildings. |
Channel | Unperforated (fixed height). |
Sustainability data
Contains Red List materials | No |
Material | Steel Guidance for specification option: Galvanized. Stainless steel |
Recyclability | 100% |
Third party certifications
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
