Harmer Modular 135 - Linear Floor Drainage Channel
Verified by manufacturer 23 days ago

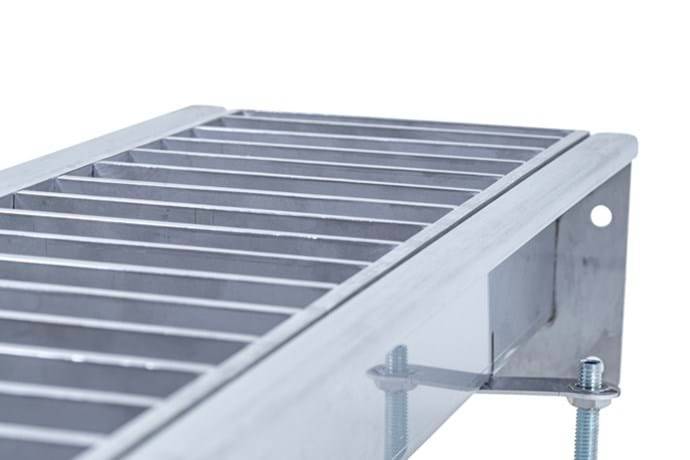

Mesh Anti-Slip Grating
Mesh Anti-Slip Grating
Stainless steel linear floor drainage channels with gratings.
Application
Particularly suitable for high-traffic areas. Typical sectors include:
- Food retail.
- Food processing.
- Chemical and pharmaceutical.
- Brewing, bottling and canning.
- School and leisure.
- Human and animal healthcare.
- Agricultural.
- Restaurants and catering.
Description
Constructed from durable, corrosion resistant stainless steel, the Harmer Modular 135 offers exceptional strength and longevity. With a nominal grating width of 135 mm and load class ratings up to C250, this channel drainage system can withstand heavy foot traffic and even light vehicle loads, making it the ideal solution for high-traffic areas.
Features and benefits:
- A1 Fire Rated channel
- Fully compliant to EN 1253 and fully tested and classified to EN 1433.
- Available in grade 304 stainless steel as standard or made to order in 316.
- Four options of grating.
- Complimentary outlet offer.
- Made from pickle passivated sheet with factory applied weld treatment.
- Easy connection to gully via vertical outlet connection.

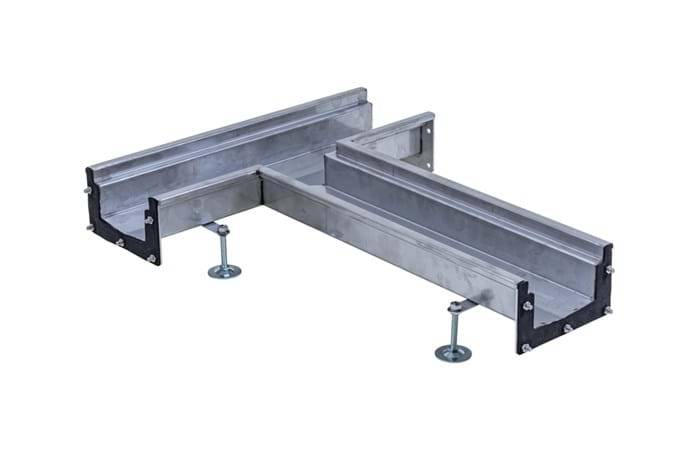

- Extensive range of accessories including end caps, corners, T-junctions, centre and end outlet configurations.
- Vertical and horizontal stainless steel gully and grating options to compliment the modular stainless steel channel system.
- Designed and manufactured in the UK.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Rectangle |
Length | 500 mm 1000 mm 2000 mm 2500 mm |
Width | 135 mm |
Height | 50 mm 75 mm 100 mm |
Uniclass | |
CAWS | Q10/180 Drainage channel systems with gratings Q10/35 Drainage channel systems with gratings |
SKU Code | M135/ |
Specification data - Drainage channels with gratings
Standard | To BS EN 1433 and EN 1253. |
Properties | |
Material | Stainless steel, grade 304. Guidance for specification option: Standard. Stainless steel, grade 316. Guidance for specification option: Made to order. |
Gratings | |
Material | Stainless steel. |
Form | Mesh anti-slip. |
Colour | Silver. |
Load class (minimum) | A 15. |
Channel unit dimensions | |
Width (nominal) | 135 mm. |
Depth (nominal) | 50 mm. 75 mm. 100 mm. |
Length | 500 mm. 1000 mm. 1500 mm. 2000 mm. 2500 mm. |
Integral accessories | Nuts, bolts and gaskets. |
Length | 500 mm. Guidance for specification option: Weight: 1.7 kg. 1000 mm. Guidance for specification option: Weight: 3.2 kg. Manufacturer guidanceGrating length. |
Edges | Standard channel edge. Guidance for specification option:
PVC edge infill. Guidance for specification option:
|
Accessories | Not required. End outlet. Centre outlet. Left hand 90° angle. Right hand 90° angle. Manufacturer guidanceConsult manufacturer's literature for details. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Recyclability | 100% |
Expected Life | 50 year |
