Harmer 4" NPSM Gratings
Verified by manufacturer 1 month ago
Harmer 4" NPSM Gratings - Plain Cap
Harmer 4" NPSM Gratings - Plain Cap
UKAS
Certificate type
4" NPSM Gratings To Suit Harmer Cast Iron Floor Gullies
Application
Suitable for the following flooring substrates:
- Vinyl
- Resin
- Screed
- Tile
- Composite
- Asphalt
- Concrete
Description

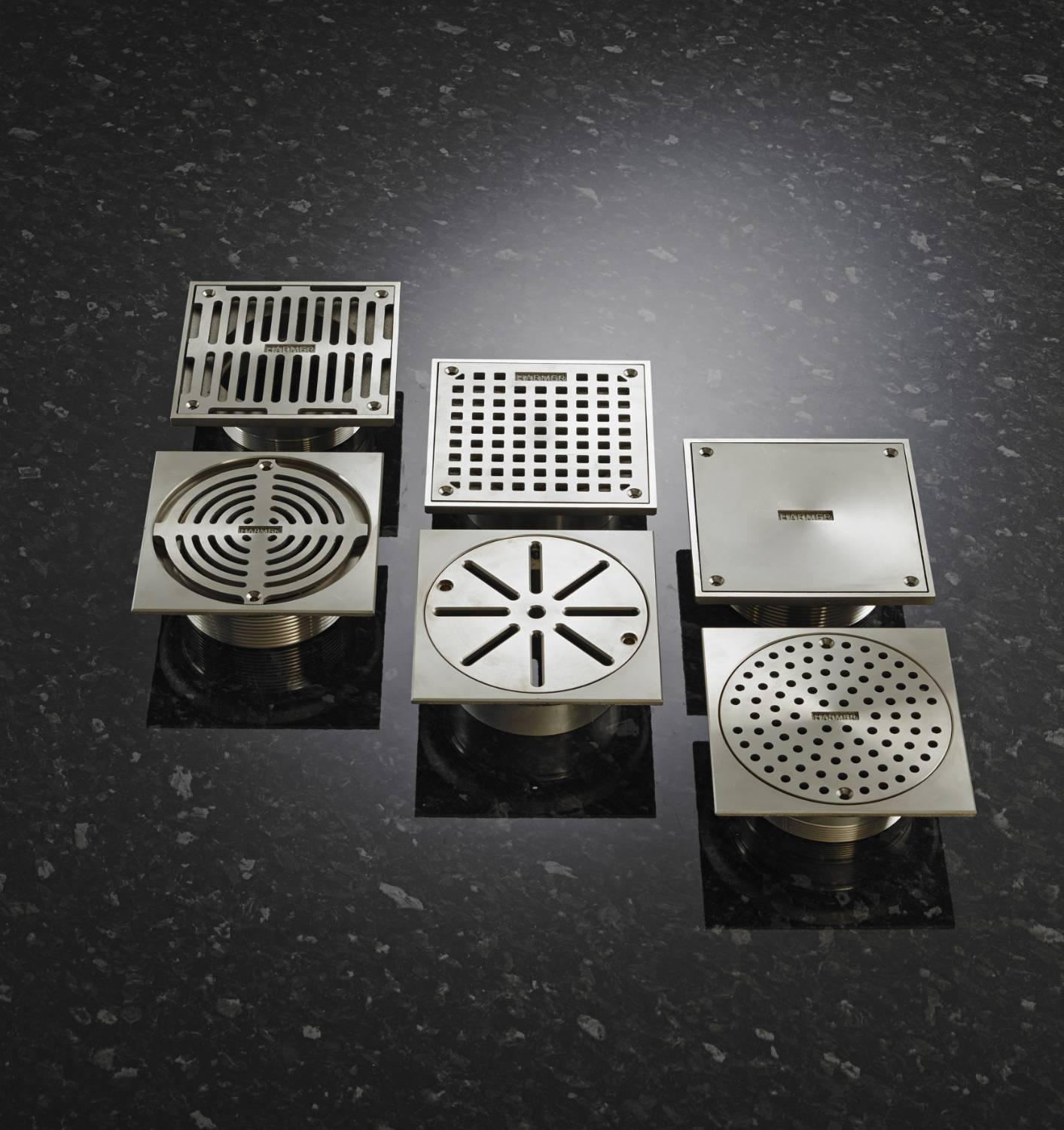

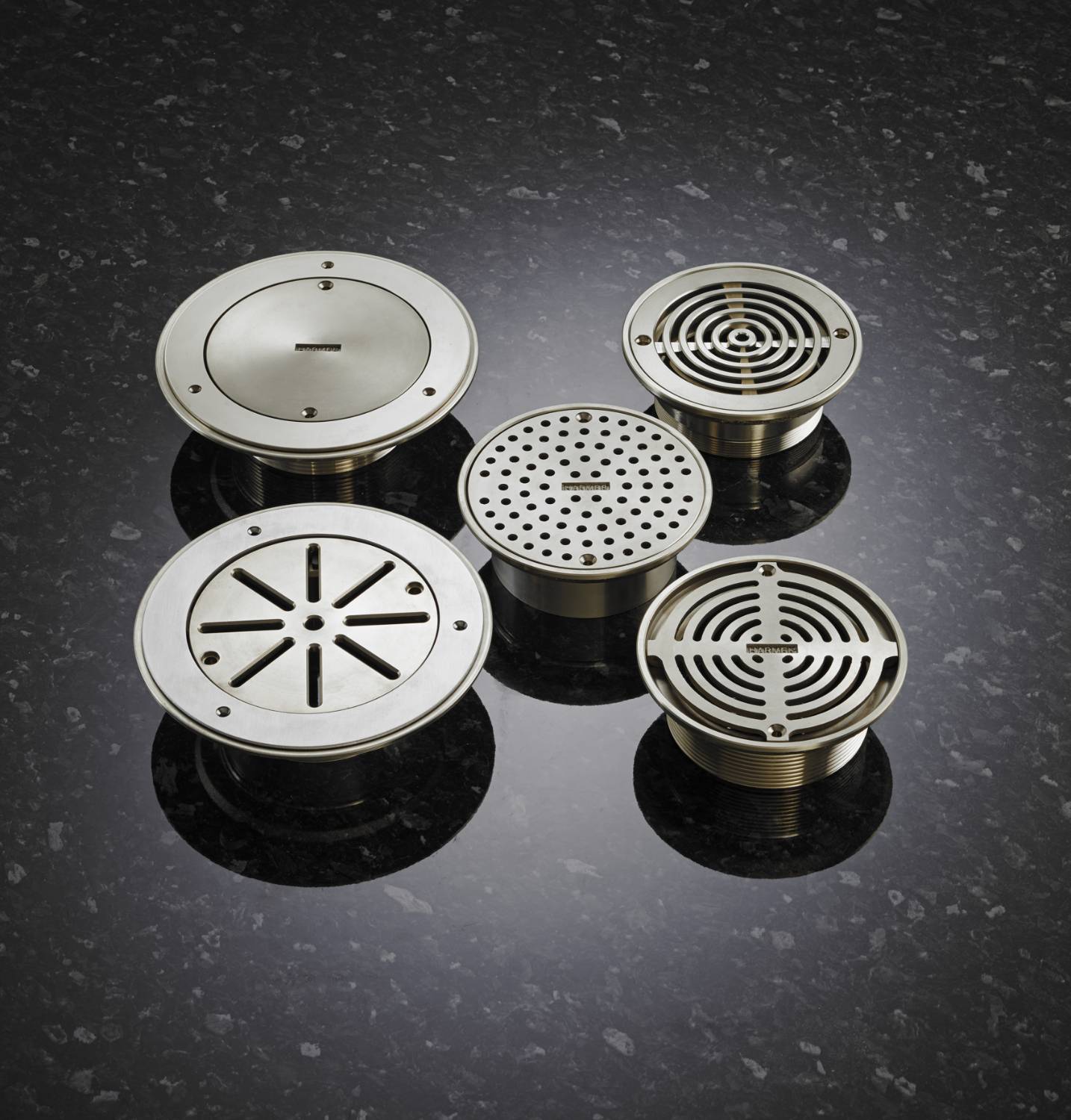

A range of cast iron, NPSM floor drain grates and bezels that offer a wide selection of designs to suit flow rate and load class requirements. Available in either a satin stainless steel or nickel bronze finish, both are durable and provide a long-lasting finish. All the grates come with a choice of three bezel connections to suit any required pipework connection.
Features and Benefits:
- Grates and bezel kits come trapped as standard, if a non-trapped version is required please remove the suffix /T
- Life expectancy in excess of 40 years
General information
Finish | Satin Guidance for specification option: Stainless steel finish. |
Material | Cast iron Guidance for specification option: Body. Stainless steel Guidance for specification option: Satin stainless steel grating. Bronze Guidance for specification option: Nickel bronze grating. |
Shape | Circle Square |
Height | 54 mm |
Uniclass | |
CAWS | R12/50 One piece gullies and covers R12/315 One piece gullies and covers R11/5 Floor drains R11/315 Floor drains |
Product range |
Specification data - Floor gullies
Standard | To BS EN 1253-1. |
Body | |
Configuration | Bell-trapped. |
Material | Cast iron. |
Cover or grating | |
Cover or grating type | Plain cap. |
Finish | Satin stainless steel.Nickel bronze. |
Load class (minimum) | L15. |
NominalSize | 4" NPSM. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron Guidance for specification option: Body. Stainless steel Guidance for specification option: Satin stainless steel grating. Bronze Guidance for specification option: Nickel bronze grating. |
Recyclability | 100% |
Third party certifications
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
Literature
Harmer Cast Iron Floor Drains
