Hagen WS - Clay Facing Brick
Verified by manufacturer 5 months ago

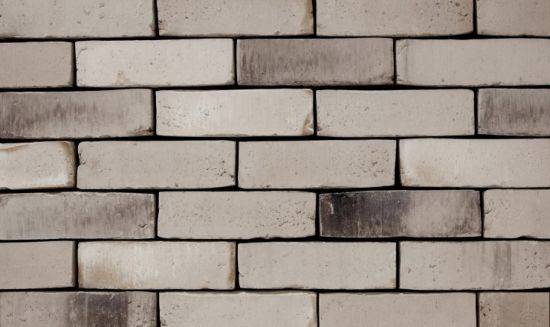

Light grey brick with white and grey shades.
Description
A mix of different kinds of clay forms the basis for this facing brick. This special mix of clays is suited for the manufacturing of hand form bricks. Due to the use of the water-struck-technique the facing bricks sight will appear textured without sand coated surface.
Features and benefits:
- Water-struck technique.
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
General information
Color | Grey White |
Finish | Waterstruck |
Material | Clay |
Shape | Rectangle |
Length | 213 mm |
Width | 101 mm |
Height | 52 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Product range |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Light grey brick with white and grey shades, textured. |
Work size (length x width x height) | 213 x 101 x 52 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | >=25 N/mm².Guidance for specification option: Tested to the bed face. |
Category | Manufacturer guidanceManufacturer's standard. |
Durability designation | F2. |
Density | |
Gross dry | 1880 kg/m³. |
Net dry | 1950 kg/m³. |
Tolerance | D1. |
Water absorption | ≤12% m/md. |
Configuration | Solid. |
Recycled content | Manufacturer guidanceManufacturer's standard. |
Thermal conductivity | ≤0.56 W/m·K.Guidance for specification option: Lambda 50/50 |
Thermal resistance | Manufacturer guidanceManufacturer's standard. |
Water vapour permeability | 50/100 µ. |
Bond strength | General, 0.15 N/mm²; Thin layer, 0.30 N/mm². |
Reaction to fire | Class A1. |
Active soluble salts | S2. |
Jointing | Grey. Joint free. Light grey. White. Beige. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Netherlands |
Material | Clay |
Recyclability | Recyclable |
