GypLyner Single - B226008 (A) (EN)
Verified by manufacturer 4 days ago
Description

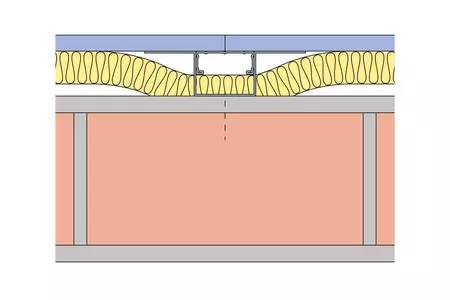

103mm solid brick wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to one side to give 35mm cavity with 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity clad with one layer of Gyproc SoundBloc 12.5mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Uniclass | |
CAWS | K10/165 Wall lining system (metal framing) K10/35 Wall lining system (metal framing) |
Product range |
Specification data - Gypsum board wall lining systems
Support | Bracket type: Gypframe GL2 Bracket. |
Insulation | Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200). |
Linings | Board side 1, Layer 1: Gyproc SoundBloc 12.5mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/wall-linings/GypLyner-Single/B226008-A-EN#details |
Sound insulation | BS 2750-3, 57 Rw dB / 50 Rw + Ctr dB |
Strength grade | Not Stated |
Background | Background: Plaster (13mm), 103mm Solid brick wall (density 1700kg/m³, Plaster (13mm) |
