Guardrail MHE / PIT
Verified by manufacturer 4 months ago
Modular warehouse safety barrier: Define routes, protect columns & mezzanines from low-level fork penetration. Ideal for LLOPs. Easy installation. Custom colours available upon request.
Application
Suitable for use in warehouses to define forklift trucking routes and walkways.
- Warehouse Safety: Effectively defines safe trucking routes and pedestrian walkways, safeguarding against potential collisions with building columns and mezzanine/conveyor supports.
- Industrial Facilities: Provides a protective barrier to prevent low-level fork penetration, ensuring the safety of equipment like Low Level Order Pickers (LLOP’s) and personnel.
- Distribution Centers: Enhances safety by segregating traffic paths, reducing the risk of accidents between forklifts and pedestrians, thus improving overall operational efficiency.
- Manufacturing Plants: Offers a reliable solution to mitigate impact risks, safeguarding building structures and machinery from potential damage caused by industrial vehicles and equipment.
Description
A modular warehouse segregation safety barrier to define trucking routes and walkways, eliminating impact risk to building columns and mezzanine/conveyor supports from low-level fork penetration, particularly relevant for Low Level Order Pickers (LLOPs).
Features and benefits:
- Posts fitted with impact-absorbing rubber pads.
- Height – 1100 mm (BS 6180:2011 / EN 1991-1-1 Eurocode 1).
- Heavy-duty lower rail 120 x 80mm; mid and top rails 80 x 80 mm.
- Post centres – 1850 mm (typical).
- Colour - Powder-coated finish RAL 1023 (Yellow).
Available in yellow as standard, with custom colours available on request
General information
Color | Yellow |
Finish | Powder-coated |
Material | Steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q41/240 Handrail systems Q41/130 Protective barriers Q41/240 Handrail systems Q41/130 Protective barriers Q41/135 Proprietary protective barriers |
Specification data - Metal post and rail barrier systems
Standard | BS 6180:2011, EN 1991-1-1. |
Site applied finishes | Yellow. |
System accessories | Impact absorbing rubber pads. |
Post centres | 1850 mm. |
Size: | 120 x 80 mm; 80 x 80 mm. Manufacturer guidance
|
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature

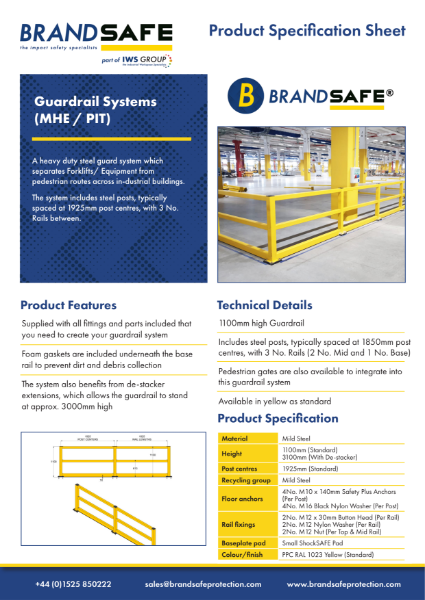

Guardrail (MHE - PIT) - Brandsafe Spec Sheet
