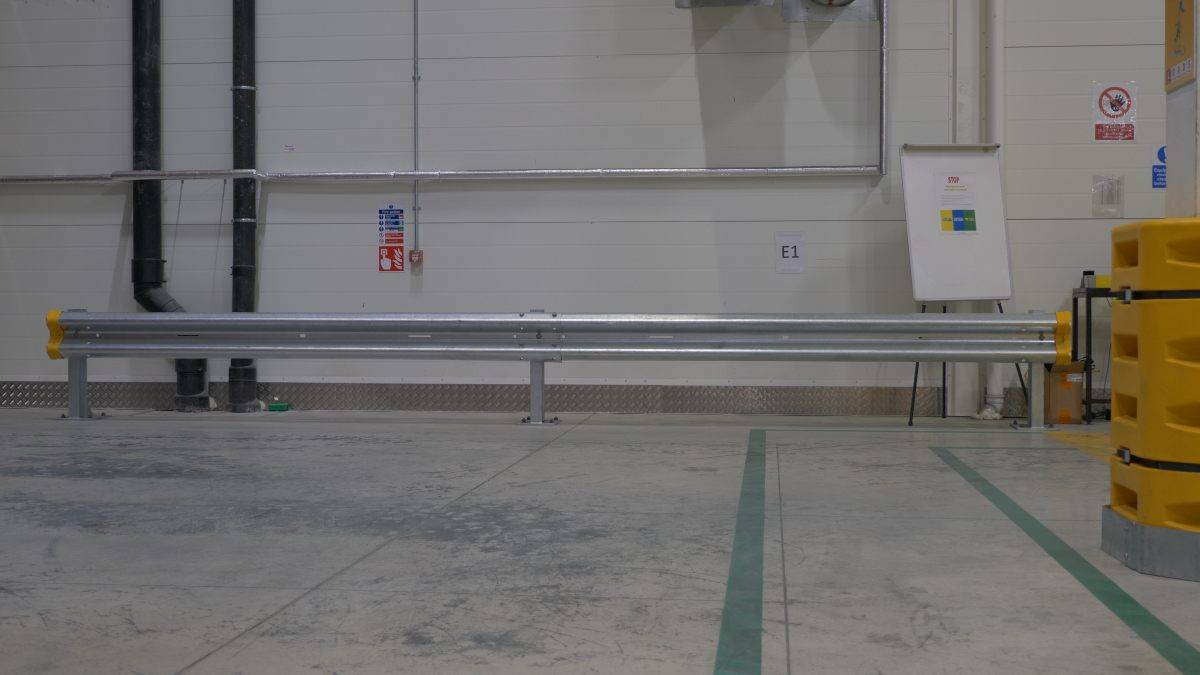

Armco Safety Barrier (Bolt Down) - Bolt Down Safety Barrier System
Verified by manufacturer 4 months ago
Cost-effective Bolt Down Armco Safety Barrier ensures building perimeter and equipment protection. Versatile heights for forklift and pedestrian safety. Optional handrail extensions and safety ends.
Application
Suitable for:
Used in industrial applications to protect against forklift penetrations and pallet impacts.
- Safeguarding loading docks and warehouse walls from vehicle impacts.
- Creating safe pedestrian walkways by segregating forklift traffic.

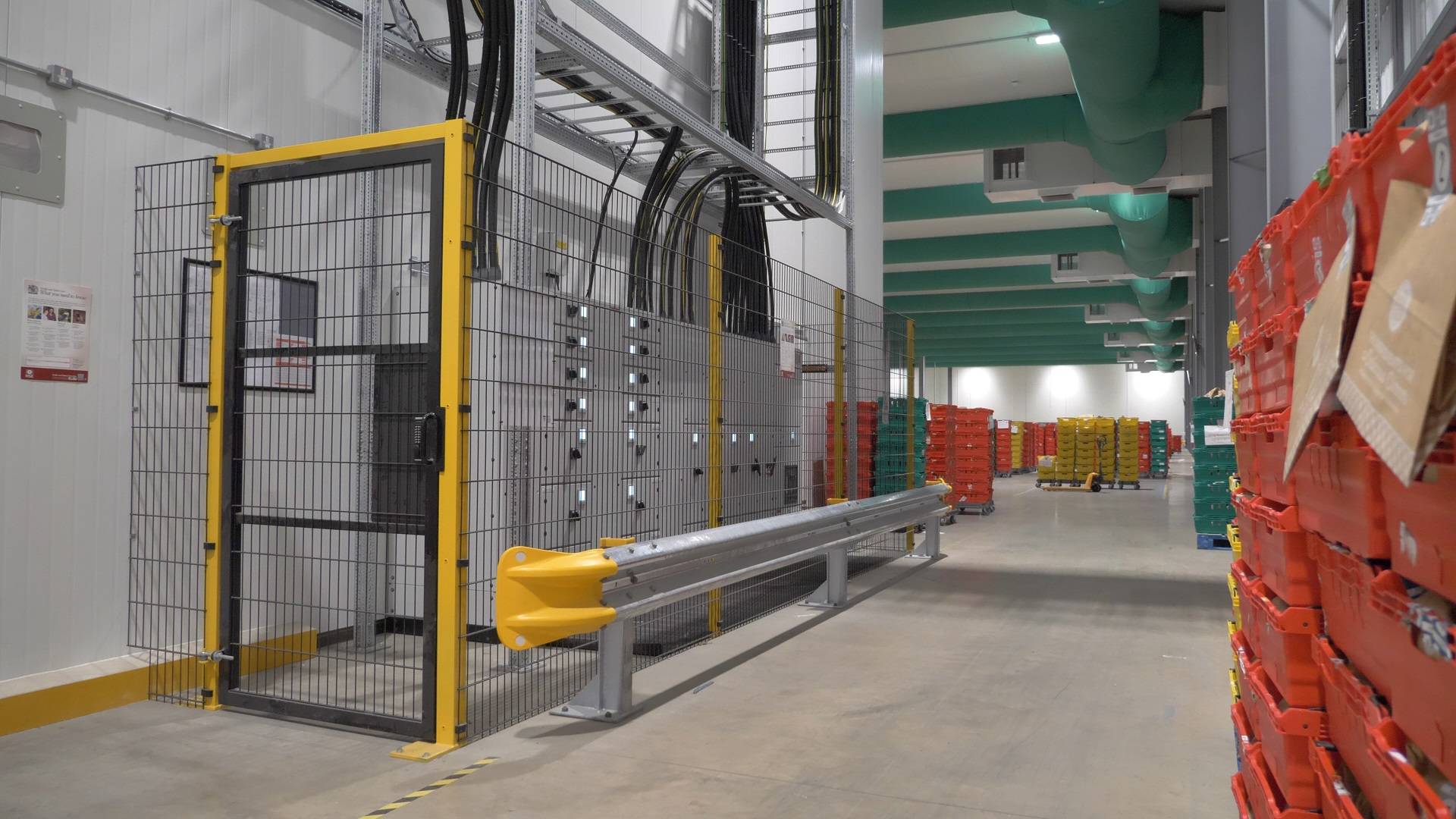

- Protecting critical equipment and machinery from accidental collisions.
- Enhancing workplace safety by preventing unauthorized access to restricted areas.
Description
Bolt-down Armco Safety Barriers in various heights prevent forklift fork penetrations and pallet impact. The Brandsafe Armco Safety Barrier is a cost-effective solution for wall and equipment protection, keeping traffic away and pedestrians safe. It offers visual safety, reduced footprint, and versatile configurations with optional handrails and polymer safety ends.
Features & benefits:
- High visibility corners & terminals - yellow or black.
- Reduced 360mm height, 265mm depth.
- Post centres of 1.6m or 3.2m for different impact areas.
- Galvanised M16 floor anchors and bolt sets.
- Optional handrail extensions with polymer Armco safety ends.
- Pedestrian handrail options available on request.
General information
Color | Yellow Black Silver |
Finish | Galvanized |
Material | Steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q41/170 Vehicle safety fences – metal Q41/170 Vehicle safety fences – metal Q41/135 Proprietary protective barriers Q41/135 Proprietary protective barriers |
Specification data - Metal post and rail barrier systems
Standard | BS EN ISO-1461. |
Posts | Consult manufacturer. |
Post foundations | Consult manufacturer. |
Base boards | Consult manufacturer. |
Rails | Consult manufacturer. |
System accessories | 1100 mm Handrails.Fork containment angle 50 x 50 mm with M12 Floor Anchors.Twin Force (Flexi Post) for high risk, 90 degree impact zones, potted (Cast-In) posts |
Post centres | 3200 mm. 1600 mm. Manufacturer guidancePost centres for high and low impact areas. |
Colour: | Yellow, black end terminals. |
Barrier type | Four rawl heavy duty floor anchors. M16 floor anchors and bolt sets (galvanized). |
Product Reference | Bolt Down Armco Barrier 360 Guidance for specification option: Bolt down barrier with 360 mm height Bolt Down Armco Barrier 560–610 Guidance for specification option: Bolt down barrier with 610 mm height Bolt Down Armco Barrier 760 Guidance for specification option: Bolt down barrier with 760 mm height Bolt Down Armco Barrier 760 Double Guidance for specification option: Bolt down double barrier with 760 mm height Bolt Down Armco Barrier 760–1100 Double + Handrail Guidance for specification option: Bolt down double barrier with 760 mm height and handrail |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

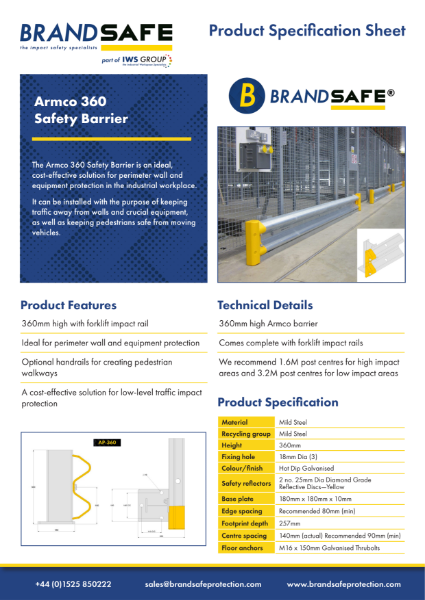

Armco Safety Barrier Systems - Brandsafe Spec Sheet
