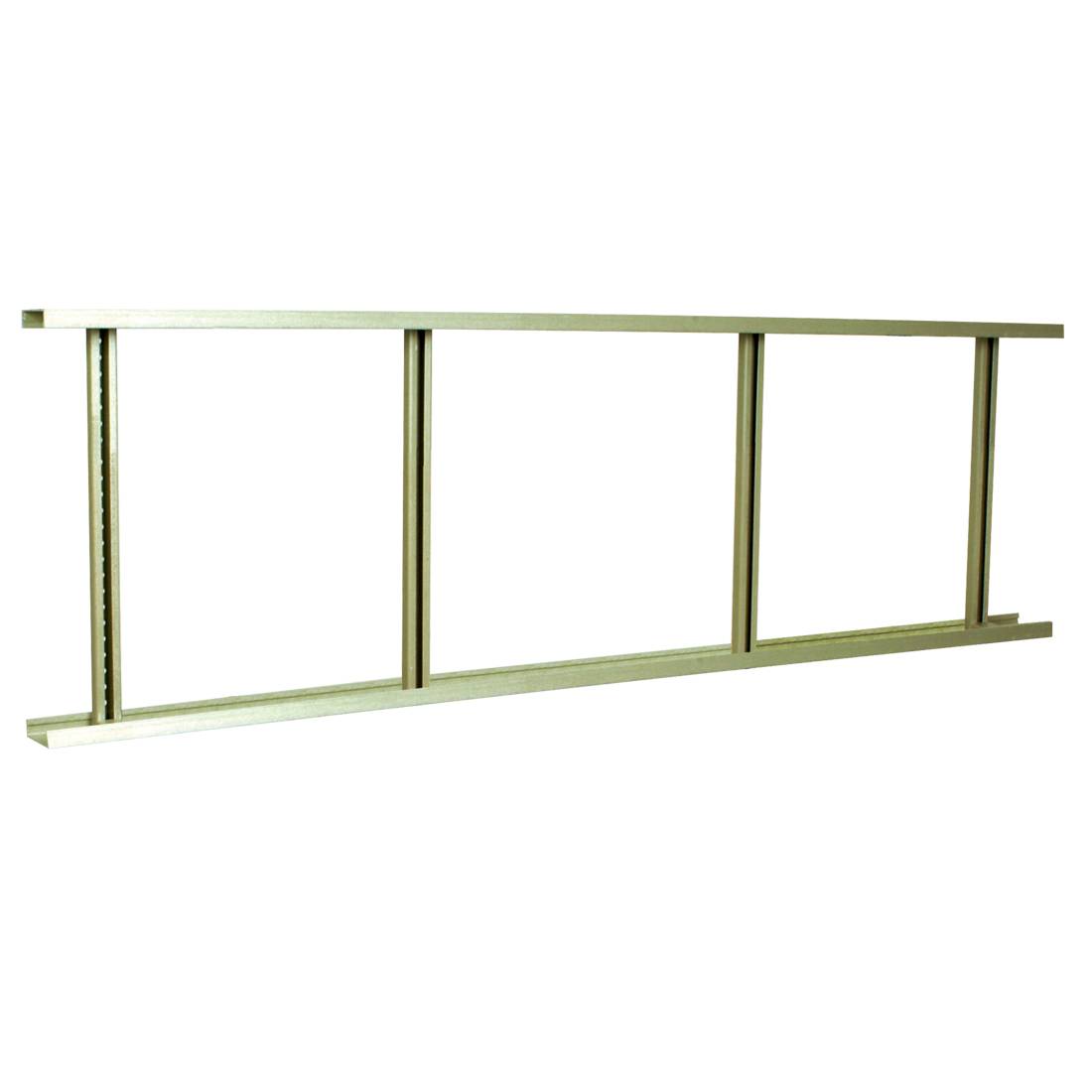

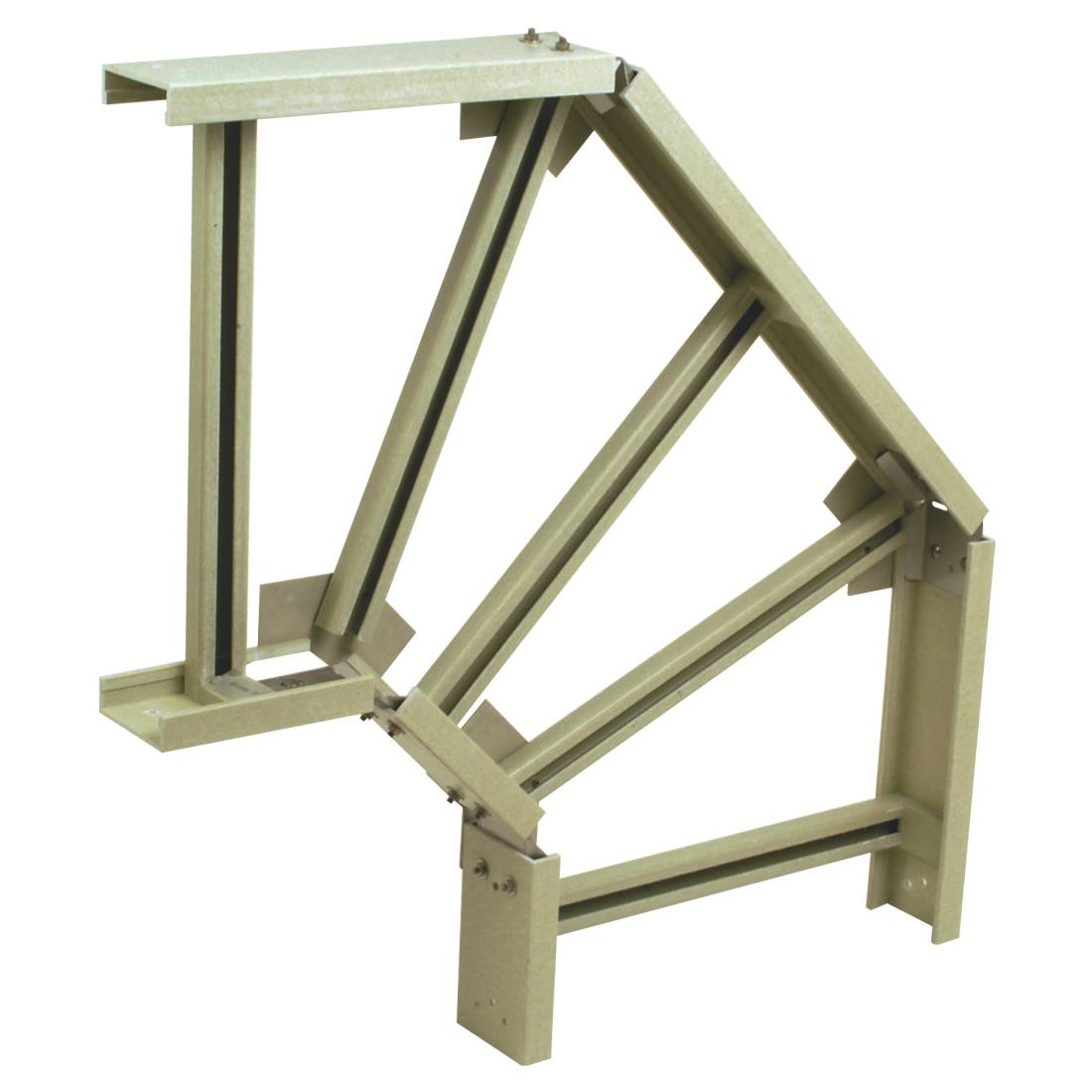

GRP Cable Ladder - Cable Ladder.
Verified by manufacturer 1 day ago
Press Type Resin R96
Press Type Resin R96
Glass reinforced plastic (GRP) cable ladder system manufactured by pultrusion, available in a variety of sizes and easy to cut and drill for fast installation with fewer fasteners.
Application
The system is particularly suitable for installation into tunnels, bridges, railways, underground, offshore and marine environments.
Description
Glass reinforced plastic (GRP) cable ladder system manufactured by pultrusion, available in a variety of sizes and easy to cut and drill for fast installation with fewer fasteners.
Features and benefits:
- A variety of sizes from 200 x 53 mm to 900 x 150 mm.
- 2.5 times lighter than steel.
- Completely corrosion resistant against salt spray, H25, acid build up from exhaust gases and brake dust along roads and railways.
- No need for painting or protective coating.
- Classified LS0H material.
- Self-extinguishing.
- Low conductivity.
- Earthing not required.
- Antimagnetic and resistant to electromagnetic pulses.
- Effective at temperatures between -80˚C to +130˚C.
- Lower life cycle cost.
- Fast installation with fewer fasteners.
- Easy to cut and drill.
- Load characteristics in accordance with IEC 61537.
General information
Color | Grey |
Finish | Smooth |
Material | Glass Reinforced Plastic (GRP) |
Shape | Rectangle |
Length | 3000 mm |
Width | 150 mm 200 mm 300 mm 400 mm 600 mm |
Height | 53 mm 80 mm 100 mm |
Uniclass | |
CAWS | V90/330 Cable trays |
Specification data - Cable ladders
Classification data | |
Standard | To BS 7671. |
Material | GRP. |
Resistance against flame propagation | To BS 476:6, 18.3. |
Mechanical properties | |
Resistance to impact | Up to 20 J. Guidance for specification option: IK10. |
Width | 200 mm. 150 mm. 300 mm. 400 mm. 600 mm. 900 m. |
Features | |
Protective cover | Not required. Required. Guidance for specification option: Various covers available; consult manufacturer's literature for more details and insert requirements. |
Fire performance | Inflammability to IEC 695-2-1, 960°C and UL 94, V0. Flammability to NF P 92-507. Spread of flame to ASTM E84, 35 and BS 476:7, Class 2. Oxygen and smoke index to NF F 16-101, >32 (I2), >32 (F0). Smoke to BS 6853 App 52, 10.47/ 11.23. Oxygen index to ASTM D 2863, >35%. Fire Protection index to EMPA 5.3. Fire resistance of cable to IEC 332-3, Passed. |
Reaction to fire | To DIN 4102, B2. |
Technical characteristics, other | Choc resistance to DIN 53453, 27 kJ/mm²; IPxx7. Heat resistance to VSM 77116 (Martens Point), -90°C. Accelerated aging to ISO 4892-2 (mechanical UV resistance), Excellent. Degree of protection to NF EN 50102 (Degree of Protection against mechanical impact), IK10. Surface resistivity to DIN 53482 and EN 50014, ~10¹² Ω. Volume resistivity to DIN 53482, ~10¹³ Ωm. Breakage Voltage to IEC 243-1, >15 kV/mm. |
Tensile strength | To DIN 53455 and ISO 527, 37 MPa. Manufacturer guidanceTensile strength at breaking point. |
Modulus of elasticity | To DIN 53457 and ISO 527-4, 5000–7000 MPa. |
Colour | RAL 7032. Guidance for specification option: Standard colour. |
Sustainability data
Country of material origin | France |
Country of product manufacture | France |
Material | Glass Reinforced Plastic (GRP) |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Literature type
DOC02285GRP-LADDER
GRP Cable Ladder Catalogue
GRP Product Catalogue
Similar products from Marshall-Tufflex Ltd

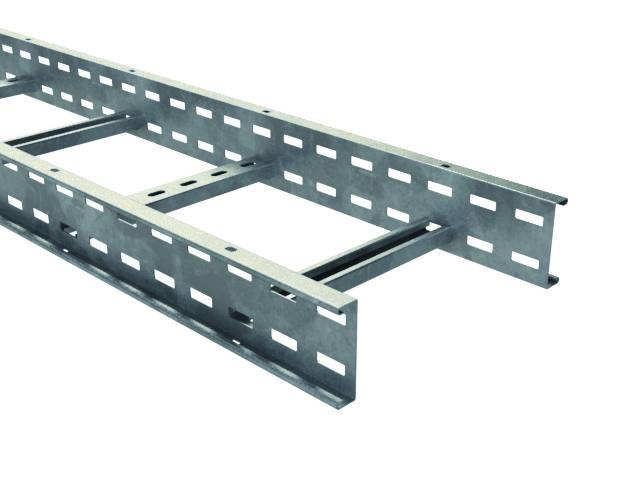

Metal Cable Ladder - Cable Ladder
