Metal Cable Ladder - Cable Ladder
Verified by manufacturer 2 days ago
Ladder 75 mm High - 1.5 mm Gauge
Ladder 75 mm High - 1.5 mm Gauge

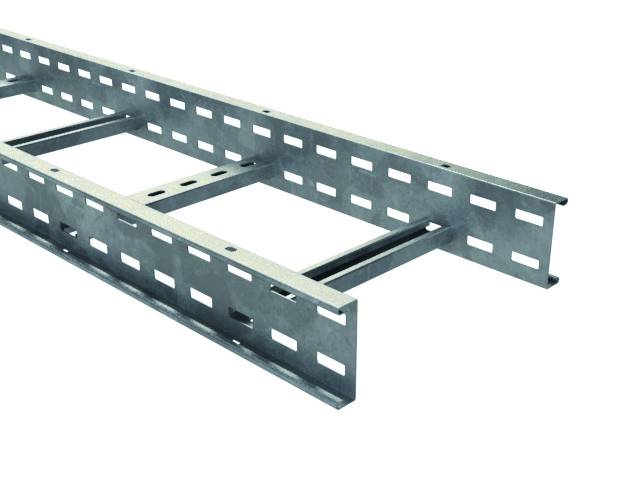

Basor metal cable ladders for routing heavy duty cables, complete with perforated side panels for ventilation and available in a range of gauges and widths.
Application
Metal cable ladder is suitable for use in heavy industry environments such as power plants, airports, tunnels, bridges, railways and underground environments.
Description
Basor metal cable ladder for routing heavy duty cables in large areas that have wide spacing between supports. The perforated side panels allows for ventilation in the event a cover is installed. In addition, the side panel enables installation in situations where cutting on-site is required, as there is no need to drill rail to assemble the joint.
Features and benefits:
- Product widths from 100–900 mm.
- Product heights of 75, 100, 125 and 150 mm.
- Greater load capacity due to rail design.
- Safety edge that provides increased strength and protection for installers.
- Strut-type rungs 41 x 21 mm.
- Hot dip galvanized steel finish.
- Perforated side panel.
- Compatible with and fixable to the manufacturer's range of metal strut and suspension systems.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle |
Length | 3000 mm |
Width | 100 mm 150 mm 300 mm 450 mm 600 mm |
Height | 75 mm 100 mm 125 mm 150 mm |
Uniclass | |
CAWS | V90/330 Cable trays |
Specification data - Cable ladders
Classification data | |
Standard | To EN 61537 and EN 50085. |
Material | 1.5 mm gauge low carbon steel. |
Coating material | Hot dipped zinc coated. |
Temperature properties for transport, storage, installation and application | |
Minimum | -50°C. |
Maximum | +150°C. |
Mechanical properties | |
Resistance to impact | Up to 20 J. Guidance for specification option: IK10. |
Width | 100 mm. 150 mm. 300 mm. 450 mm. 600 mm. 750 mm. 900 mm. |
Features | |
Protective cover | Nor required. Ladder cover - 1.5 mm gauge. Guidance for specification option:
Insert requirements. |

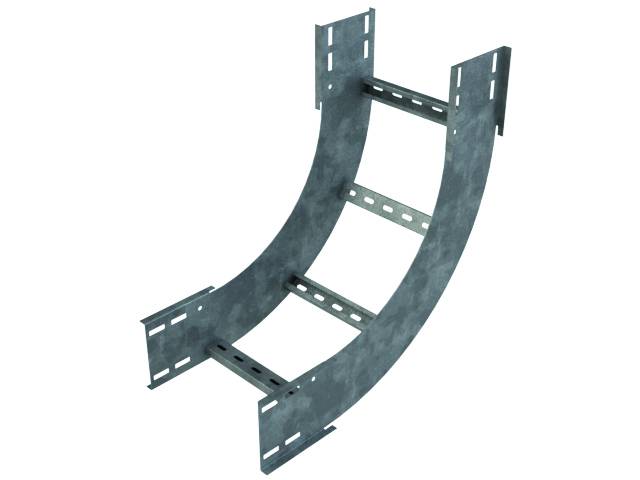

Special shapes | 90 degree flat bend. 45 degree flat bend. Inside riser. Outside riser. Tee. Cross. Not required. Manufacturer guidanceAvailable in widths from 100–900 mm and either 75 or 150 mm heights. Consult manufacturer's literature for details on sizes and insert requirements. |
Accessories | Not requried. Union joint. Knuckle joint. Hinge joint. Flange clamp. Rising gripper. Hold down bracket. GC nuts and bolts. Manufacturer guidanceConsult manufacturer's literature for size options and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Steel |
Recyclability | 100 |
Literature
Literature type
Metal Ladder Catalogue
DOC03883125mm
DOC03882100mm
DOC03884150mm
DOC0388175mm
