Ground Level Vent Box - CGV-017
Verified by manufacturer 4 months ago
External ground level vent box used to provide safe passage of ground gases from beneath a building to the atmosphere. Available with a range of different lid types and finishes.
Application
Designed to provide a method of venting ground gases from beneath a building, to the external atmosphere. The use of vent box is recommended where the use of alternative vent options is precluded due to the type of external wall construction i.e. cladding, glazed façades.
Description
A ground level vent box without a lid designed to be connected to one of the Cordek passive gas venting systems and installed within the external landscaping.
Features and benefits:
- Various different vent box dimensions and geometries.
- Range of lid types, manufactured from either stainless or galvanized steel.
- Vent box lids available with either perforations or slots to suit project requirements and venting design.
- Supported by full range of accessories to provide robust connection to Cordek venting system.
- Side connection into vent box prevents surface water from entering the gas inlet.
- Removable mesh over drain outlet to prevent blockage by debris.
- Include base connection to stormwater collection, land drainage or soakaway system.
General information
Color | Black |
Material | High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 500 mm |
Width | 150 mm |
Height | 275 mm |
SKU Code | CGV-017 |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 5 |
Literature
Literature type
Cordek VOC & Ground Gas Brochure

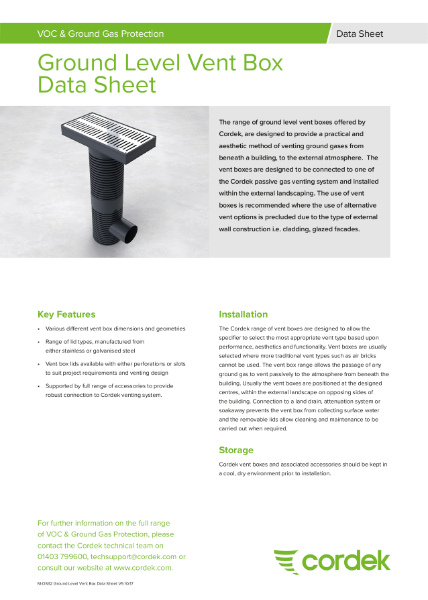

Cordek Ground Level Vent Box Data Sheet
