GP® Vent Box & Accessories
Verified by manufacturer 5 months ago
Ground level ventilation unit.
Application
Designed to work in combination with Juta Void Vent products- to be installed with external landscaping.
Description
Ground level ventilation unit, designed to work in combination with Juta Void Vent products.
Features and benefits:
- Provides passive inflow and outflow of air and ground gas.
- Practical and aesthetic methods of venting ground gases from beneath a building are provided to the external atmosphere.
- Pipework supplied as a Modular system so that the final configuration can be adapted to suit specific depths, varying inlet levels and base requirements for sealed or soakaway outlets.

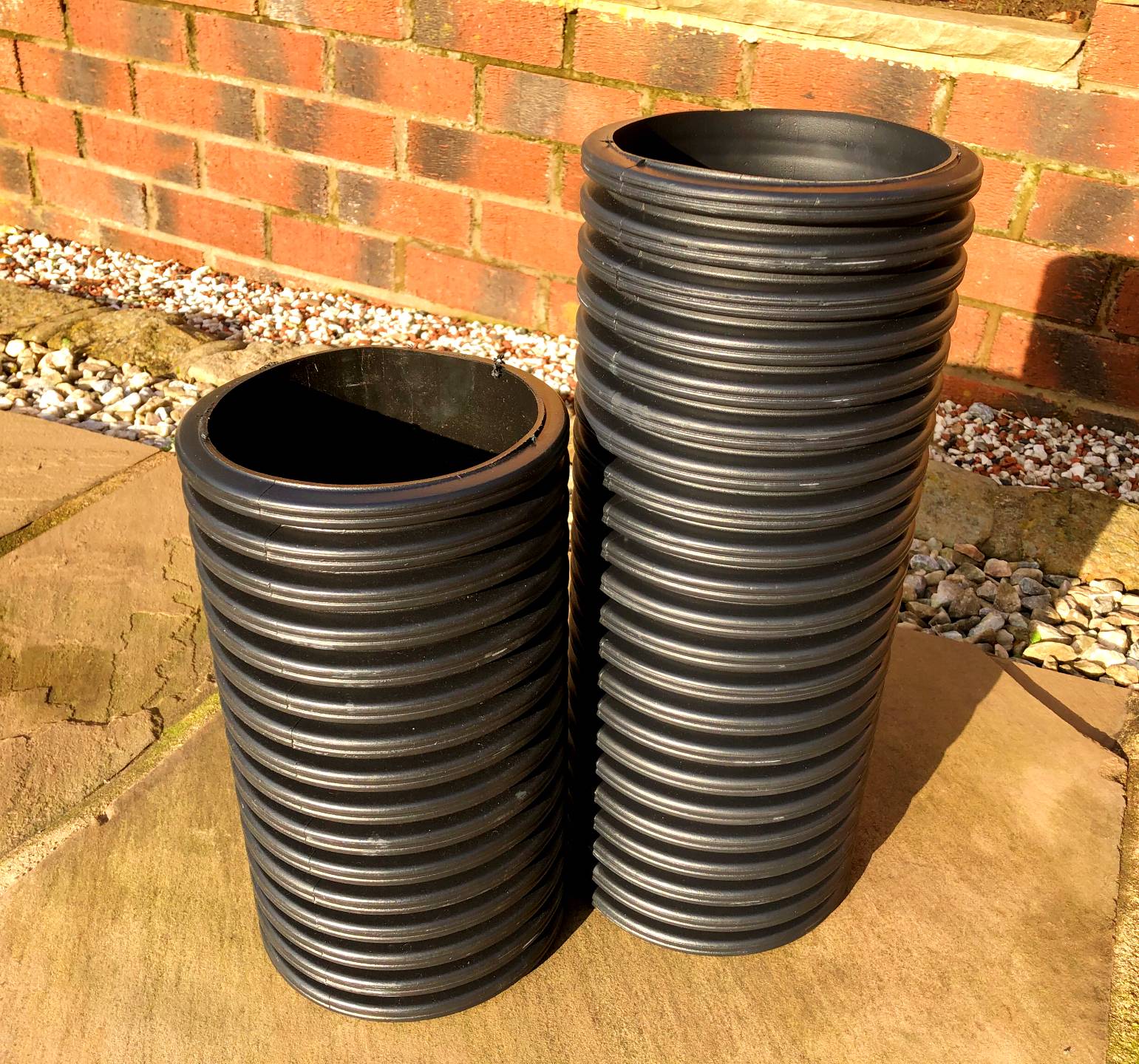

- Circular vent cover and rectangular vent cover: Stainless steel; Vent box pipe work: Plain HDPE/PVC-U or twin wall.

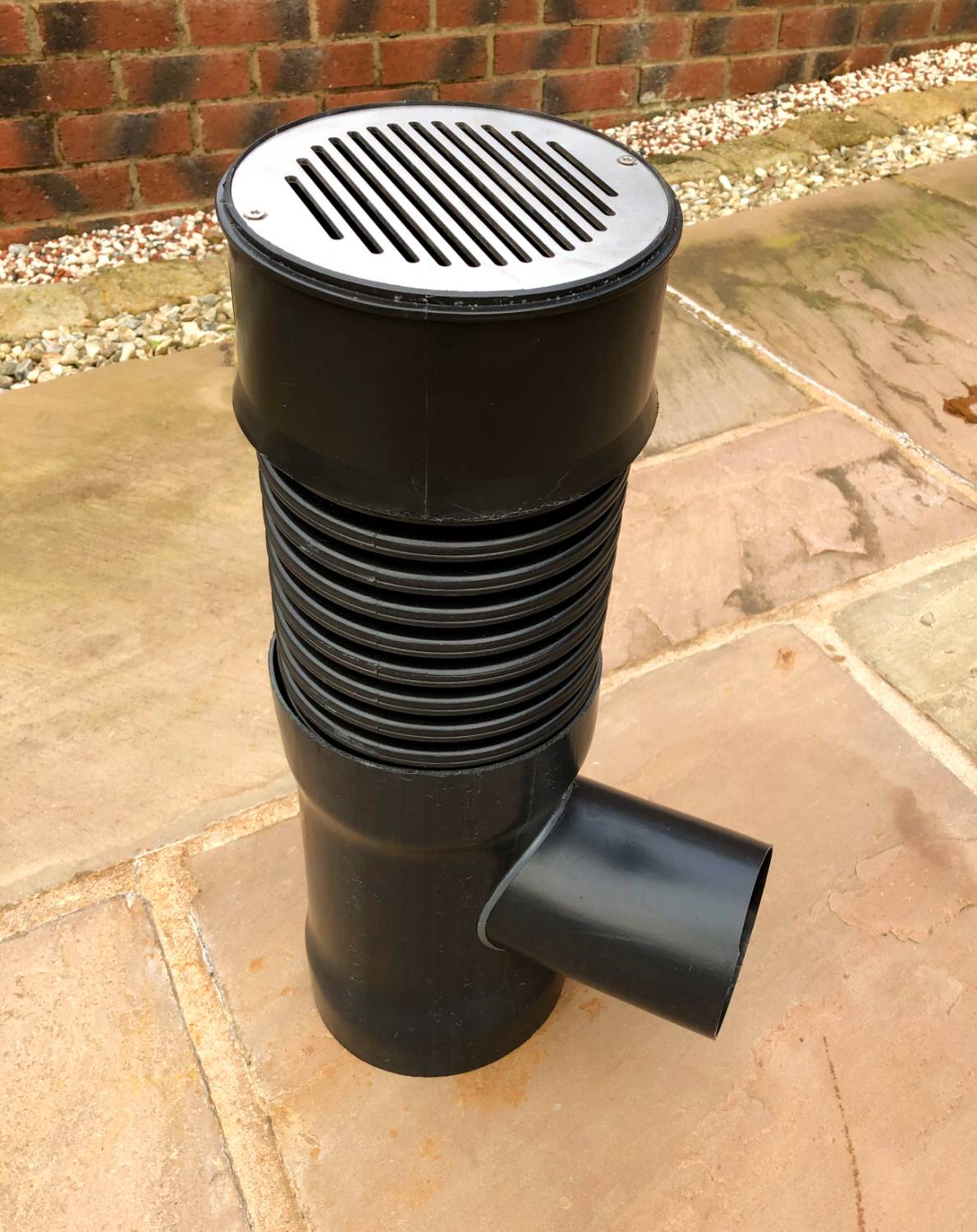

- Circular Vent Cover: Dimensions 195 mm OD, Perforation Area 18,000 mm², Regular Vent Cover: Dimensions 420 mm x 230 mm OD, Perforation Area 18,000 mm², Vent Box Pipe Work: Diameter 150 mm ID, Intlet Diameter 110 mm OD.
General information
Color | Black |
Finish | Smooth |
Material | PVC-U Stainless steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 60 year |
Uniclass | |
CAWS | D21/42 Wall vent outlets D21/395 Ground-level vent outlets |
Specification data - Ground gas collection and venting systems
Gas collection | |
Collection pipework | Modular system so that the final configuration can be adapted to suit specific depths, varying intlet levels and and base requirements for sealed or soakaway outlets. |
Product Reference | GP Vent Box & Accessories |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Fully Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

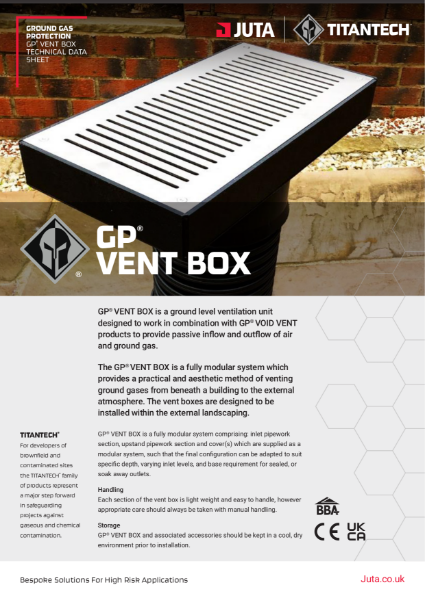

JUTA GP® Vent Box & Components

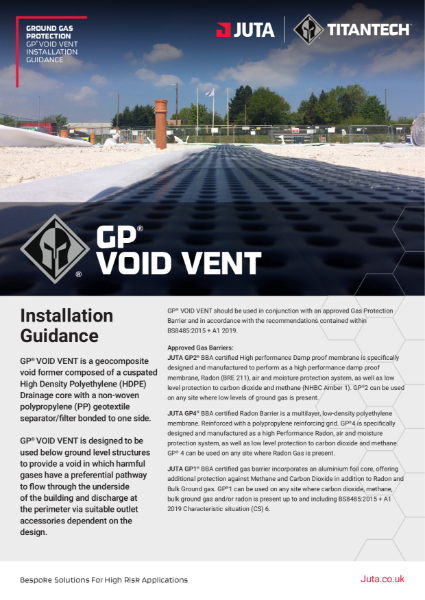

JUTA UK GP Void Vent & Vent Box Installation Guidance
