Glidevale Protect MV255 Straight Sleeve - Underfloor ventilation
Verified by manufacturer 2 months ago

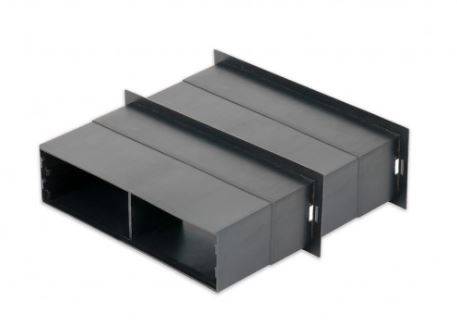

Straight cavity sleeve attaches to the MV250 Airbrick to ventilate the subfloor void.
Application
Attaches to MV250 Airbrick for straight through-wall applications.
Description
A range of underfloor, through-wall and cavity wall ventilation products that meet the requirements of the regulations and provide protection against driving rain, birds, rodents and large insects.
Features and benefits:
- Attaches to MV250 Airbrick for straight through-wall applications.
- Works in wall thicknesses from 258 to 305 mm.
- Compatible with MV253 Vent Pipe Adaptor.
General information
Color | Black |
Finish | Smooth |
Material | Polypropylene |
Shape | Rectangle |
Length | 200 mm |
Width | 225 mm |
Height | 65 mm |
Uniclass | |
CAWS | F30/171 Ventilation ducts in external walling F30/17 Ventilation ducts in external walling |
SKU Code | GVMV255 |
Specification data - Ventilation ducts
Classification data | |
Material | Polypropylene. |
WallThickness | 258—305 mm. |
Dimensions | 200 x 225 x 65 mm. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Glidevale Protect Underfloor & Cavity Wall Vents
