Glidevale Protect MV254 Vertical Adaptor - Underfloor Ventilation
Verified by manufacturer 5 months ago

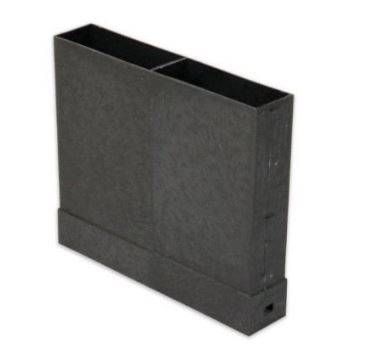

Vertical adapter to increase depth of the MV251 Periscope where ventilating a sub floor void.
Application
Fits between the two halves of the Glidevale Protect MV251 Periscope to increase the overall depth adjustment up to 5 to 6 brick courses. Use with the MV251 Periscope and MV250 Airbrick, can be stacked with multiple units.
Description
Vertical attachment for the MV251 Periscope to increase its height by up to six brick courses. Glidevale Protect have a range of underfloor, through-wall and cavity wall ventilation products that meet the requirements of the regulations and provide protection against driving rain, birds, rodents and large insects.
Features and benefits:
- Fits between the two halves of the MV251 Periscope to increase the overall depth adjustment up to five to six brick courses.
- Modular design allows additional units to be used for even greater depths.
- Simple 'snap-on' connection.
General information
Color | Black |
Material | Polypropylene |
Shape | Rectangle |
Length | 210 mm |
Width | 40 mm |
Height | 180 mm |
Uniclass | |
CAWS | U90/340 Through wall ventilator ducts U90/340 Through wall ventilator ducts F30/171 Ventilation ducts in external walling F30/17 Ventilation ducts in external walling |
Specification data - Ventilation ducts
Material | Polypropylene. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Glidevale Protect Underfloor & Cavity Wall Vents
