GlasMax SR
Verified by manufacturer 3 months ago
Air slot 10 mm
Air slot 10 mm

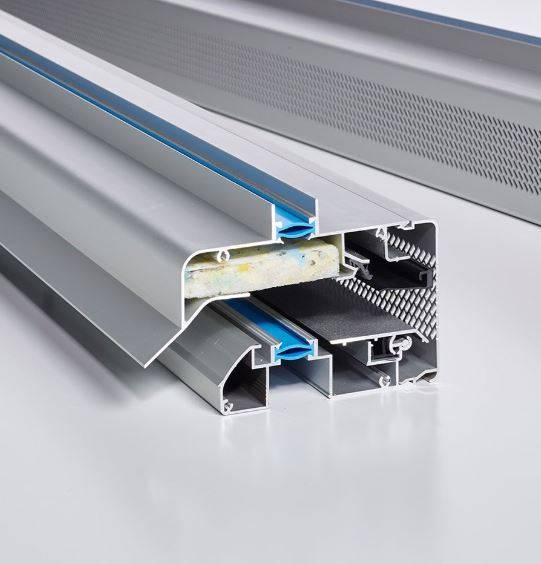

Sound-absorbing window ventilator that has been developed for fitting over the glass, transom mounting and compact transom mounting.
Application
Suitable for use with aluminium, PVC or timber windows.
Description
A sound-absorbing window ventilator that has been developed for fitting over the glass, transom mounting and compact transom mounting. The acoustic ventilator is suitable for use in situations where light noise exposure is an issue.
Features and benefits:
- Window ventilator with sustainable sound-absorbing material.
- Sound-absorbing material helps prevent complaints due to allergies.
- Suited to high-rise applications (up to 40 m height).
- Four different air flow rates.
General information
Color | Manufacturer guidanceRange of colours available in either anodized or RAL. |
Finish | Anodized Guidance for specification option: Standard natural colour (clear anodizing). Powder-coated Guidance for specification option: Standard RAL colours with 70% gloss. |
Material | Aluminium Plastic Guidance for specification option: Plastic thermal bridge top and bottom. |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/33 Proprietary windows L10/25 Aluminium windows L10/10 Wood windows L10/15 Wood windows L10/400 Composite windows L10/390 Proprietary windows L10/330 Aluminium windows L10/210 Wood windows |
Specification data - Trickle vents
Operation | Handle.Cord.Rod. |
Equivalent area (minimum) | 20 233 mm²/m.Guidance for specification option: @ 1 Pa. |
Material | Aluminium.Guidance for specification option: Plastic thermal bridge top and bottom. |
Colour | RAL.Guidance for specification option:
|
Execution | Fasteners for hardware. |
Installation | Compact transom mounting. Fitting over the glass. Guidance for specification option: Insert glazing thickness, suitable for 26, 30, 34 and 38 mm thicknesses. Transom mounting. Guidance for specification option: Insert size requirement, consult manufacturer's literature for information. |
Free area | 10 000 mm²/m. Manufacturer guidanceGeom. free area. |
Wind load resistance | Class 3 (600 Pa). Guidance for specification option: In closed position. |
Watertightness | Class E1050 (1050 Pa). Guidance for specification option: In closed position. |
U-value | 1.56 W/m²K. |
Length | 4000 mm. Guidance for specification option: Transom/compact transom. 2500 mm. Guidance for specification option: Glazed-in. Manufacturer guidanceMaximum flap length : 2000 mm. |
Height | 97 mm. Guidance for specification option: For compact transom installation. Manufacturer guidanceVentilator height. |
Air flow | 65.6 m³/h/m. Guidance for specification option: @ 2 Pa. |
Sound reduction | 37 (-1;-3) dB. Guidance for specification option: Dne,W (C;Ctr) in open position. |
Sustainability data
Material | Aluminium Plastic Guidance for specification option: Plastic thermal bridge top and bottom. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
