GEZE Slimdrive SL NT - Automatic Sliding Door

Name: GEZE Slimdrive SL NT - Automatic Sliding Door
Brand: GEZE UK Limited
SKU: cRGtSR2r23e1iM6SQwjbBN

Verified by manufacturer 2 months ago

GEZE aluminium door leaf

GEZE UK Limited

Automatic linear sliding door system with low overall height and clear design line.

Jump to:

+44 (0)1543 443000 Website

Application

Application areas:

Single and double leaf sliding door systems.
Interior and exterior doors with high access frequency.
Facades with slim post-rail constructions.
Glass facades with the highest design standards.
Suitable profile systems include GEZE aluminium doors, ISO fine-framed doors and AP doors, and on-site frame and wooden leaves by others.

Description

Automatic linear sliding door system with low overall height and clear design line.

Features and benefits:

Very quiet running, low-wear direct current drive with a height of only 7 cm.
Can be networked, and integrated into the building automation via open standard (BACnet).
Independent error recognition and recording.
Freely configurable inputs and outputs for different functions.
Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure.
Self-cleaning roller carriage reduces maintenance effort and costs.
Various mechanical and electrical locks are optionally available.
Opening widths from 700 to 3000 mm possible.
Door leaf weights of up to 125 kg per leaf.

General information

Color	Silver Other
Finish	Anodized Powder-coated
Material	Aluminium
Shape	Rectangle
Width	700 mm Guidance for specification option: Minimum opening width. 3000 mm Guidance for specification option: Maximum opening width.
Height	3000 mm Guidance for specification option: Maximum.

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS	L20/55 Doorsets L20/490 Automatic doors

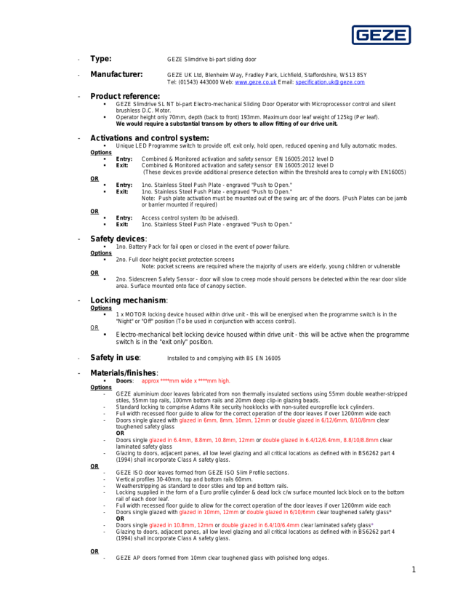

Specification data - Sliding door and partition sets

Performance	Internal.

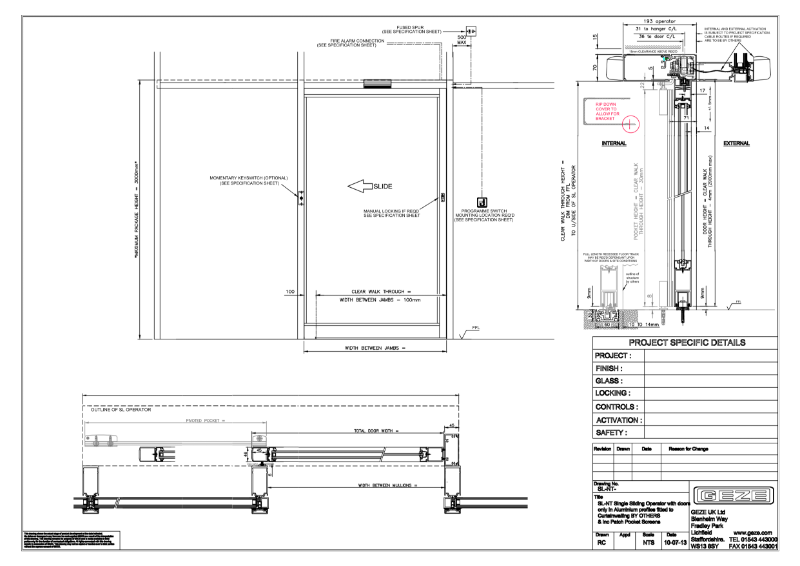

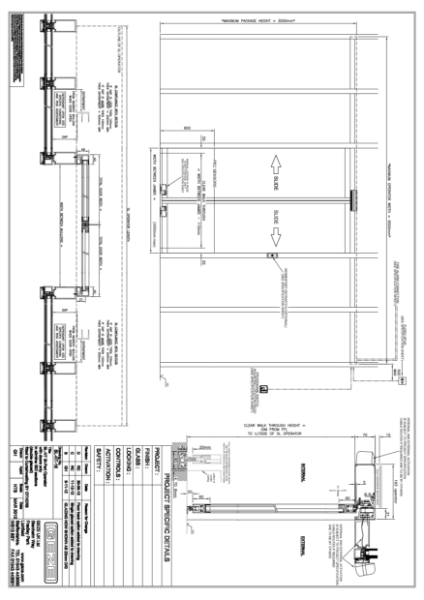

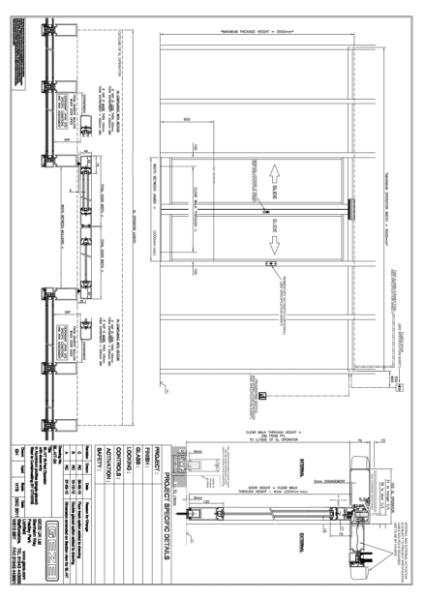

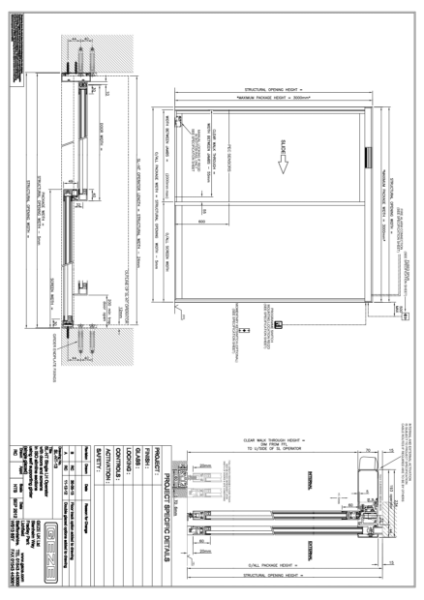

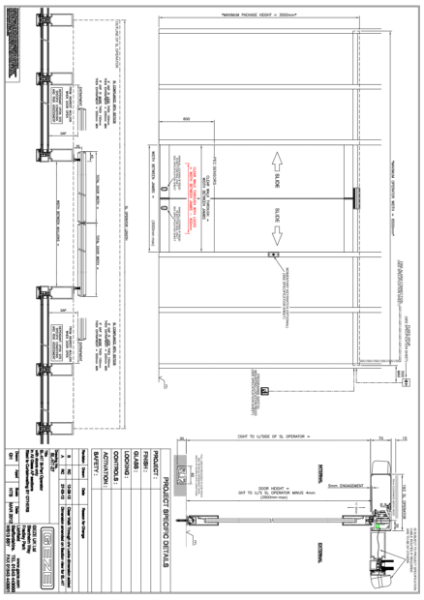

Arrangement	Single-leaf sliding door. Bi-part sliding door.
Door leaves	-
Construction	GEZE aluminium door leaf fabricated from non-thermally insulated sections. Guidance for specification option: 55 mm double weather-stripped stiles, 55 mm top rails, 100 mm bottom rails and 20 mm deep clip-in glazing beads.
Finish and colour	Silver anodised (EV1). Powder-coated, RAL. Manufacturer guidance All visible surfaces - operator cover and door frames.
Operation	Powered. Guidance for specification option: Electro-mechanical sliding door operator with microprocessor control and brushless d.c. motor.
Hardware	Adams Rite security hooklocks with non-suited europrofile lock cylinders.
Accessories	Standard signage to EN 16005.

Activation and control system	Entry and exit: Combined and monitored activation and safety sensor EN 16005:2012 level D. Guidance for specification option: These devices provide additional presence detection within the threshold area to comply with EN 16005. Entry and exit: 1no. Stainless Steel Push Plate - engraved "Push to Open." Entry: Access control system (to be advised); Exit: 1no. Stainless Steel Push Plate - engraved "Push to Open." Manufacturer guidance Note: Push plate activation must be mounted out of the swing arc of the doors. (Push Plates can be jamb or barrier mounted if required.)
Locking mechanism	1 x Motor locking device housed within drive unit. Guidance for specification option: This will be energised when the programme switch is in the "Night" or "Off" position. (To be used in conjunction with access control). Electro-mechanical belt locking device housed within drive unit. Guidance for specification option: This will be active when the programme switch is in the "exit only" position.
Power failure	1no. Battery pack for fail open or closed in the event of power failure.
Safety devices	Full door height pocket protection screens: Aluminium framed protection screen. Guidance for specification option: Fabricated from non-thermally insulated sections using 55 mm stiles, 55 mm top rails, 100 mm bottom rails and 20 mm deep clip-in glazing beads. Glazed in 6.4 mm clear laminated safety glass. Pivoted to allow cleaning and maintenance from the sliding operator via a fully retractable top centre and fully adjustable bottom pivot, normally held closed by Euro profile cylinder deadlock located within the bottom rail. Full door height pocket protection screens: Patch fitting protection screen. Guidance for specification option: Formed from 10 mm clear toughened glass with polished edges. Each panel fitted with top and bottom pivot patches and corner patch. Pivoted to allow cleaning and maintenance from our sliding operator via a fully retractable top centre and fully adjustable bottom pivot, normally held closed by a retractable bolt in the corner patch. Full door height pocket protection screens: AP protection screen. Guidance for specification option: Formed from 10 mm clear toughened glass with polished long edges. Each panel fitted with GEZE 75 mm or 100 mm full width top and bottom rails. Sidescreen safety sensor. Guidance for specification option: Door will slow to creep mode should persons be detected within the rear door slide area. Surface mounted onto face of canopy section. Pocket by others. Guidance for specification option: Consult manufacturer for details.
Power supply	1 no. 240 V 13A switched spur. Guidance for specification option: Positioned above operator by others (the location should be within 1 metre of the operator to the left hand as viewed internally looking at the operator cover). Connection to the fire alarm system (if required) would require one pair of normally open volt free contacts to be supplied terminating at drive unit location by others. Any concealed containment (inc. draw wires) must be undertaken by others. Cabling to activation devices will otherwise be fitted by GEZE in surface mini trunking at a minimum distance to suit industry standards.
Mode of operation	LED programme switch to provide off, exit only, hold open, reduced opening and fully automatic modes.
Glazing	Single glazed 6 mm clear toughened safety glass. Single glazed 8 mm clear toughened safety glass. Single glazed 10 mm clear toughened safety glass. Single glazed 12 mm clear toughened safety glass. Double glazed in 6/12/6 mm clear toughened safety glass. Double glazed in 8/10/8 mm clear toughened safety glass. Single glazed 6.4 mm clear laminated safety glass. Single glazed 8.8 mm clear laminated safety glass. Single glazed 10.8 mm clear laminated safety glass. Single glazed 12 mm clear laminated safety glass. Double glazed in 6.4/12/6.4 mm clear laminated safety glass. Double glazed in 8.8/10/8.8 mm clear laminated safety glass. Show more
Floor guide	Not required. Full width recessed floor guide. Guidance for specification option: To allow for the correct operation of the door leaf if over 1200 mm wide each.
