GEZE Slimdrive SL NT PAS24 Sliding Doors
Verified by manufacturer 2 months ago
Automatic linear PAS24 sliding door system with low overall height and clear design line.
Application
Application areas:
- Single and double leaf sliding door systems.
- Interior and exterior doors with high access frequency.
- Facades with slim post-rail constructions.
- Glass facades with the highest design standards.
- Automation and aluminium sliding doors form a complete certified PAS24 automatic sliding door system.
Description
Automatic linear sliding door system with low overall height and clear design line. Fully tested and certified by UKAS accredited certification body to ensure compliance with PAS 24:2016.
Features and benefits:
- Very quiet running, low-wear direct current drive with a height of only 7 cm.
- Can be networked, and integrated into the building automation via open standard (BACnet).
- Independent error recognition and recording.
- Freely configurable inputs and outputs for different functions.
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure.
- Self-cleaning roller carriage reduces maintenance effort and costs.
- Various mechanical and electrical locks are optionally available.
- Opening widths from 900 to 3000 mm possible.
- Maximum door height 2900mm.
- Door leaf weights of up to 125 kg per leaf.
General information
Color | Silver Other |
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Width | 900 mm Guidance for specification option: Minimum opening width. 3000 mm Guidance for specification option: Maximum opening width. |
Height | 2900 mm Guidance for specification option: Maximum. |
Warranty description | One year Manufacturer guidanceOn year warranty as standard, please contact manufacturer to discuss bespoke warranty options |
Uniclass | |
CAWS | L20/55 Doorsets L20/490 Automatic doors |
Specification data - Sliding door and partition sets
Performance | Internal. |
Arrangement | Single-leaf sliding door.Bi-part sliding door. |
Door leaves | |
Construction | GEZE aluminium door leaf fabricated from non-thermally insulated sections using 65 mm (leading edge), 70 mm (back edge) double weather-stripped stiles, 100 mm top rails, 100 mm bottom rails and 20 mm deep clip-in glazing beads. |
Finish and colour | Silver anodized (EV1).Powder-coated, RAL.Manufacturer guidanceAll visible surfaces - operator cover and door frames. |
Operation | Powered.Guidance for specification option: Electro-mechanical sliding door operator with microprocessor control and brushless d.c. motor. |
Accessories | Standard signage to EN 16005. |
Activation and control system | Entry: Access control system (to be advised); Exit: One Stainless Steel Push Plate - engraved 'Push to Open'. One Green resettable break glass unit - for emergency egress. Manufacturer guidanceNote: Push plate activation must be mounted out of the swing arc of the doors. (Push Plates can be jamb or barrier mounted if required.) |
Locking mechanism | Motor locking device housed within drive unit. |
Power failure | Battery pack in the event of power failure. |
Safety devices | Full door height pocket protection screens: Aluminium framed protection screen. Guidance for specification option: Fabricated from non-thermally insulated sections using 55 mm stiles, 55 mm top rails, 100 mm bottom rails and 20 mm deep clip-in glazing beads. Glazed in 6.4 mm clear laminated safety glass. Pivoted to allow cleaning and maintenance from the sliding operator via a fully retractable top centre and fully adjustable bottom pivot, normally held closed by Euro profile cylinder deadlock located within the bottom rail. Full door height pocket protection screens: Patch fitting protection screen. Guidance for specification option: Formed from 10 mm clear toughened glass with polished edges. Each panel fitted with top and bottom pivot patches and corner patch. Pivoted to allow cleaning and maintenance from our sliding operator via a fully retractable top centre and fully adjustable bottom pivot, normally held closed by a retractable bolt in the corner patch. Full door height pocket protection screens: AP protection screen. Guidance for specification option: Formed from 10 mm clear toughened glass with polished long edges. Each panel fitted with GEZE 75 or 100 mm full width top and bottom rails. Sidescreen safety sensor. Guidance for specification option: Door will slow to creep mode should persons be detected within the rear door slide area. Surface mounted onto face of canopy section. Pocket by others. Guidance for specification option: Consult manufacturer for details. Manufacturer guidanceSelect from one of the five options below. |
Power supply | Doors and locks to remain operationally functional. Guidance for specification option: Doors and locks to remain operationally functional with 1 x 1000 VA UPS (active for 5 hours without mains power, subject to door size and weight). Doors to remain locked only with no automatic open/ closed functionality. Guidance for specification option: Doors to remain locked only with no automatic open/closed functionality (5 A PSU plus internal batteries, this will allow the doors to remain locked for up to 15 hours without mains power, subject to door size and weight). Manufacturer guidance240 V 13 A switched spur. |
Mode of operation | LED programme switch to provide off, exit only, hold open, reduced opening and fully automatic modes. |
Glazing | Single glazed 6.8 mm clear laminated safety glass. Single glazed 8.8 mm clear laminated safety glass. Single glazed 10.8 mm clear laminated safety glass. Double glazed in 6.8/12/6.8 mm clear laminated safety glass. Double glazed in 8.8/10/8.8 mm clear laminated safety glass. Manufacturer guidanceDoors with double glazing cannot exceed 2.8 m² in overall size e.g. 1 m wide x 2.8 m high would be the maximum leaf size, to go wider the leaf height would need to be reduced. |
Floor guide | Not required. Full width recessed floor guide. Guidance for specification option: To allow for the correct operation of the door leaf if over 1200 mm wide each. |
Drive | GEZE Slimdrive SL NT Electro-mechanical Sliding Door Operator with Microprocessor control and silent brushless |
Sustainability data
Contains Red List materials | No |
Literature

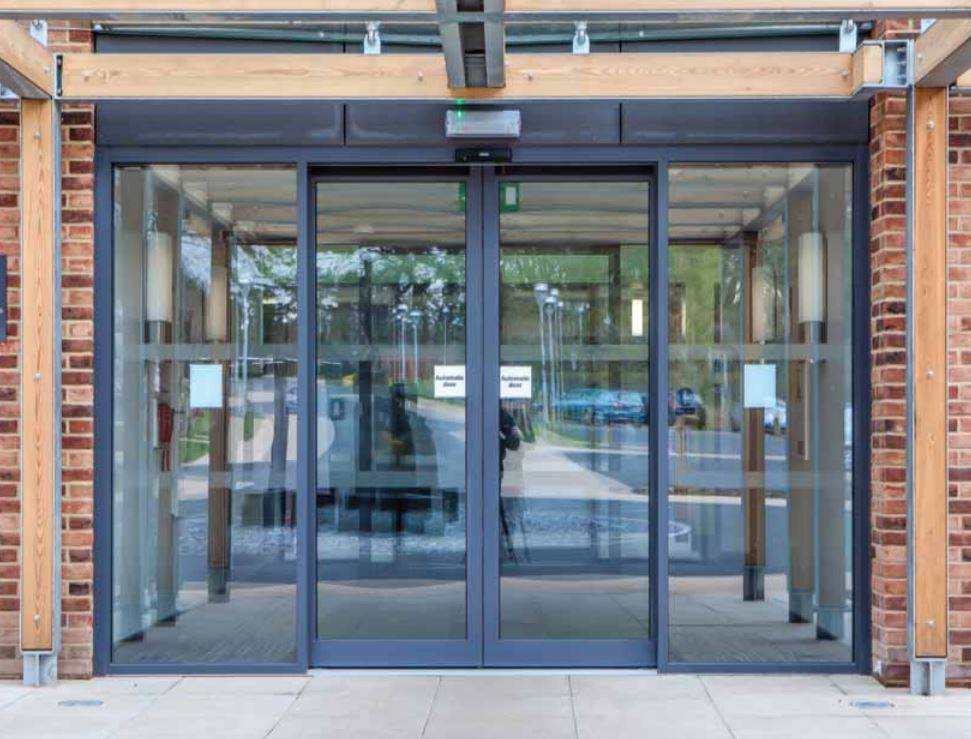

GEZE Slimdrive SL NT PAS24 automatic sliding door
GEZE Slimdrive SL NT PAS24 single sliding door with side safety sensor

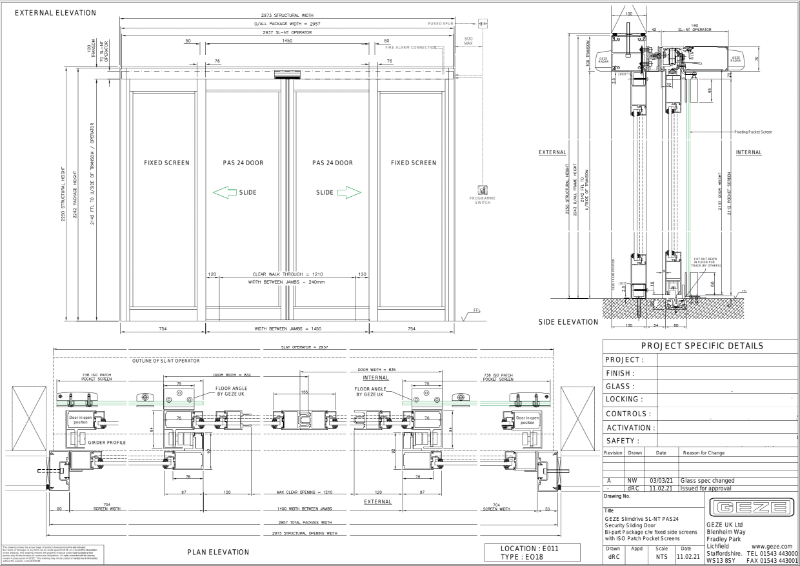

GEZE Slimdrive SL NT PAS24 bi-part sliding doors with patch pockets

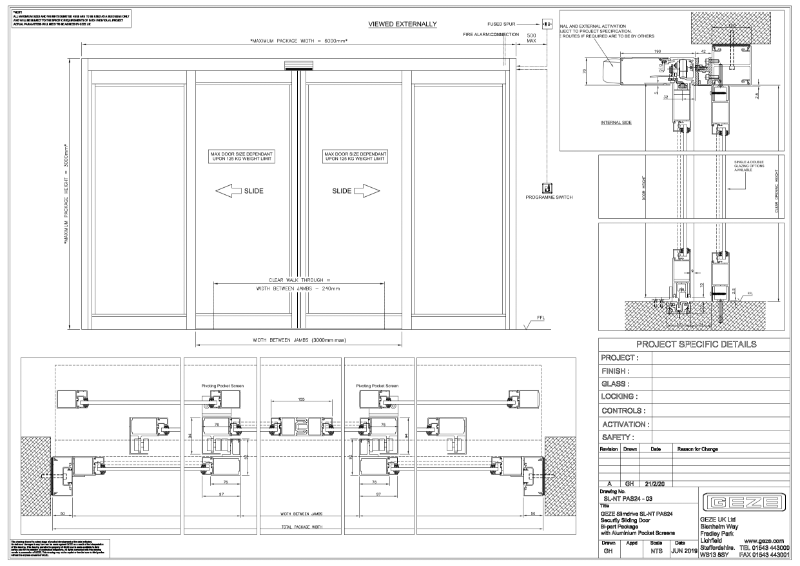

GEZE Slimdrive SL NT PAS24 bi-part sliding doors with aluminium pocket screens
