Geolite Magma - Multipurpose Geo‑Mortar
Verified by manufacturer 5 months ago
GEV-EMICODE® EC1 PLUS
Certificate type
EPD
Certificate type
Mineral geo‑mortar with geo‑binder base for monolithic repair of reinforced concrete.
Application
Intended use:
- Passivation, restoration and monolithic consolidation of reinforced concrete structures and infrastructures:
- by the formwork casting of concrete for vertical structures and at the soffit of horizontal elements;
- by pouring onto the top surface of horizontal elements or by bonded section underpinning in general.
- Precision fastening and structural anchoring of sub-plates, tie-rods, bars, plates, machinery on reinforced concrete.
- Fastening and anchoring of connections on concrete in certified Geosteel SRG strengthening systems.
- Inorganic mineral matrix to be used with Steel Fiber for the preparation of certified Geolite FRC strengthening systems.
Description
Geolite Magma is a pourable, multipurpose geo‑mortar for passivating, repairing and consolidating structures in reinforced concrete with a swelling effect, for anchoring and fixing metal elements. Inorganic mineral matrix in combination with steel sheets and short fibres in certified Geosteel SRG and Geolite FRC structural strengthening systems.
Features and benefits:
- Pourable, multipurpose, class R4.
- Normal setting: 60 minutes.
- Thicknesses from 10 to 100 mm.
- Based on geo‑binder.
- For naturally stable, monolithic repairs.
- Modular setting times.
- Inorganic mineral matrix in certified Geosteel SRG and Geolite FRC systems.
General information
Color | Grey |
Material | Silicate |
Shape | Formless |
Height | 10 mm Guidance for specification option: Minimum thickness per layer. 100 mm Guidance for specification option: Maximum thickness per layer. |
Uniclass | |
CAWS | C41/610 Mortar repair of cracks C41/610 Mortar repair of cracks C42/310 Repair mortar |
Specification data - Concrete repair mortars
Classification data | |
Standard | To BS EN 1504-3. |
Mortar type | Mineral geo-mortar. |
Performance requirement class | R4. |
Mass | ≈1280 kg/m³. Manufacturer guidanceUEAtc. |
Aggregate | Silicate - carbonate. |
Grading category | To EN 12192-1, 0–2.5 mm. |
Density | ≈2200 kg/m³. |
pH value | ≥12.5. |
Application temperature range | +5°C to +40°C. |
Reaction to fire | To EN 13501-1, Euroclass A1. |
Typical compressive strength | To EN 12190, >75 MPa (28 days). |
Flexural strength | To EN 196-1, >9 MPa (28 days). |
Adhesion | To EN 1542, >2 MPa (28 days). |
Capillary absorption | To EN 13057, <0.5 kg∙m-²∙h-⁰∙⁵. |
Sustainability data
Country of product manufacture | Italy |
Manufacturing plant location | |
Material | Silicate |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 0.27 (kg CO₂ eq/kg) Declared unit : 0.27 Lower emissions | |
Recyclability | Recyclable as an inert material |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Product certifications
Product certifications

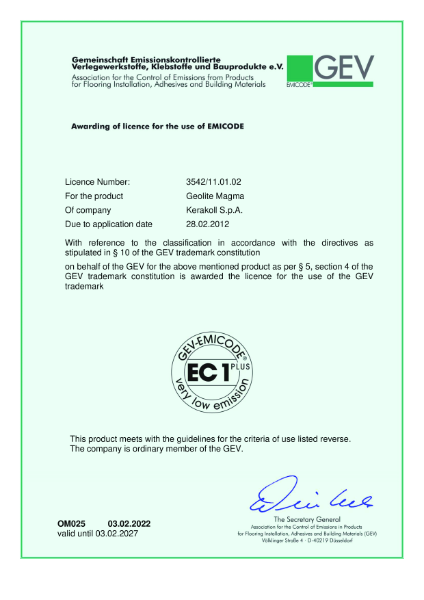

GEV-EMICODE® EC1 PLUS
Geolite Magma - EC1 Plus
EPD
Geolite Magma - EPD
Literature
Literature type

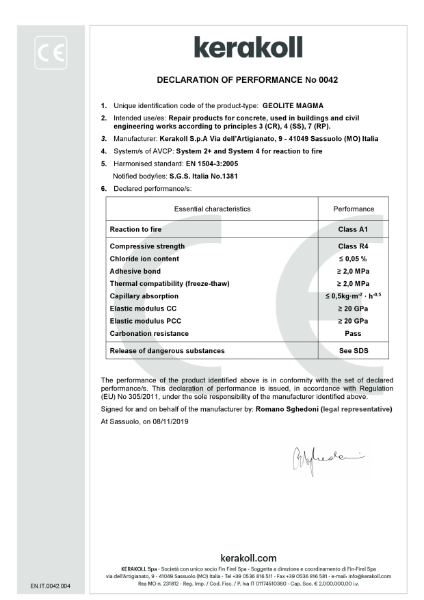

DoP (CE) Geolite Magma - EN.IT.0042.004

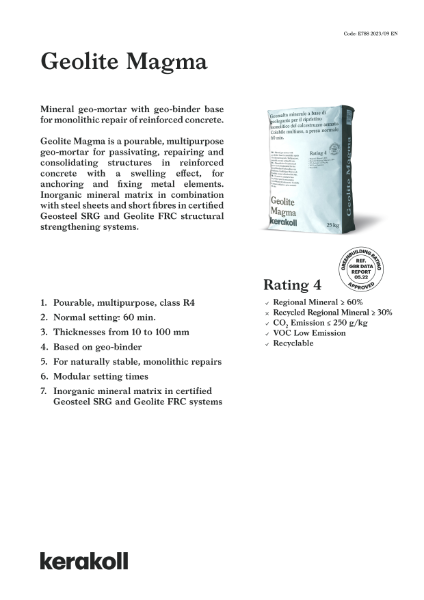

Geolite Magma - TDS
