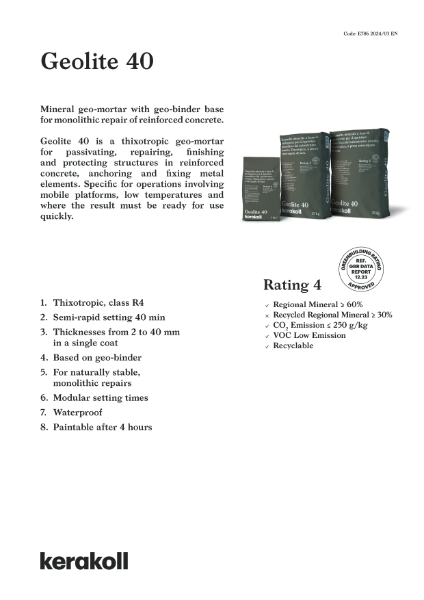

Geolite 40 - Thixotropic Geo‑Mortar
Verified by manufacturer 6 days ago
Mineral geo‑mortar with geo‑binder base for monolithic repair of reinforced concrete.
Application
Intended use:
- Passivation, localized and generalized repair, finishing and monolithic protection of reinforced concrete structures of any nature and size.
- Specific for medium or large size operations, fast execution of work with same-day delivery.
- Rapid, precision fastening and structural anchoring of sub-plates, tie-rods, bars, plates, machinery on reinforced concrete.
Description
Geolite 40 is a thixotropic geo‑mortar for passivating, repairing, finishing and protecting structures in reinforced concrete, anchoring and fixing metal elements. Specific for operations involving mobile platforms, low temperatures and where the result must be ready for use quickly.
Features and benefits:
- Thixotropic, class R4.
- Semi‑rapid setting 40 min.
- Thicknesses from 2 to 40 mm in a single coat.
- Based on geo‑binder.
- For naturally stable, monolithic repairs.
- Modular setting times.
- Water‑resistant.
- Paintable after four hours.
General information
Color | Grey |
Material | Silicate |
Shape | Formless |
Height | 2 mm Guidance for specification option: Minimum thickness per layer. 40 mm Guidance for specification option: Maximum thickness per layer. |
Uniclass | |
CAWS | C42/315 Protective coating to reinforcement C42/345 Protective coatings for concrete C42/335 Proprietary concrete for small area repairs C42/310 Repair mortar C41/610 Mortar repair of cracks C41/610 Mortar repair of cracks |
Specification data - Concrete repair mortars
Standard | To BS EN 1504-3. |
Mortar type | Thixotropic geo-mortar. |
Performance requirement class | R4. |
Mass | ≈1320 kg/m³. Manufacturer guidanceUEAtc. |
Aggregate | Silicate - carbonate. Manufacturer guidanceAggregate mineral content. |
Grading category | To EN 12192-1, 0–0.5 mm. |
Density | ≈2010 kg/m³. |
pH value | ≥12.5. |
Application temperature range | +5°C to +40°C. |
Reaction to fire | To EN 13501-1, Euroclass A1. |
Typical compressive strength | To EN 12190, >45 MPa (28 days). |
Flexural strength | To EN 196-1, >9 MPa (28 days). |
Adhesion | To EN 1542, >2 MPa (28 days). |
Capillary absorption | To EN 13057, < 0.5 kg∙m-²∙h-⁰∙⁵. |
Sustainability data
Country of product manufacture | Italy |
Manufacturing plant location | Manufacturer guidanceThe products are manufactured by Kerakoll S.p.A. in the production plants located in Sassuolo (MO - Italy) and Rubiera (RE - Italy). |
Material | Silicate |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 0.4 kg CO₂ eq/kg |
Declared unit | 0.36 kg CO₂ eq/kg Self-declared |
Recyclability | Recyclable as an inert material once mixed |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 15 % |
