Genius Bespoke Planar - Aluminium Rainscreen Cladding System
Verified by manufacturer 4 months ago
Non-combustible lightweight external wall cladding system with concealed fixings and a fully customisable profile.
Application
BBA approved fully adjustable backing system comprising of helping hand brackets vertical T/L support rails. Horizontal carrier system also available with this system. Framing allows for use with multiple substrates including traditional masonry and lightweight steel frame. Please enquire directly with enquires@geniusfacades.com for static calculation and further details.
External facade installations - masonry or lightweight steel frame.
Description

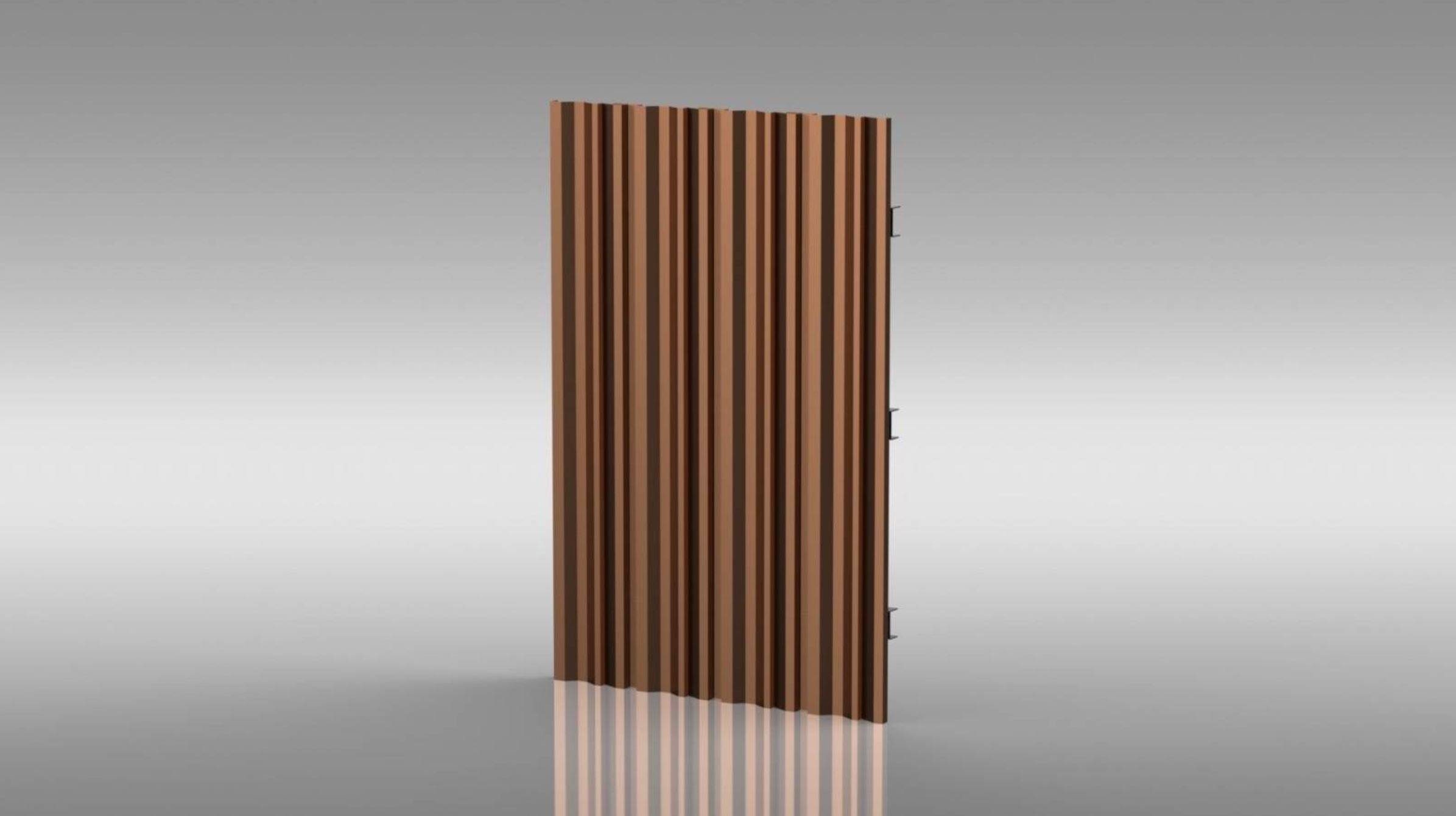

Genius bespoke planar is an extruded aluminium rainscreen facade system.
Features and benefits:
- Non-combustible (A1 and A2-s1,d0).
- Horizontal and vertical installation method available.
- Cost effective.
- Lightweight.
- Uniquely profiled or curved edge design available.
- Recyclable.
- Concealed fixings.
- Accurate.
General information
Color | Other Guidance for specification option: Extensive range of colours and textures including RAL and special metallics. |
Finish | Anodized Powder-coated Guidance for specification option: Polyester powder coated PPC. |
Material | Aluminium |
Shape | Square Guidance for specification option: Standard. Rectangle Guidance for specification option: Rectangle with specialist curving available. |
Warranty description | Guidance for specification option: Dependant on finish, material & location. Please contact to discuss. |
Uniclass | |
CAWS | H20/155 Sheet cladding (attached to timber battens) H92/120 Rainscreen cladding H20/10 Sheet cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Thermal insulation | Mineral wool slab insulation.Guidance for specification option: Extensive range of brackets to accommodate specified thickness of mineral wool insulation and required cladding zones. |
Breather membrane | |
Material | Supplied by others. |
Fasteners | Supplied by others. |
Secondary support structure | BBA Approved genius facades braces and rail system. |
Cavity fire barriers | |
Horizontal | Supplied by others. |
Vertical | Supplied by others. |
Cladding panels | |
Material | 3 mm Aluminium. |
Panel joints | Guidance for specification option: As typical details. |
Reveals | Guidance for specification option: As typical details. |
Samples required | Guidance for specification option: Available on request. |
System accessories | Not required.Flashings.Cappings.Trims.Window pods. |
Thickness | 2—3 mm. Guidance for specification option: Other. Other. Guidance for specification option: Other thicknesses available on request. |
Fire classification | To EN 13501-1, A1. To EN 13501-1, A2-s1, d0. |
Joint width | 10 mm. 20 mm. |
Rail material/ finish | Extruded aluminium, 6063/T6 grade alloy. |
Sustainability data
Material | Aluminium |
Manufacturing plant location | |
Recyclability | 100% Guidance for specification option: Fully recyclable. |
