It features a deep curved fence topping and is perfect for areas that are either aesthetically sensitive or are on show to the public or customers.

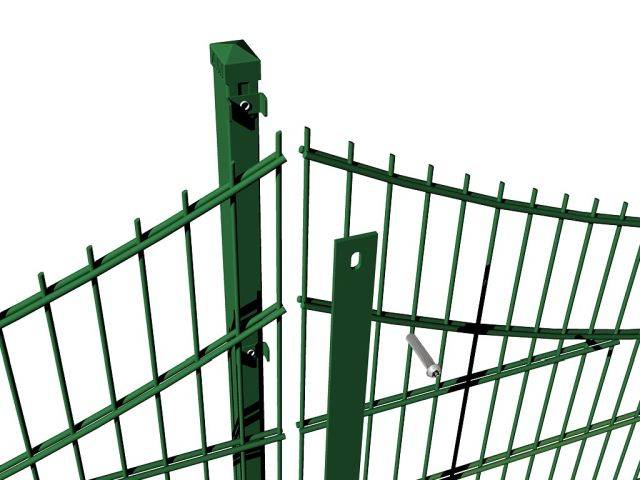

Based on the twin wire Duo system, it uses twin horizontal wires to sandwich the vertical wires creating a strong twin wire mesh. Anti-tamper fixings and optional ball finials combine to make this system both attractive and secure. Due to its strength and great looks, it is ideal for housing projects, schools and prestige projects where the fence needs to be a feature as well as a boundary.
It can be supplied in heights of up to 6 m, which is measured at post height, so the panels may exceed that height at the centre of the panel.
Features and benefits:
Galvanized and polyester powder coated
Q40/125 Open mesh steel panel general purpose fencing
Q40/27 Open mesh steel panel fencing
Q40/30 Proprietary fencing
Q40/430 Proprietary fencing
Gemini Deep Concave Clamp
0.830–6.0 m, insert requirements.
Horizontal wire thickness
Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.
Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.
Standard product features
Galvanized and polyester powder coated.
Duo6 mesh comprising 50 x 200 mm mesh with two horizontal wires at 200 mm centres and single 6 mm vertical wires at 50 mm centres.
Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 2525 mm centres.
Post to panel fixing:
Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.
Framed in a 50 x 50 mm RHS with Zaun Duo8 mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
