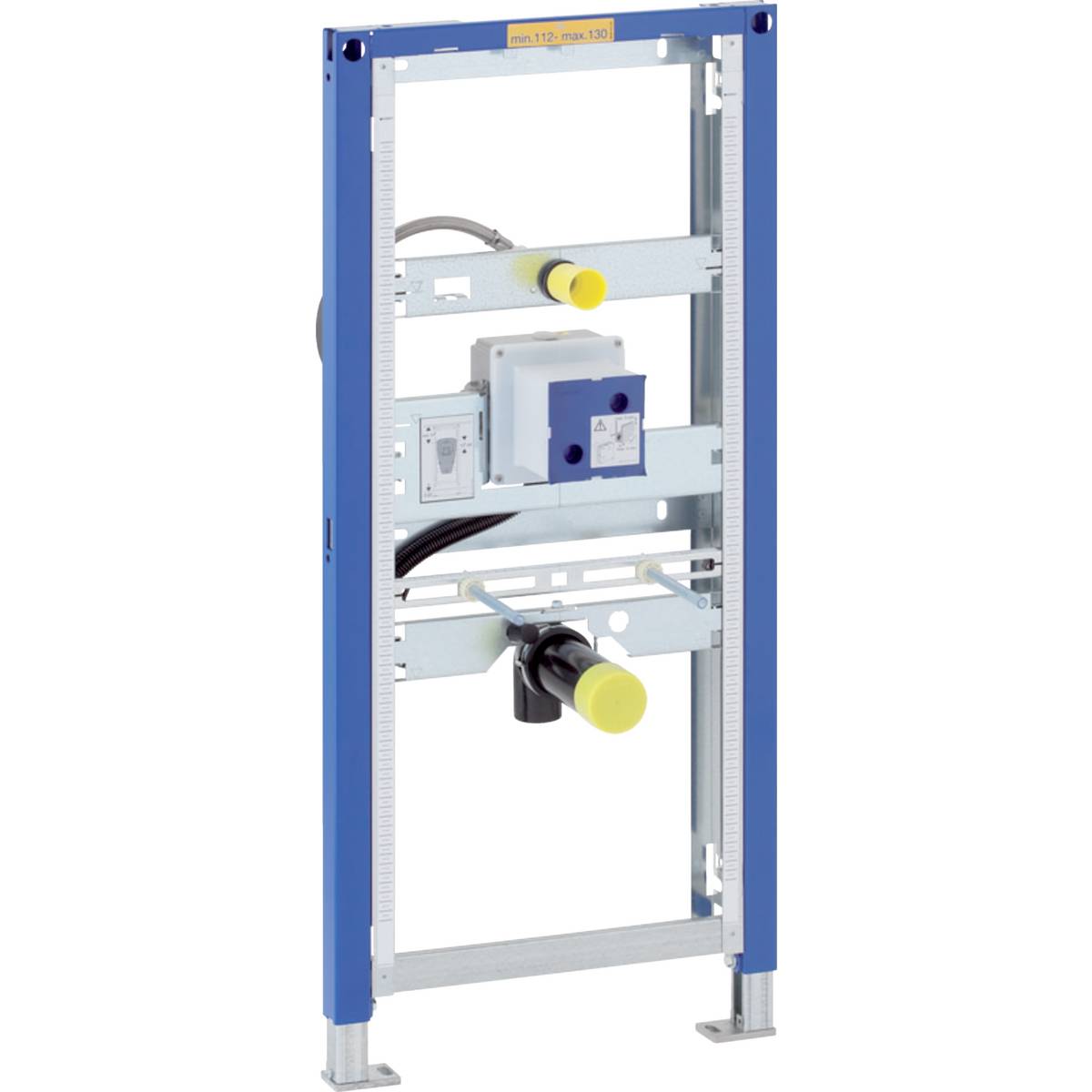

Geberit Duofix frame for urinal, 112–130 cm, universal, for hidden urinal flush control - Duofix installation element
Verified by manufacturer 12 days ago
Geberit Duofix frame for urinal, 112–130 cm, universal, for hidden urinal flush control.
Application
- Drywall construction.
- Installation in part or room-height prewall installations.
- Installation in room-height installation walls.
- Installation in part or room-height Geberit Duofix system walls.
- Mounting urinals.
- Geberit urinal flush controls for covered installation, vandal-resistant.
- Floor constructions 0–20 cm.
Description
Geberit Duofix frame for urinal, 112–130 cm, universal, for hidden urinal flush control.
Features and benefits:
- Statically self-supporting frame, protected against corrosion with powder coating.
- Frame with ∅ 9 mm drilling holes for fastening in wood frame construction.
- Galvanized feet.
- Feet adjustable 0–20 cm.
- Non-slip leg supports.
- Rotatable foot plates.
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails.
- Element height adjustable to urinal, 112–130 cm.
- Universal concealed housing for Geberit urinal flush controls.
- Terminal for electrical connection in concealed housing.
- Water supply connection on the right, on the concealed housing.
- Water supply connection compatible with MasterFix and MeplaFix.
- Elbow connector can be mounted without tools.
- Premounted stop valve with throttle.
- With built-in conduit pipe to rinse the pipeline.
- Service opening behind urinal.
- Protection box for service opening 10.5 x 10.5 cm can be cut to length without tools.
- Flexible flush hose with guide and built-in check valve.
- Equipped with conduit pipe to connect the sensor in the trap to the urinal flush control.
- Fastening for inlet ∅32 mm, height-adjustable.
- Fastening for connection bend, height-adjustable and sound-absorbing.
- Urinal fasteners M8 width- and height-adjustable.
- Crossbars with centring marks, adjustable without tools.
- Additional fastening possible for urinal with accessories.
- Can be refitted with accessories to fit urinals with spray head.
General information
Color | Blue Silver |
Finish | Powder-coated |
Material | Steel Plastic |
Shape | Rectangle |
Length | 75 mm Guidance for specification option: Depth. |
Width | 500 mm |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
SKU Code | 111.689.00.1 |
Specification data - Pre-plumbed installation frames
Form | Geberit Duofix element for urinal, 112–130 cm, universal, for hidden urinal flush control. |
Materials | Steel; plastics. |
Size | 500 x 75 mm. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Flush volume | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Sustainability data
Country of product manufacture | Germany |
Material | Steel Plastic |
