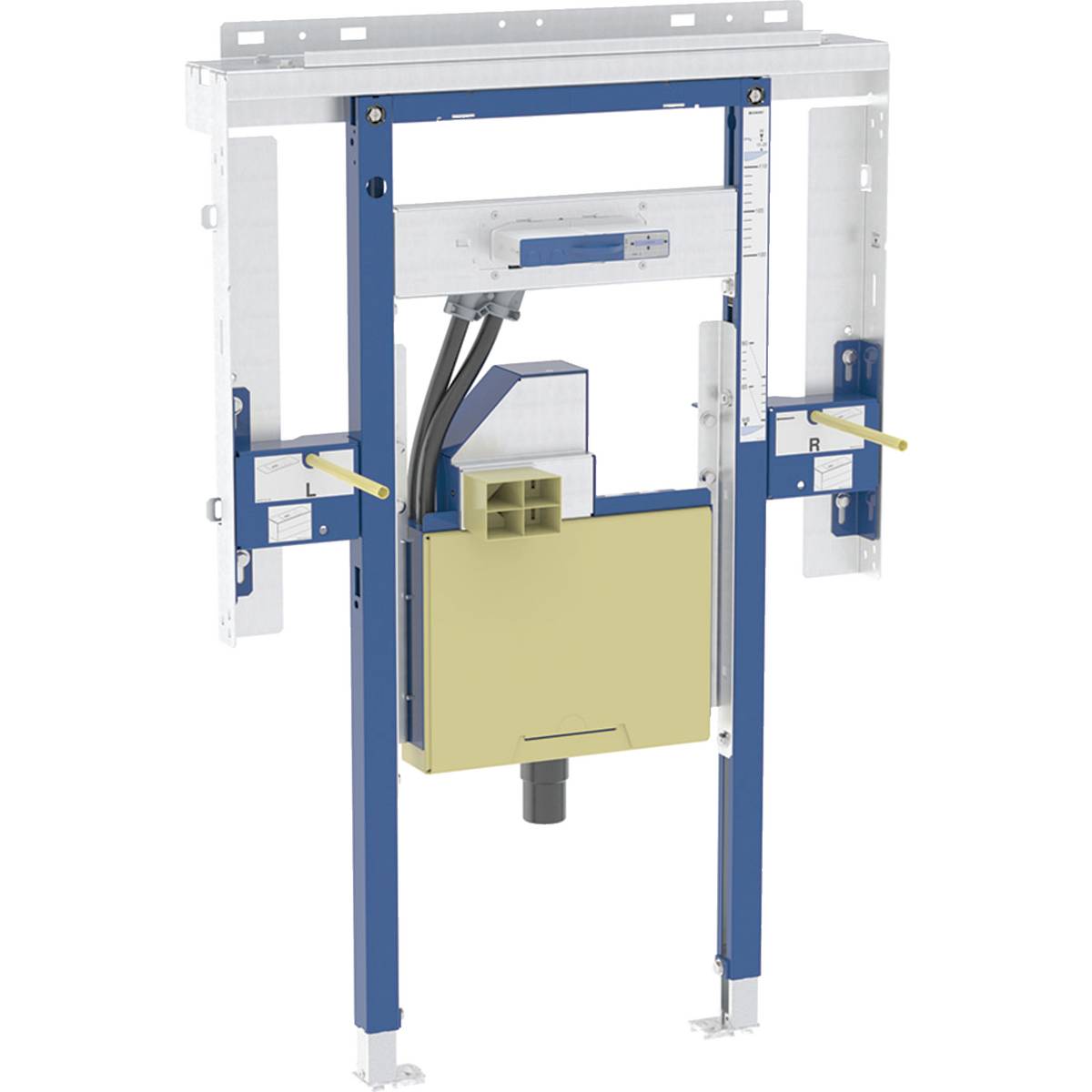

Geberit Duofix element for Geberit ONE washbasin, small projection and Geberit ONE wall-mounted tap, room-height, with concealed turn trap, with concealed Clou - Duofix installation element
Verified by manufacturer 3 days ago
111.071.00.2 - 800 x 1250 x 140 mm; washbasin width: 750 mm
111.071.00.2 - 800 x 1250 x 140 mm; washbasin width: 750 mm
Application
- For metal and wood frame walls;
- For Geberit Duofix system walls;
- For installation in room-height pre-walls;
- For installation in room-height partition walls;
- Suitable for less-abled installation;
- For floor constructions 0–25 cm;
- For Geberit ONE washbasins;
- For Geberit ONE vanity basins;
- For Geberit ONE washbasin taps wall-mounted;
- For Geberit ONE frame.
Description
Geberit Duofix element for Geberit ONE washbasin, small projection and Geberit ONE wall-mounted tap, room-height, with concealed turn trap, with concealed Clou.
Four sizes:
- 80 x 125 x 14 cm; washbasin width: 75 cm.
- 95 x 125 x 14 cm; washbasin width: 90 cm.
- 110 x 125 x 14 cm; washbasin width: 105 cm.
- 125 x 125 x 14 cm; washbasin width: 120 cm.
Features and benefits:
- 2025 range.
- Statically self-supporting frame, protected against corrosion with powder coating.
- Suitable for Geberit ONE.
- Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75.
- Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components.
- Galvanized non-slip leg supports protected against corrosion.
- Tap crossbar height-adjustable.
- Pre-mounted fastening for wall-mounted tap.
- Concealed turn trap with service opening.
- In-wall cabinet with straight connector made of PE, ∅50 / 56 mm.
- Water supply connection compatible with MasterFix and MeplaFix.
- Water supply connection on the bottom of concealed housing.
- Concealed housing for Geberit ONE washbasin tap, pre-mounted.
- Pre-mounted connection pipes between concealed housing and fastening for wall-mounted tap.
- Shut-off unit integrated in the concealed housing.
- Outlet mounting box in concealed housing.
General information
Color | Silver Blue |
Material | Steel Plastic |
Shape | Rectangle |
Length | 140 mm |
Width | 800 mm 950 mm 1100 mm 1250 mm |
Height | 1250 mm |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
SKU Code | 111.071.00.2 |
Specification data - Pre-plumbed installation frames
Form | Geberit Duofix element for Geberit ONE washbasin, small projection and Geberit ONE wall-mounted tap, room-height, with concealed turn trap, with concealed Clou. |
Materials | Steel/ plastic. |
Size | 800 x 1250 x 140 mm. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Sustainability data
Material | Steel Plastic |
