Geberit Duofix element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, for screed height at inlet 90–250 mm - Duofix Installation Element
Verified by manufacturer 3 days ago
Shower installation frame.
Application
- For metal and wood frame walls.
- For Geberit Duofix system walls.
- For installation in part- or room-height prewalls.
- For installation in room-height partition walls.
- For composite seals.
- For drainage of floor-even showers.
- For screed height ≥ 90 mm at inlet.
- For concealed or surface-mounted taps.
Description

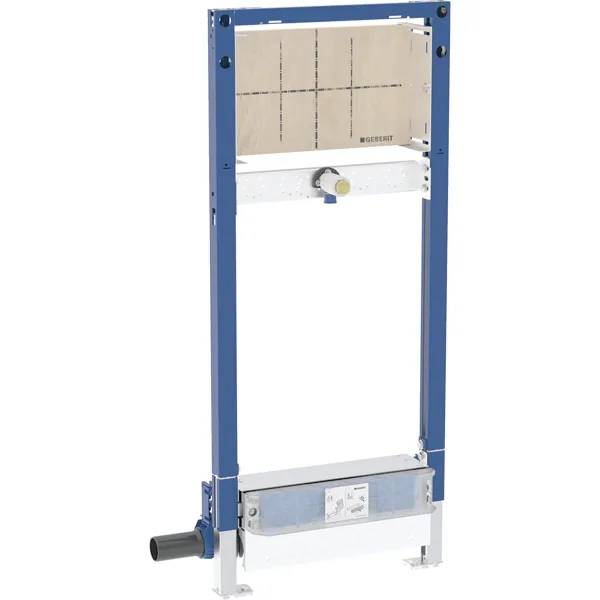

Shower installation frame.
Features and benefits:
- Statically self-supporting frame, protected against corrosion with powder coating.
- With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs.
- Alternative fastening point for wall anchors.
- Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75.
- Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components.
- Galvanised non-slip leg supports protected against corrosion.
- Quality-monitored in accordance with EN 1253-3.
- Adjustable sealing level for tension-free sealing connection.
- Premounted sealing fleece.
- Sealing fleece, 10 cm circumferential, for connecting sealing systems.
- Mounting plate adjustable in height and depth.
- Mounting plate made of veneered wood, waterproof bonded.
- Building material class B2 in accordance with DIN 4102-1, resp. class D-s2, d0 in accordance with EN 13501-3.
- Formaldehyde release class A in accordance with EN 1084, resp. Class E 1 according to EN 13936.
- Adjustable inlet height of trap.
- Panelling thickness 10–40 mm.
- Suitable for tile structures on floor 2–26 mm.
- Suitable for tile structures on wall 2–35 mm.
- Lateral drainage connection.
- DN50.
Included in the kit:
- Straight connector made of PE-HD, ø 50 mm.
- Elbow tap connector Rp 1/2" / R 1/2", compatible with MF.
- Sealing washer.
- Sound insulation base.
- Insulating sleeve.
- Protection box cover with integrated outlet sheet.
- Fastening and protection material.
General information
Color | Blue White |
Finish | Powder-coated |
Material | Steel |
Length | 110 mm |
Width | 500 mm |
Height | 1300 mm |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
SKU Code | 111.584.00.2 |
Specification data - Pre-plumbed installation frames
Form | Support frames. |
Materials | Steel. |
Size | 1300 x 500 x 110 mm. |
Accessories | Not required. Geberit ready-to-fit set for wall drain cover made of stainless steel screwable. Geberit ready-to-fit set for wall drain cover made of plastic. Geberit ready-to-fit set for wall drain tile-bearing frameless. Geberit ready-to-fit set for wall drain tile-bearing multi-piece. Geberit collector profile for wall drain for shower. Geberit Duofix set of wall anchors for single installation. Geberit Duofix set of wall anchors for single and system installation. Geberit Duofix set of wall anchors for single installation corner construction. Geberit Duofix set of wall anchor extensions. Geberit Duofix fastening material for stud clearance 50–57.5 cm. Geberit Duofix set of foot fastener on rear wall. Geberit Duofix set of foot extensions 20 cm length. |
