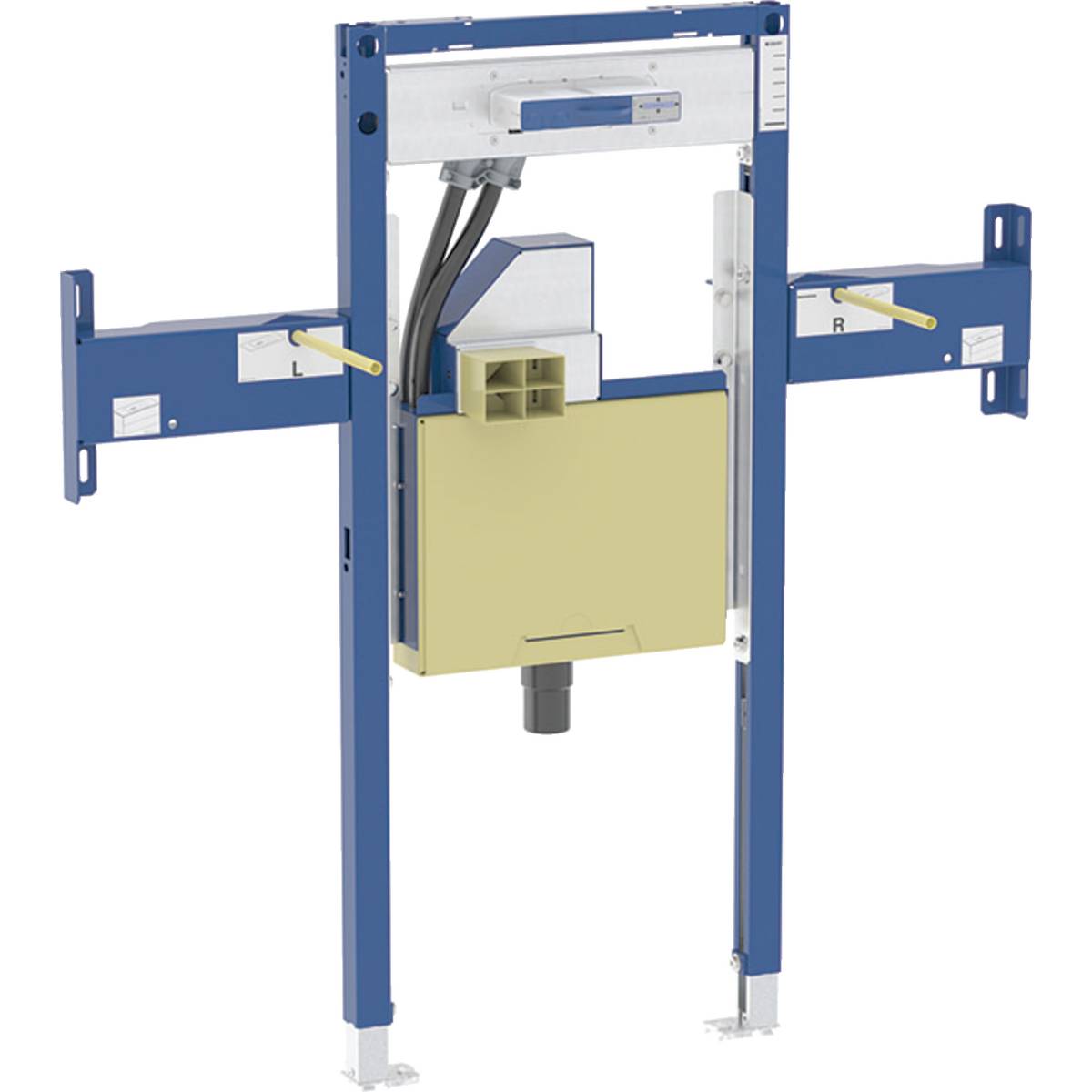

Geberit Duofix element for Geberit ONE washbasin, small projection and Geberit ONE wall-mounted tap, part-height, with concealed turn trap, with concealed Clou - Duofix installation element
Verified by manufacturer 3 days ago
111.093.00.2 - 1100 x 1120–1300 x 120 mm; washbasin width: 1050 mm
111.093.00.2 - 1100 x 1120–1300 x 120 mm; washbasin width: 1050 mm
Application
- For Geberit Duofix system walls.
- For installation in part-height prewalls.
- Suitable for less-abled installation.
- For floor constructions 0–25 cm.
- For Geberit ONE washbasins.
- For Geberit ONE vanity basins.
- For Geberit ONE washbasin taps wall-mounted , for Geberit ONE frame.
Description
Geberit Duofix element for Geberit ONE washbasin, small projection and Geberit ONE wall-mounted tap, part-height, with concealed turn trap, with concealed Clou.
Two sizes:
- 80 x 112–130 x 12 cm; washbasin width: 75 cm.
- 110 x 112–130 x 12 cm; washbasin width: 105 cm.
Features and benefits:
- 2025 range.
- Statically self-supporting frame, protected against corrosion with powder coating.
- Suitable for Geberit ONE.
- Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components.
- Galvanized non-slip leg supports protected against corrosion.
- Tap crossbar height-adjustable.
- Pre-mounted fastening for wall-mounted tap.
- Concealed turn trap with service opening.
- In-wall cabinet with straight connector made of PE, ∅50 / 56 mm.
- Water supply connection compatible with MasterFix and MeplaFix.
- Water supply connection on the bottom of concealed housing.
- Concealed housing for Geberit ONE washbasin tap, pre-mounted.
- Pre-mounted connection pipes between concealed housing and fastening for wall-mounted tap.
- Shut-off unit integrated in the concealed housing.
- Outlet mounting box in concealed housing.
General information
Color | Silver Blue |
Material | Steel Plastic |
Shape | Rectangle |
Length | 120 mm Guidance for specification option: Depth. |
Width | 800 mm 1100 mm |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
SKU Code | 111.093.00.2 |
Specification data - Pre-plumbed installation frames
Form | Geberit Duofix element for Geberit ONE washbasin, small projection and Geberit ONE wall-mounted tap, part-height, with concealed turn trap, with concealed Clou. |
Materials | Steel/ plastic. |
Size | 1100 x 1120–1300 x 120 mm. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Sustainability data
Material | Steel Plastic |
