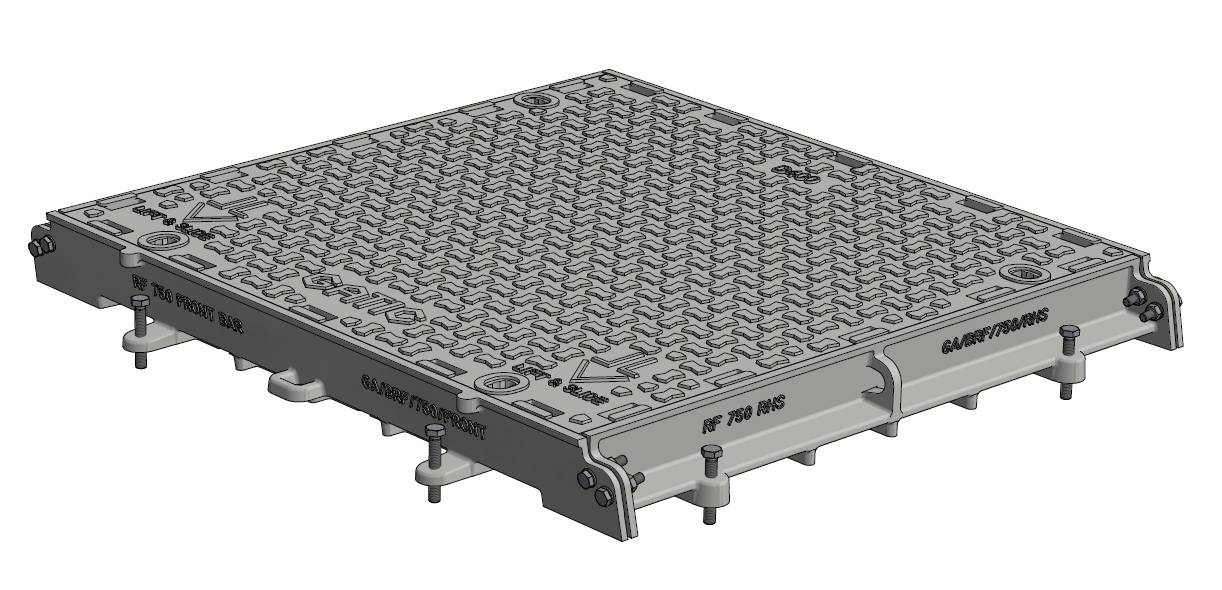

Gatic Single Covers and Frames

Name: Gatic Single Covers and Frames
Brand: Alumasc Water Management Solutions
SKU: g267urCPpVxd9DyCqZmA2j

Verified by manufacturer 2 months ago

Recessed F900

Third party certifications:

Ductile iron covers and frames.

Jump to:

Application

Gatic covers are designed both to protect and give

easy access to a diverse range of underground services,

examples include:

• Manhole/Pump/Valve/Transformer Chambers

• Pipe and Cable Service Trenches

• Cable Draw Pits

• Lighting Pits

• Fuel and Fire Hydrant Pits

• Machinery/Plant Access Chambers

• Combined Sewer/Overflow Chambers

Typical applications can be found in a diverse range of

projects including:

• Airports

• Ports/Docks

• Data Centres

• Energy Centres

• Utilities - Gas/Electricity

• Water - Sewerage Treatment Works/ Water Treatment Works/Pumping Stations

• Power Stations/Sub-Stations

• Commercial and Industrial Applications

• Highways

• Tunnels

Gatic sets the standard for access covers and frames, offering a combination of matchless quality with tried and

tested solutions. The secret lies in the closely machined horizontal and vertical seating faces of the cover and frame

components, which, when assembled into a complete unit, provide a cover and frame that is non rocking, gas & air tight.

Features and benefits:

Machine seated to 0.25 mm tolerance.
Gas, air and watertight.
Non-rocking.
Resistant to jet blast.
Vandal resistant.
Available in recessed and solid top.
Levelling bolts - aid levelling unit during installation.
Ductile Iron components coated with a black bitumen solution that acts as a temporary protection during transit.
Steelwork galvanized to BS EN ISO 1462.
Ductile iron components to BS EN 1563.
Certified to BSI ISO 9001 and BSI ISO 14001

Color	Black
Finish	Coated Guidance for specification option: Ductile Iron components coated with a black bitumen solution that acts as a temporary protection during transit.
Material	Iron Guidance for specification option: Ductile iron. Bitumen Guidance for specification option: Coated.
Shape	Square Rectangle

Uniclass	Pr_65_52_01_02 Access covers, gratings and framesPrimary
CAWS	R12/471 Access covers and frames P30/301 Access covers, manhole tops and frames R12/79 Access covers and frames P31/370 Access covers/ gratings

Product range	Gatic Drainage & Access Covers / Access Covers

Standards	To BS EN 124 and BS EN 1563.
Certification	To BSI ISO 9001 and 14001.
Configuration	Single.
Finish	Black bitumen coated. Guidance for specification option: Ductile iron components coated with a black bitumen solution that acts as a temporary protection during transit. Steelwork galvanized to BS EN ISO 1464.
Clear opening (minimum)	750 x 300 mm. 600 x 450 mm. 750 x 450 mm. 600 x 600 mm. 750 x 600 mm. 900 x 600 mm. 750 x 750 mm. 900 x 750 mm. 900 x 900 mm. 600 x 1050 mm. 750 x 1050 mm. 1000 x 1050 mm. 600 x 1200 mm. 750 x 1200 mm. 600 x 1500 mm. 750 x 1500 mm.
Load class (minimum)	F 900.
Frame or support	Horizontal and vertical seating's of covers and frames are machine finished and assembled with metal to metal contact to a tolerance of 0.25 mm.
Integral accessories	Not required. Locking bolts. Anti-vibration locking bolts. Sealing plates. Ventilation. Hinged lockable security grids. Manual long handled lifting keys. Mechanical lifting keys. Hydrant covers. Plug covers. Cut-outs for penetrations. Specialist Security Locking Bolts.

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Iron Guidance for specification option: Ductile iron. Bitumen Guidance for specification option: Coated.
Recyclability	100%
