Gatic Drainage Grating and Frames
Verified by manufacturer 1 month ago
UKAS
Certificate type
Drainage grating and frame.
Description

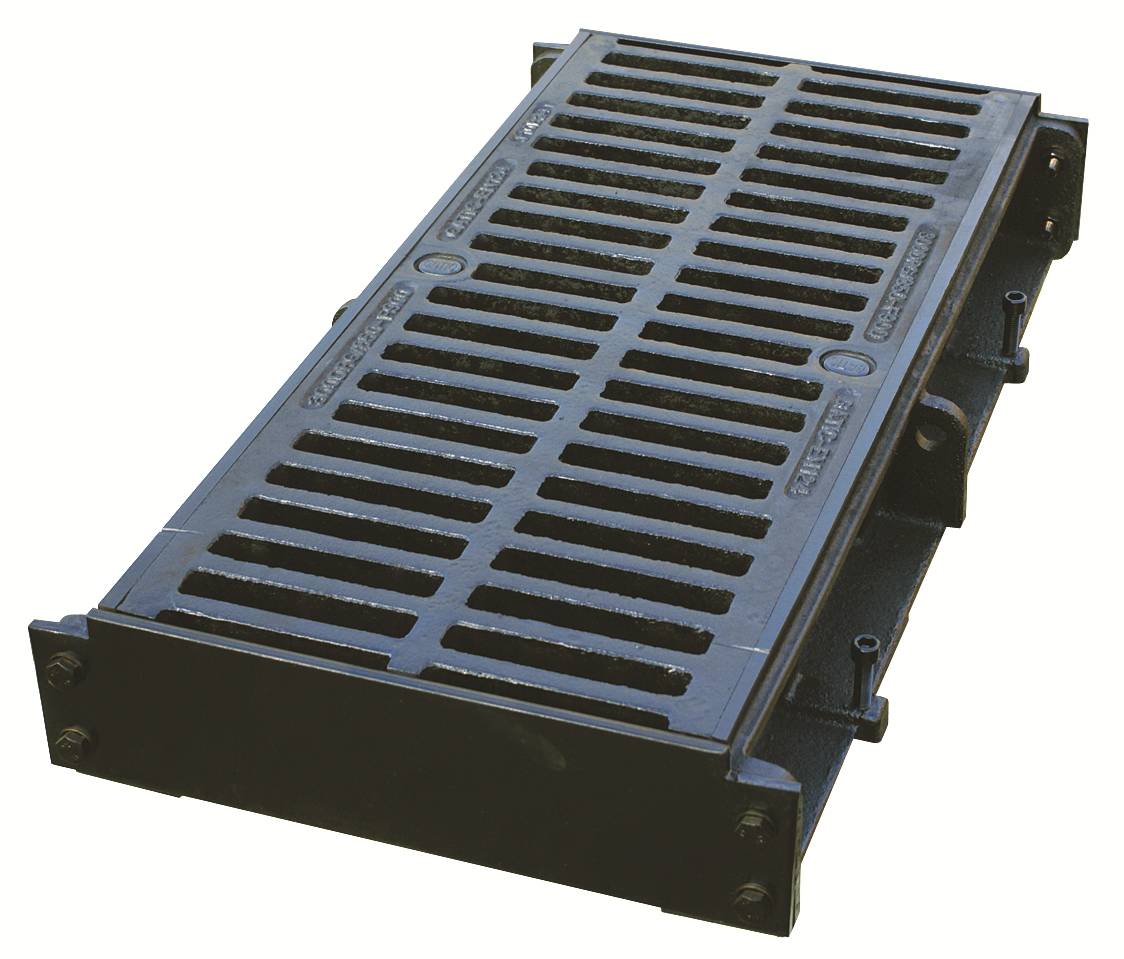

The Gatic range of ductile iron engineered removable drainage gratings, available in unit or continuous trench form, are ideally suited to facilitate the removal of surface water.
The machined fit between the gratings and frames ensures that the gratings are non rocking under traffic.
General information
Color | Black |
Material | Iron |
Shape | Square Rectangle |
Uniclass | |
CAWS | P31/370 Access covers/ gratings Q10/312 Footway gratings |
Product range |
Specification data - Access covers, gratings and frames
Standards | To BS EN124. |
Certification | BSI ISO 9001 and 14001. |
Configuration | Continuous trench.Single unit. |
Finish | Ductile Iron Components coated with a black bitumen solution that acts as a temporary protection during transit. |
Clear opening (minimum) | Manufacturer guidanceVarious options available - refer to manufacturer for guidance. |
Load class (minimum) | C250.Guidance for specification option: 5 tonne wheel load. D400.Guidance for specification option: 11.5 tonne wheel load. E600.Guidance for specification option: 20 tonne slow moving wheel load. F900.Guidance for specification option: Wheel loads in excess of 35 tonne. |
Cover | Manufacturer guidanceRefer to manufacturer for guidance. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Iron |
Recyclability | 100% |
Third party certifications
UKAS
ISO 9001 - Dover Site
Literature
Gatic Access Covers

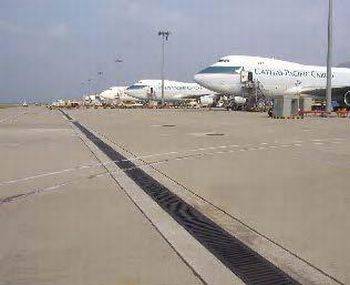

Gatic Ports and Airports
