G 1.5 Membrane - PVC Membrane

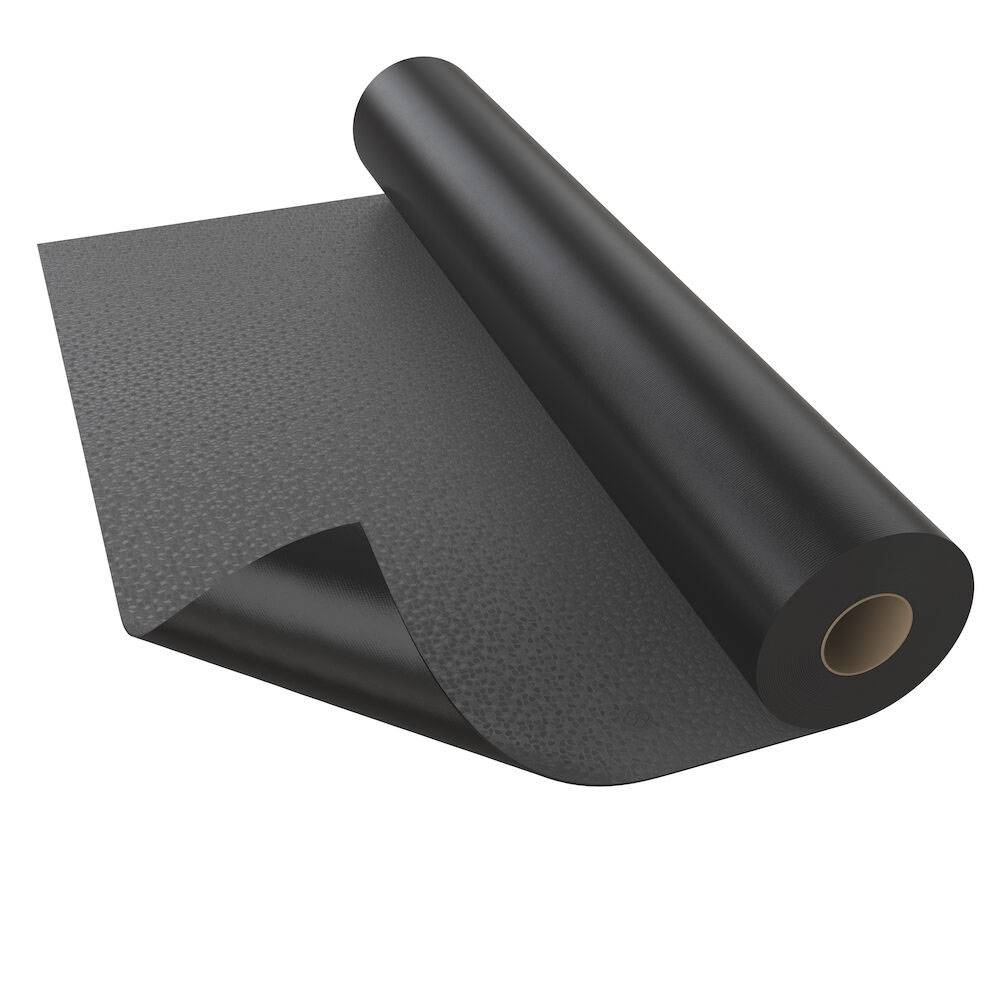

Name: G 1.5 Membrane - PVC Membrane
Brand: Protan (UK) Ltd
SKU: 6KDG8hnALqiBFpFVa8vz91

Verified by manufacturer 2 days ago

PVC single-ply membrane designed for Protan Green and Protected roofing systems, resistant to temperature extremes, UV and root penetration.

Jump to:

Request BIM

+44 (0)1925 658001 Website

Application

Suitable for installation in Protan Green and Protan Protected roofing systems in warm, cold and inverted roof constructions.
Used for new-build and refurbishment projects on flat and pitched roofs, exposed systems, and fully adhered upstands in the Protan Adhered System.

Description

Protan G PVC single-ply membranes are designed for installation in the Protan Green and Protan Protected systems in warm, cold and inverted roof constructions.

Features and benefits:

Manufactured from pliable PVC with a glass fibre carrier.
Contains stabilisers making membranes resistant to both high and low temperatures and UV-stable.
Includes a fungicide for added protection against microbial attack.
Can form details in exposed systems and fully adhered upstands in the Protan Adhered System.
Resistant to root penetration according to FLL approval.
Available in dark grey (RAL 7012) and light grey (RAL 7040).
Durability suggests a life in excess of 30 years.
Can be recycled at the end of their working lives if not contaminated with Protan Bonding Adhesive.

General information

Color	Grey
Material	PVC Glass Fibre
Shape	Rectangle
Length	15000 mm
Width	2000 mm
Height	1.5 mm

Uniclass	Pr_25_57_51_66 Polymeric membranesPrimary
CAWS	J42/28 Waterproof membrane J42/400 Waterproof membrane

Specification data - Polymeric membranes

Classification data
Material	Polyvinyl chloride (PVC) and glass fibre.
Standard	To EN 13956.
Third-party certification	British Board of Agrément (BBA) certificate. Guidance for specification option: BBA certificate 00/3755.
Performance characteristics	-
External fire performance	- Manufacturer guidance The external fire performance of a roof is dominated by the build-up and components not delivered by Protan (UK) Ltd. Protan has tested build-ups according to ENV 1187 and provides fire classifications achieving BROOF (t4) on several actual build-ups according to EN 13501-5. Consult manufacturer for details.
Reaction to fire	To EN 13501-1, Class E.
Watertightness	To EN 1928(A) and EN 1928(B), Pass.
Tensile properties	To EN 12311-2(A), MLV ≥500 N/50mm.
Root resistance	To FLL/EN 13948, Pass.
Tear resistance	To EN 12310-2, MLV ≥110 N/50mm.
Width (minimum)	2000 mm.
Thickness (minimum)	1.5 mm.
Colour	Dark grey (RAL 7012). Light grey (RAL 7040).
Accessories	Not required. 130 mm-wide secret-fix strips. Guidance for specification option: Where the dry weight of the green roof components/ ballast is <80 kg/m², the Protan G membrane must be mechanically fixed through secret-fix strips – prefabricated Protan G membrane. Protan G membranes must not be mechanically fixed, unless supplied with secret-fix strips. Where the dry weight of the green roof components/ ballast is ≥80 kg/m², the Protan G membrane is loose laid (with fixings installed around the roof perimeter and penetrations).
Resistance to impact	To EN 12691(A), MLV ≥600 mm.

Sustainability data

Material	PVC Glass Fibre
Recyclability	Protan G membranes can be recycled at the end of their working lives, where they have not come into contact with Protan Bonding Adhesive.
Expected Life	30 year
