Framed and Frameless Glazing

Verified by manufacturer 1 day ago

Safetell Ltd

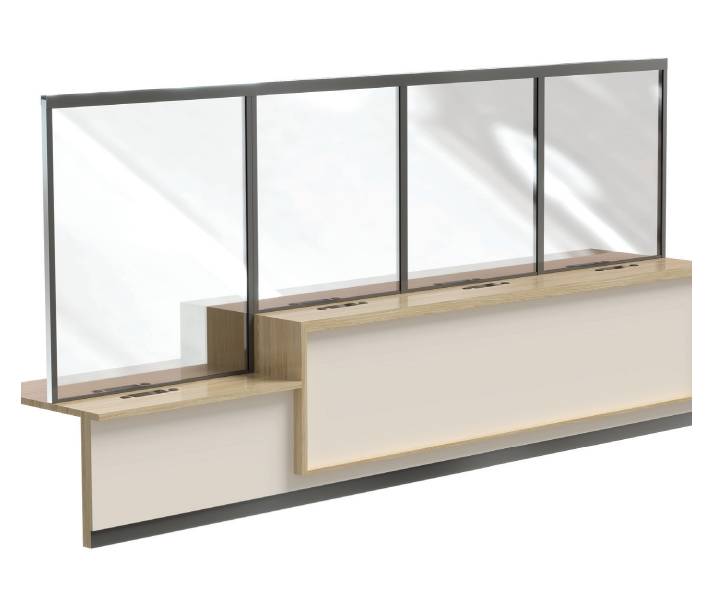

Framed and frameless fixed glazing is a secure area, anti-physical attack glazing system.

Jump to:
Request BIM
+44 (0)1322 223233 Website

Application

Typical applications include banks, retail, NHS, councils and commercial buildings.

Description

Framed and frameless fixed glazing is a secure area, anti-physical attack glazing system designed to provide staff and counter areas with protection from physical attack and robbery with a high-quality aesthetic appearance in keeping with high street commercial environments.

Features and benefits:

  • High aesthetic quality.
  • Large pane size capability.
  • Tailored to suit premises and corporate look.
  • Can be fitted to existing or new counterwork.
  • Nationwide installation.
  • Complete secure-line solutions.
  • Centralised account management for standardized implementation.
  • Customer specified frame colours are available.
  • Standard and bespoke frame sizes are available.
  • Counterwork can be supplied as part of the solution.
  • Speech transfer and cash scoops are available.
  • Welded joints for increased security level.
  • A fully welded steel frame.

General information

Color

Clear

White

Grey

Black

Other

Finish

Powder-coated

Material

Steel

Glass

Shape

Rectangle

Square

Width

3000 mm

Bespoke

Height

2000 mm

Bespoke

Uniclass

Pr_30_59_97_16 Glazed security window panelsPrimary

CAWS

L10/60 Security

L10/690 Security

H14/340 Security window panels

Specification data - Glazed security window panels

Classification data

Panel configuration

Standard.

Third party product certification

Accreditation by the United Kingdom Accreditation Service (UKAS).

Panel size

-

Overall size (width x height x depth)

-

Manufacturer guidance

Consult manufacturer and insert requirements.

  • Height: 2000 mm (maximum).
  • Width: 3000 mm (maximum).

Glazing configuration

Single glass block.

Glazing units

-

Type

Block.

Standard

To BS EN 356, P3A.

Colour

Natural.

Glass type

11.5 mm anti-physical attack glass.

Frame

Steel frame.

Guidance for specification option:

Customer specified frame colours are available.

Frameless.

Sustainability data

Material

Steel
Glass
