Frame Cramps - Masonry Wall Restraints
Verified by manufacturer 2 months ago

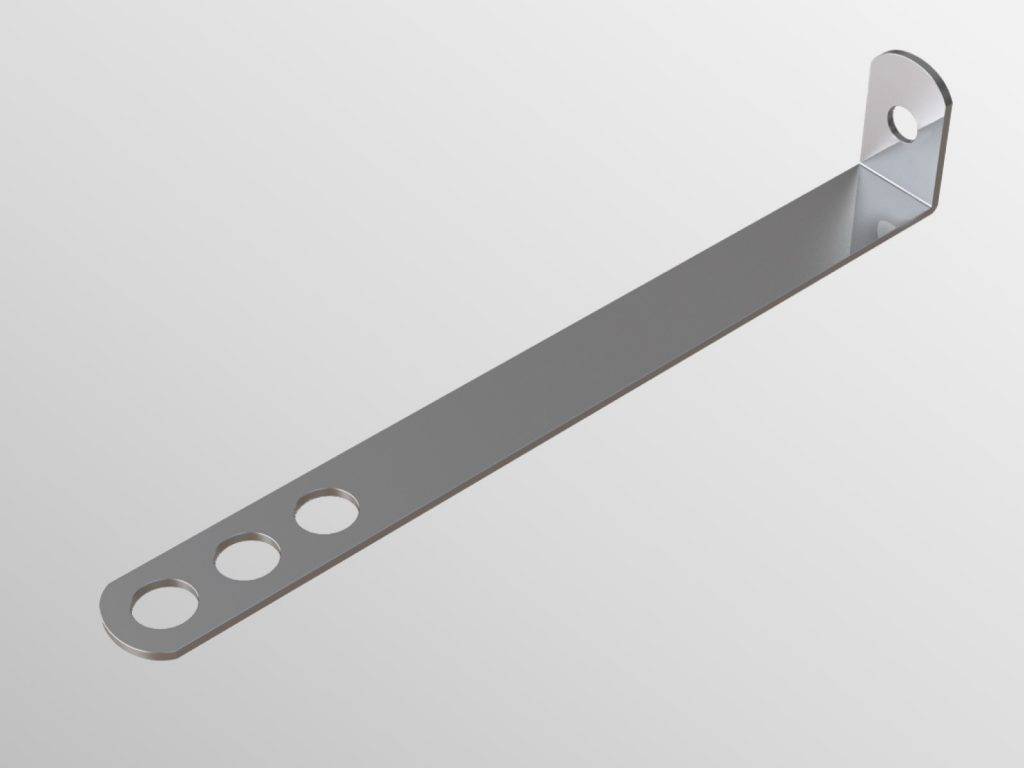

VE7 Frame cramp. stainless steel
VE7 Frame cramp. stainless steel
ISO 9001 Quality Management
Certificate type
Range of frame cramps and ties to allow masonry walls to be restrained back to other elements of the structure.
Application

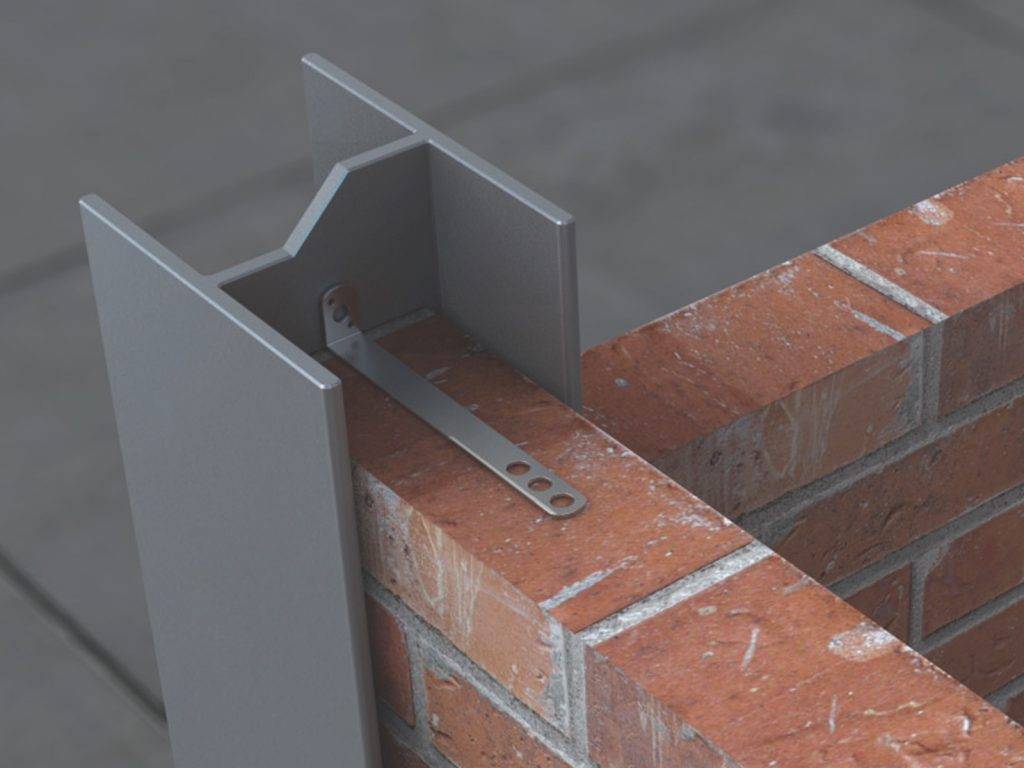

Lateral restraint, suitable for pre-existing walls, or new or pre-existing steel work.
Description
Range of frame cramps and ties to allow masonry walls to be restrained back to other elements of the structure.
Features and benefits:
- Suitable for pre-existing walls, or new or pre-existing steel work.
- The ties, once in position, prevent sideways movement between a wall and another structure.
- Manufactured from grade 304 stainless steel (selected VE7 options available in galvanised steel).
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 304. Steel |
Length | 50 mm Guidance for specification option: V7H only. 75 mm 100 mm 125 mm 150 mm |
Uniclass | |
CAWS | F30/220 Wall ties F30/26 Wall ties F30/218 Shear wall ties |
Specification data - Shear wall ties
Standard | To BS EN 845-1. |
Material | Grade 304 stainless steel.Guidance for specification option: Some models available in galvanized steel; consult manufacturer for details. |
Length | 75 mm.100 mm.125 mm.150 mm.175 mm.200 mm.225 mm.250 mm.275 mm.300 mm.Manufacturer guidanceSupplied in boxes of 250. |
End types | Asymmetrical flat plate holed for vertical fixing. |
Design embedment length (minimum) | 62.5 mm. |
Additional requirements | |
Mortar joint thickness (minimum) | 10 mm. |
Shear load capacity | 1180 N. |
Resistance to water crossing cavity | Non-resistant. |
Third party accreditation | UKCA marked. |
Fixing | HFX Hammer fixings, stainless steel. Guidance for specification option: Cost effective solution for fast repetitive fixing into concrete and similar materials. Suitable for fixing products to a solid base material, easy to install and are used extensively for fixing of Vista Engineering products. Suitable for concrete, solid blocks, perforated bricks, hollow blocks and aerated concrete (aircrete). This hammer fixing is simply tapped in with a hammer. HFX Hammer fixings, zinc-plated. Guidance for specification option: Cost effective solution for fast repetitive fixing into concrete and similar materials. Suitable for fixing products to a solid base material, easy to install and are used extensively for fixing of Vista Engineering products. Suitable for concrete, solid blocks, perforated bricks, hollow blocks and aerated concrete (aircrete). This hammer fixing is simply tapped in with a hammer. EXB Expansion bolt, stainless steel. Guidance for specification option: Heavy-duty; suitable for fixing into solid substances such as concrete. EXB Expansion bolt, zinc-plated. Guidance for specification option: Heavy-duty; suitable for fixing into solid substances such as concrete. SELF Self-tapping screws. Guidance for specification option: Vista offer a range of self-drill screws designed for use when fixing products to steel work. The high quality self-drilling fastener is designed to give very rapid and accurate installation with precision drill points eliminating ‘skip actions’ to prevent damage to the face of the profile. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Literature
Wall Ties Brochure

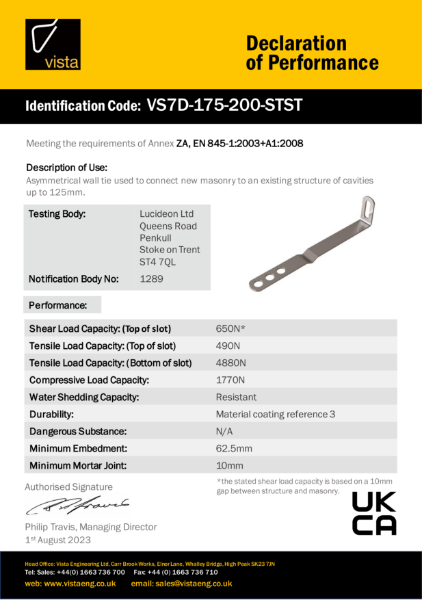

VE7 75mm-300mm Declaration of Performance
VE7D 125-200mm Declaration of Performance
VE7D 225-300mm Declaration of Performance
VS7 75-300mm Declaration of Performance
VS7D 125-150mm Declaration of Performance
VS7D 175-200mm Declaration of Performance
VS7D 225-300mm Declaration of Performance
V96-185-STST Declaration of Performance
V7H Frame Cramp Dowel Hole - Data Sheet
V7H 050-300mm Declaration of Performance
Similar products from Vista Engineering Ltd
Clasp Ties - Masonry Wall Restraints
