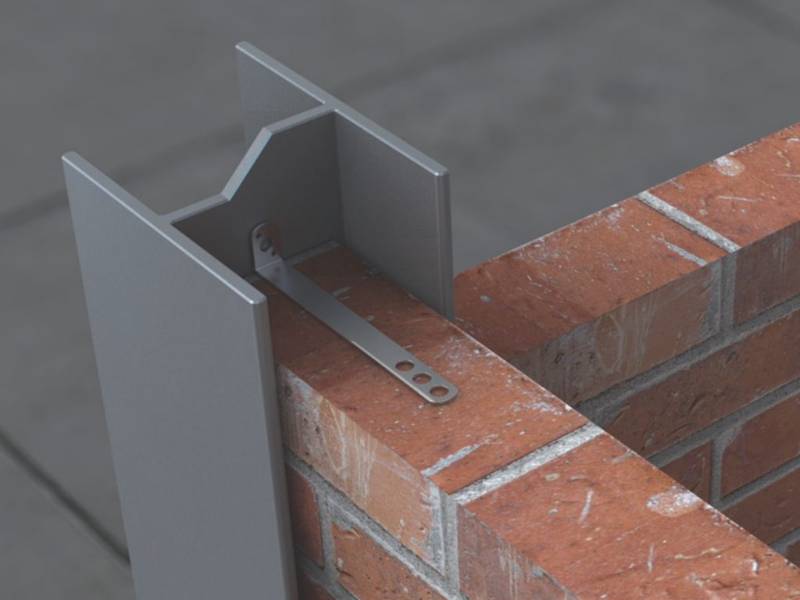

Frame Cramps - Masonry Wall Restraints
Verified 23 days ago
Vista Engineering Ltd
VE7 Frame cramp. stainless steel
nbs-symbol
Add to spec
Frame Cramps - Masonry Wall Restraints
Verified 23 days ago
Vista Engineering Ltd
Select variant..
nbs-symbol
Add to spec
Frame Cramps - Masonry Wall Restraints
Verified 23 days ago
Vista Engineering Ltd
Select variant..
nbs-symbol
Add to spec
Summary
Range of frame cramps and ties to allow masonry walls to be restrained back to other elements of the structure.
Third party certification
ISO 9001 Quality Management
ISO 9001
Color
Silver
-
-
Material
Stainless steel, Steel
-
-
Length
50 mm, 75 mm, 100 mm, 125 mm, 150 mm, 175 mm, 200 mm, 225 mm, 250 mm, 275 mm, 300 mm
-
-
Specification
Standard
To BS EN 845-1.
-
-
Material
Grade 304 stainless steel.
-
-
Length
75 mm., 100 mm., 125 mm., 150 mm., 175 mm., 200 mm., 225 mm., 250 mm., 275 mm., 300 mm.
-
-
End types
Asymmetrical flat plate holed for vertical fixing.
-
-
Design embedment length (minimum)
62.5 mm.
-
-
Additional requirements
-
-
-
Mortar joint thickness (minimum)
10 mm.
-
-
Shear load capacity
1180 N.
-
-
Additional properties
Resistance to water crossing cavity
Non-resistant.
-
-
Third party accreditation
UKCA marked.
-
-
Fixing
HFX Hammer fixings, stainless steel., HFX Hammer fixings, zinc-plated., EXB Expansion bolt, stainless steel., EXB Expansion bolt, zinc-plated., SELF Self-tapping screws., SELF Self-tapping screws with NEO Neoprene washers.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of product manufacture
United Kingdom
-
-
Recyclability
Recyclable
-
-
Recycled content
0 %
-
-
