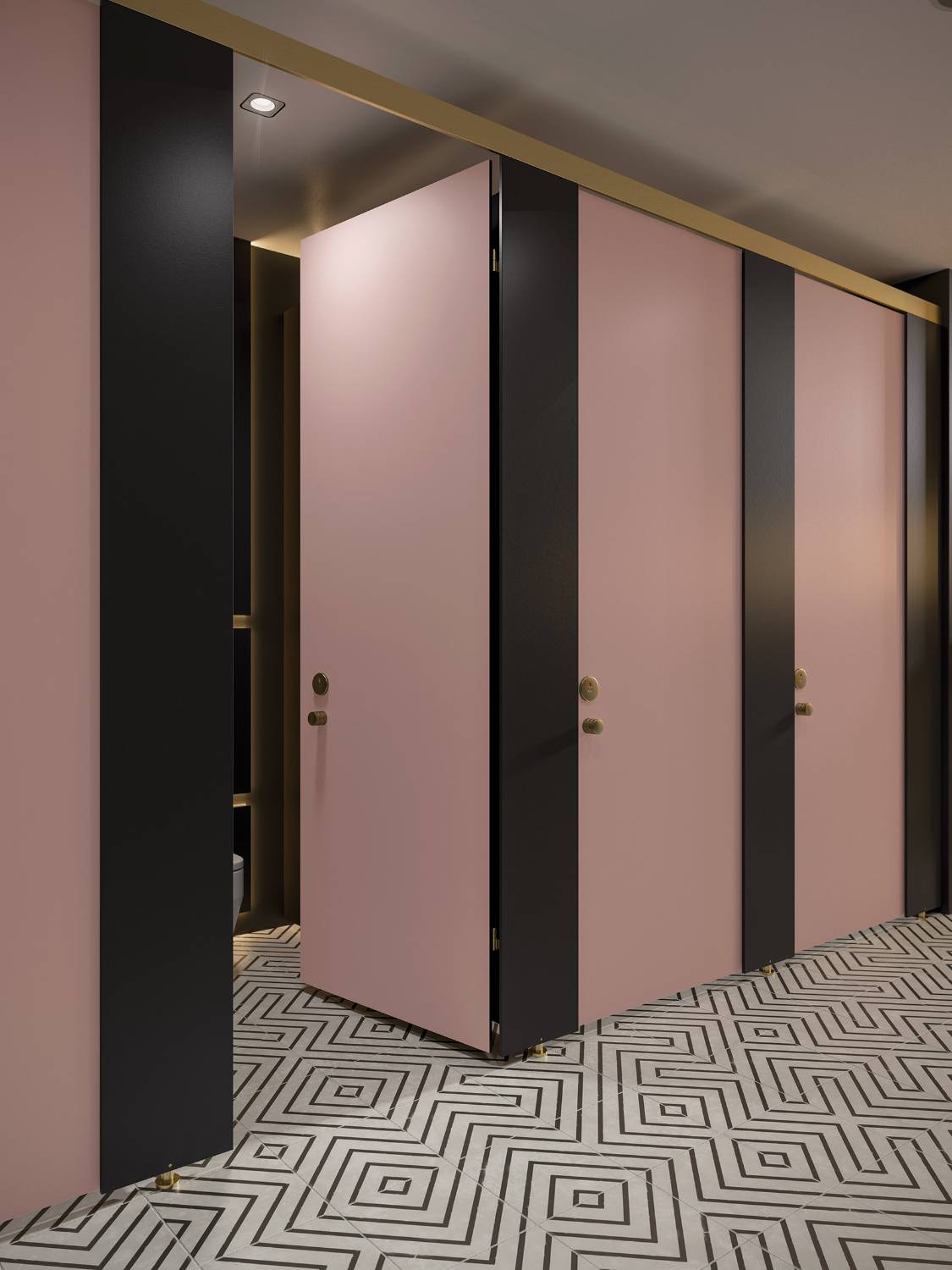

Formica® Washroom Collection - High Pressure Laminate
Verified by manufacturer 7 months ago
Formica® Compact - CGS
Formica® Compact - CGS
GreenGuard Gold
Certificate type
EPD
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Formica® Washroom Collection for changing rooms and commercial washrooms.
Application
Applications include:
- Standard cubicles with visible fixings.
- Full height cubicles, with clean lines and discreet internal fixings.
- Shower cubicles.
- Changing room cubicles.
- IPS panels, cistern boxes and wall cladding.
- Vanity units.
- Benches and lockers.
Description
Formica® Washroom Collection: High pressure laminate for changing rooms and commercial washrooms.
Features and benefits:
- Two large sheet sizes.
- Range of 28 decors.
- Compact laminate (CGS, 12 mm) - self-supporting; can be cut, drilled and installed; high impact durability; humidity and moisture resistant.
- Matching Thin Laminate (HGP, 0.7mm) - can be bonded to a substrate and edged.
- Hygienic, durable and functional.
Available in Matte 58™.
Technical specifications:
- Dry heat resistance (EN 438-2: 16): Gloss finish - ≥ Rating 3, Other finish - ≥ Rating 4.
- Wet heat resistance (EN 438-2: 18): Gloss finish - ≥ Rating 3, Other finish - ≥ Rating 4.
- Formability (EN 438-2: 31): L (mm) - ≤ 10 x t , T (mm) - ≤ 20 x t (HGP Only).
- Blistering resistance (EN 438-33): < 0.8mm - 10s, ≥ 0.8mm - 15s (HGP Only).
General information
Color | Beige Black Blue Brown Green |
Finish | Matt |
Material | High pressure laminate (HPL) Guidance for specification option: Sheets consisting of layers of wood-based fibres (paper and / or wood), impregnated with thermosetting resins. |
Shape | Rectangle |
Length | 3660 mm 4300 mm |
Width | 1525 mm 1850 mm |
Height | 0.7 mm 12 mm |
Warranty description | One year |
Uniclass | |
CAWS | K13/130 Laminated plastics-veneered panel lining |
Product range |
Specification data - Compact or solid grade high-pressure laminate (HPL) boards
Grade | HPL/EN438-4 CGS.Guidance for specification option: Compact, General Purpose, Standard high pressure decorative laminate. |
Fire performance | To EN 13501-1, D-s2,d0. |
Thickness | 12 mm.Guidance for specification option: Double sided. |
Panel size | |
Length | 3660 mm.4300 mm. |
Width | 1525 mm.1850 mm. |
Finish | Matte 58™. |
Colour | F2255 Polar White.F7949 Soft White.F7923 Surf.F7927 Folkestone.F7961 Fog.F7912 Storm.F7837 Graphite.F2253 Diamond Black.F8238 Blush.F7845 Spectrum Red.F1485 Chrome Yellow.F4177 Lime.F7879 Dusty Jade.F8237 Fir.F7884 China Blue.F8822 Denim.F2828 Tropical Blue.F8242 Night Sea.F5374 Elegant Oak.F8853 Rural Oak.F1548 Mocha Cedar.F6932 Macchiato Walnut.F5150 American Walnut.F1547 Noir Cedar.F0193 Xenon.F8827 Sarum Twill.F3734 Radon. |
Density | To EN ISO 1183-1, ≥ 1.35g/cm³. |
Dimensional stability | To EN 438-2:17, Longitudial: (2.0 ≤ t < 5.0mm) - ≤ 0.4%, (t ≥ 5.0mm) - ≤ 0.3%; Transversal: (2.0 ≤ t < 5.0mm) - ≤ 0.8%, (t ≥ 5.0mm) - ≤ 0.6%. |
Flexural strength | To EN ISO 187, ≥ 80MPa. |
Impact resistance | To EN 438-2: 20, 2.0 ≤ t < 6.0: 1400 mm, 6.0 ≤ t: 1800 mm. |
Lightfastness | To EN 438-2: 27, ≥ 4 Contrast. |
Modules of elasticity | To EN ISO 187, ≥ 9000MPa. |
Scratch resistance | To EN 438-2:25, Smooth - ≥ Rating 2, Textured - ≥ Rating 3. |
Stain Resistance | To EN 438-2: 26, (Group 1+2) ≥ Rating 4, (Group 3) ≥ Rating 4. |
Water resistance | Gloss finish - ≥ Rating 3, Other - ≥ Rating 4. Guidance for specification option:
|
Water vapour resistance | To EN 438-2:14, Gloss finish - ≥ Rating 3, Other finish - ≥ Rating 4. |
Wear resistance | To EN 438-2:10, ≥150 revolutions. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | High pressure laminate (HPL) Guidance for specification option: Sheets consisting of layers of wood-based fibres (paper and / or wood), impregnated with thermosetting resins. |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceSee EPD for Formica® Group Europe HPL non-FR 0.7mm: https://www.formica.info/ |
Recyclability | Non-reusable |
Expected Life | 30 year |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 1 |
Third party certifications
GreenGuard Gold
Compact Laminate Greenguard GOLD
EPD
Formica® Compact (12mm) Environmental Product Declaration (EPD)
EPD
Formica® Laminate (0.7mm) non-postformable, non-Fire Rated Environmental Product Declaration (EPD)
EPD
Formica® Laminate Environmental Product Declaration (EPD) non-FR 0.7mm
GreenGuard Gold
High Pressure Laminate Greenguard
ISO 45001 Health and Safety Management
Occupational Health and Safety Management System Certificate - ISO 45001:2018
ISO 9001 Quality Management
Quality Management System Certificate - ISO 9001:2015
Literature
Washroom Brochure
Case studies

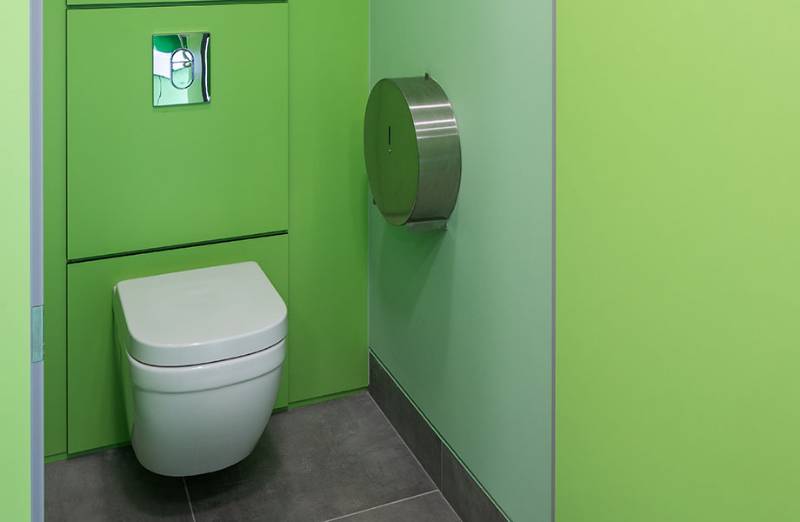

Versatility of the Formica® Washroom Collection
