Description

Formica® Compact is a high pressure structural laminate, built up from multiple layers of kraft paper with a decorative face on both sides.

Ideally suited to high impact and high humidity environments, Formica Compact has remarkable structural stability and does not require any substrate support in thicknesses over 6 mm. It is impressively strong and damage resistant. Its decorative black core can be machined to create striking features. Formica Compact is certified by the CE Mark to meet or exceed conformity with European consumer safety, health and environmental requirements.

General information
Specification data - Compact or solid grade high-pressure laminate (HPL) boards
Product Reference

Formica® Compact

Structural Laminates by Formica Group.

Grade

Compact, General Purpose, Flame retardant (CGF)

Available on request.

Compact , General Purpose, Standard (CGS)

Standard product features

Sheet size:

3660 x 1525 mm.

Properties (typical values):

  • Wear resistance (BS EN 438-2 Test Method 6): 450 revolutions.
  • Boiling water resistance (BS EN 438-2 Test Method 7): 1.0% mass, .06% thickness.
  • Dry heat resistance (BS EN 438-2 Test Method 8): Rating 5.
  • Dimensional stability at elevated temperature (BS EN 438-2 Test Method 9): L0.18%, T 0.35%.
  • Dimensional stability at ambient temperature (BS EN 438-2 Test Method 10): L 0.04%,T 0.35%.
  • Impact resistance (BS EN 438-2 Test Method 11): > 200cm.
  • Scratch resistance (BS EN 438-2 Test Method 14): 4.0 N.
  • Stain resistance (BS EN 438-2 Test Method 15): (Reagents 1+2) 5, (Reagents 3+4) 5.
  • Lightfastness (BS EN 438-2 Test Method 16): Wool standard 7.
  • Cigarette resistance (BS EN 438-2 Test Method 18): Rating 4.
  • Steam resistance (BS EN 438-2 Test Method 24): Rating 5.
  • Crazing resistance: (BS EN 438-2 Test Method 26): Rating 5.
  • Moisture resistance: (BS EN 438-2 Test Method 27): Rating 5.
  • Flexural Modulus (BS EN ISO 178): 11000MPa.
  • Flexural Strength (BS EN ISO 178): 120 MPa.
  • Tensile Strength (BS EN ISO 527-2): 80 MPa.

Product Options

Grade:

  • HPL/BS EN 438-4 CGF: Compact, General Purpose, Flame retardant high pressure decorative laminate. BS EN 13501 Euroclass ≥ 6 mm B-s1, d0 < 6 mm B-s2, d0.
  • HPL/BS EN 438-4 CGS: Compact, General Purpose, Standard high pressure decorative laminate. BS EN 13501 Euroclass C-s1, d0.

Colour/ Pattern:

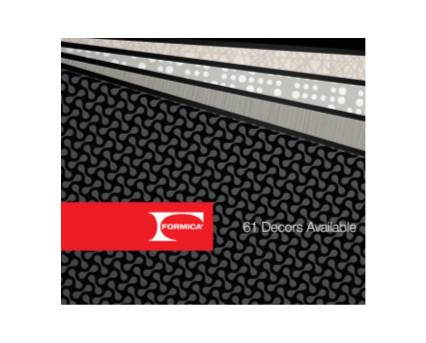

Compact is available in a wide range of Colours, Patterns and Woods from the Formica® Collection. Details available on request.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 1.3
Download now from NBS National BIM Library
