Folding Shower Seat - Removable - for Grab Bar Rail system - PLAN CARE - Shower seat

Verified by manufacturer 2 days ago

34981010037

KEUCO Variant:
Third party certifications:
  • TUV - Safety and Quality Report

    Certificate type

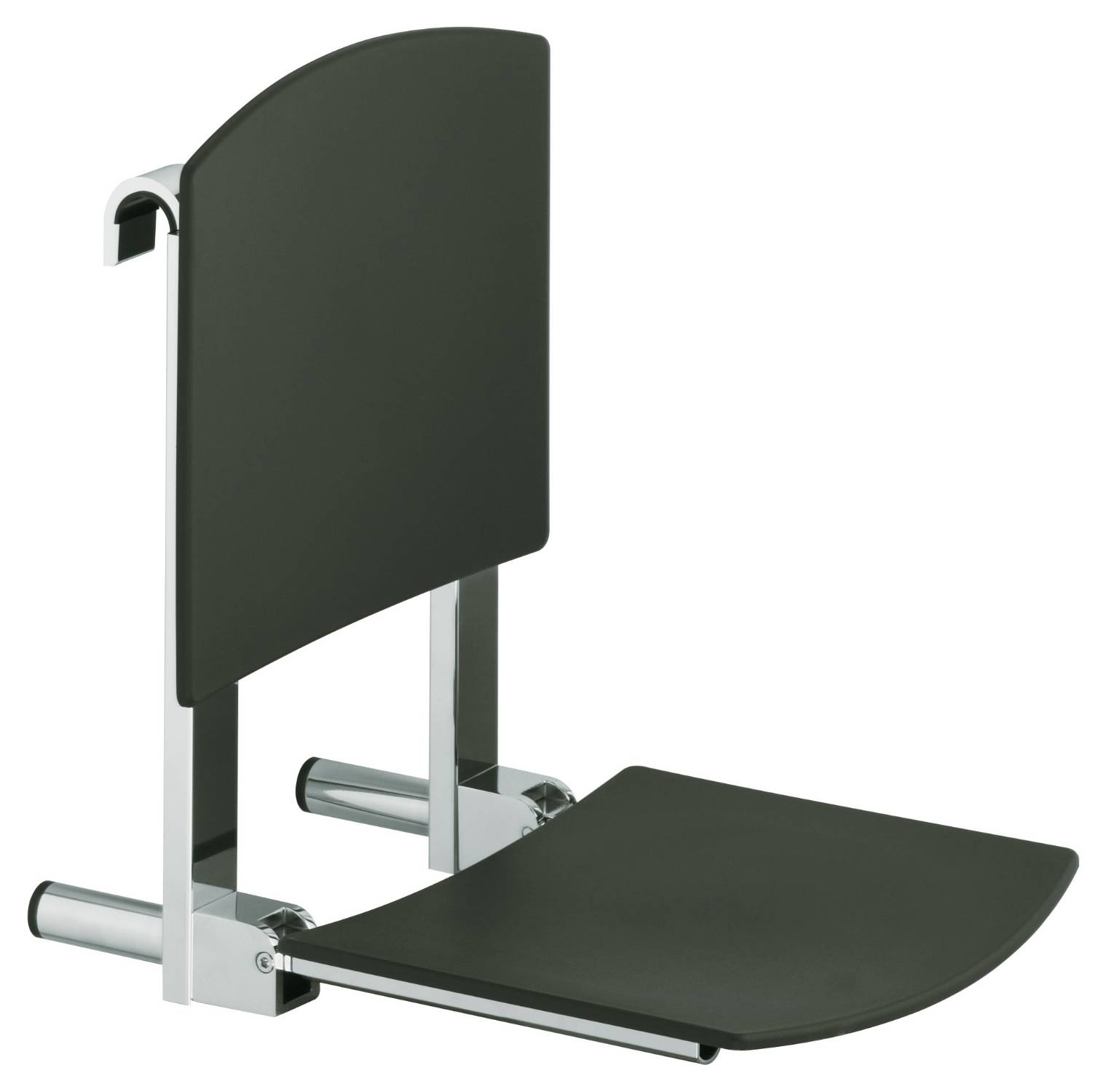

Removable Folding shower seat for use with KEUCO PLAN CARE Grab Rail systems

Jump to:
BOS
+44 (0) 1442 865220 Website

Application

For hanging into rail system for shower and bath rails in public or private facilities.

Description

Spacious floor-level showers are currently very popular - and enhance the feeling of well-being. A seat in the shower can provide extra convenience, because showering while sitting is very comfortable and safe. The Plan Care tip-up seat is an attractive and elegant solution. Available with or without back rest, in various materials and colours and in two sizes, for safety and comfort in the shower it is an ergonomic and space-saving solution.


Combined with a railing system, the Plan Care tip-up seat for the shower can be adjusted to the space-saving vertical position after use. If it is not used very often, with a simple motion of the hand it can be unmounted and stored away until its next use.


High-quality materials and excellent workmanship make the Plan Care tip-up seat an attractive furnishing element. The robust wall-mount and the foamed, slightly moulded soft seat surface ensure a reliable grip and an enjoyable product experience. Two sizes are available to suit space or individual needs. The large model satisfies the requirements of DIN 18040-1 for barrier-free mounting in publicly accessible buildings.


Features and benefits:

  • Aesthetic, practical and space-saving design (tip-up - seat tilt upwards).
  • Removable back rest for cleaning.
  • Suitable for rail system - safe seating arrangement in the shower.
  • Anti-static.
  • Easy to clean.
  • Plastic brackets for mounting onto support grip/ hand bar and plastic buffer for wall tiles.
  • Seat can carry weight up to 110 kg.
  • Also available without a backrest (specified separately).

General information

Color

Grey

White

Finish

Chrome

Guidance for specification option:

Chrome plated.

Lacquered

Guidance for specification option:

Aluminium lacquered.

Material

Polypropylene

Shape

Rectangle

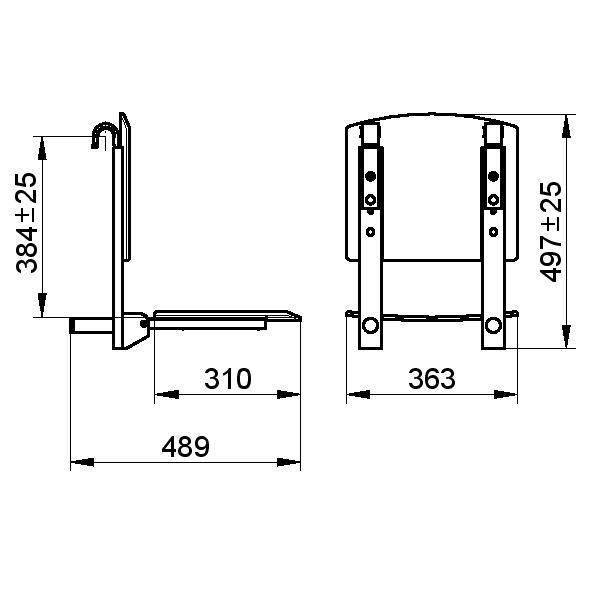

Length

497 mm

Width

489 mm

Height

363 mm

Warranty description

Five year

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/448 Seats

Product range

Accessories / PLAN Care

Specification data - Shower seats

Form

Rail-mounted.

Materials

-

Seat

Tip-up, plastic.

Guidance for specification option:

Made from polypropylene.

Integral accessories

Backrest.

Load capacity

110 kg.

Surface finish

Chrome-plated/ dark grey (RAL 7021).

Guidance for specification option:

Frame/ seat.

Mounting

Guidance for specification option:

For completion necessary:

Articles from the Plan Care rail system (article no. 34901 - 34915).


Please order separately. Insert requirements; consult manufacturer for more information.

Width

363 mm.

Height

497 mm.

Depth

489 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polypropylene

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

TUV - Safety and Quality Report

TUV - Safety and Quality Report

TUV-Nord Certificate (Seats)

Literature

KEUCO Barrier-free Bathrooms

KEUCO Barrier-free Bathrooms

Case studies

Redecorated Hotel Arcadeon in Hagen impresses with style-conscious blend of modernity and comfort

Redecorated Hotel Arcadeon in Hagen impresses with style-conscious blend of modernity and comfort

HOSPITAL AND HOTEL IN ONE

HOSPITAL AND HOTEL IN ONE

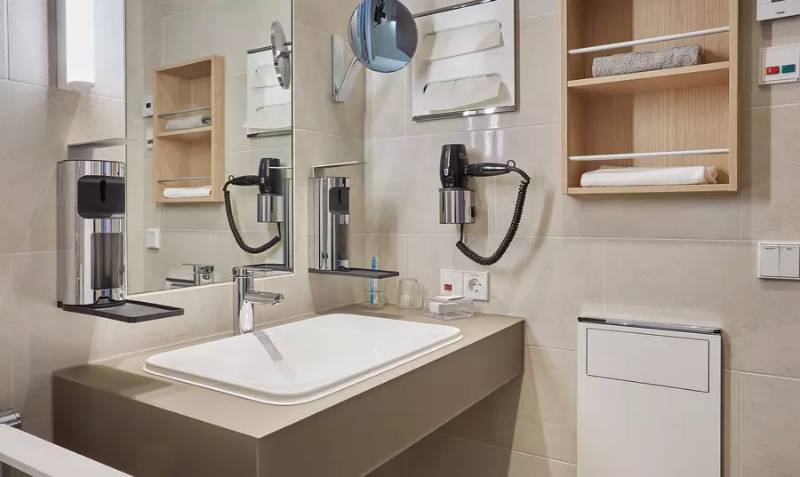

A STYLISH KEUCO BATHROOM IN A TEMPORARY HOME
