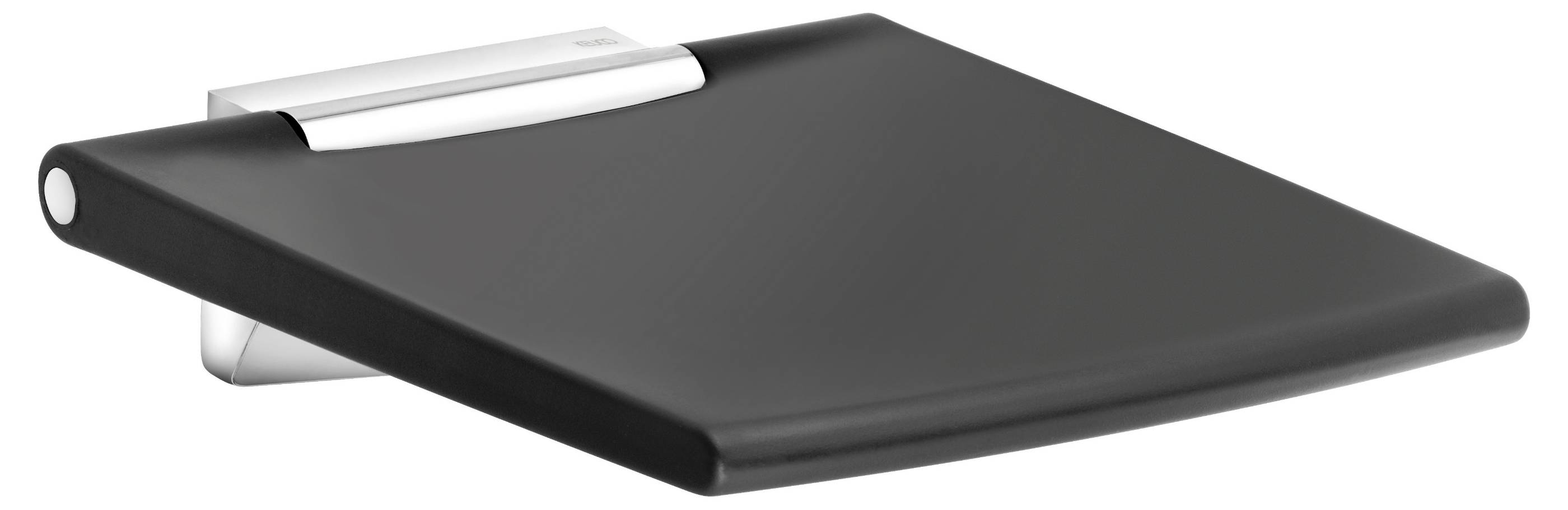

Folding Shower Seat - 450 mm - PLAN CARE - Shower seat

Verified by manufacturer 1 month ago

34983010037

KEUCO Variant:
Third party certifications:
  • TUV - Safety and Quality Report

    Certificate type

Wall mounted folding shower seat, soft feel.

Jump to:
BOS
+44 (0) 1442 865220 Website

Application

Suitable for:

  • Use in bathrooms and washrooms in private and commercial settings.
  • Bathroom accessory.

Description

Spacious floor-level showers are currently very popular - and enhance the feeling of well-being. A seat in the shower can provide extra convenience, because showering while sitting is very comfortable and safe. The Plan Care tip-up seat is an attractive and elegant solution. Available with or without back rest, in various materials and colours and in two sizes, for safety and comfort in the shower it is an ergonomic and space-saving solution. With a load capacity of 150 kg. it can be put to use in both private as well as public facilities.


Combined with a railing system, the Plan Care tip-up seat for the shower can be adjusted to the space-saving vertical position after use. If it is not used very often, with a simple motion of the hand it can be unmounted and stored away until its next use.


High-quality materials and excellent workmanship make the Plan Care tip-up seat an attractive furnishing element. The robust wall-mount and the foamed, slightly moulded soft seat surface ensure a reliable grip and an enjoyable product experience. Two sizes are available to suit space or individual needs. The large model satisfies the requirements of DIN 18040-1 for barrier-free mounting in publicly accessible buildings.


Features and benefits:

  • Aesthetic, functional and space-saving fold-up design.
  • For wall mounting for safe seats in the shower area
  • Wall bracket and aluminium lacquered or chrome seat support.
  • Anti-static.
  • Easy cleaning - disinfect with maximum 60% ethanol or propanol solution (other disinfectants are not recommended).
  • Up to 150 kg load capacity.
  • Also available as a 370 mm model, or with a backrest (both specified separately).

General information

Color

Grey

Guidance for specification option:

Dark grey (RAL 7021) and light grey (RAL 7035).

White

Guidance for specification option:

White (RAL 9010).

Finish

Chrome

Guidance for specification option:

Chrome plated (frame).

Lacquered

Guidance for specification option:

Aluminium lacquered (frame).

Material

Polyurethane

Guidance for specification option:

Tip-up seat made from Polyurethane-foam.

Shape

Rectangle

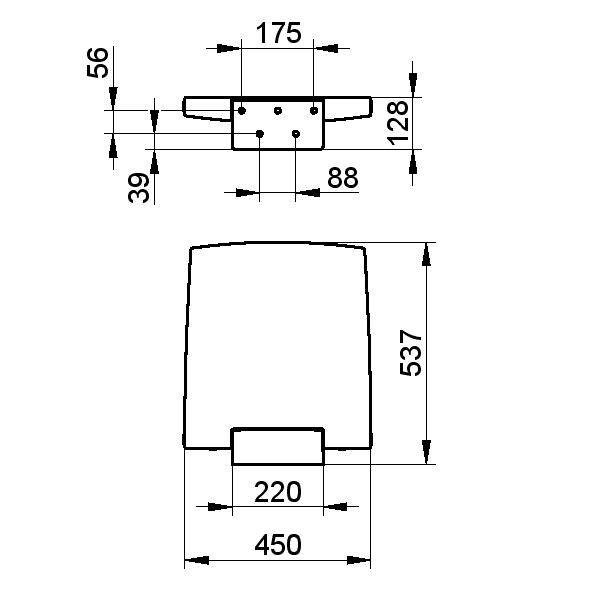

Length

450 mm

Width

537 mm

Height

128 mm

Warranty description

Five year

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/448 Seats

Product range

Accessories / PLAN Care

Specification data - Shower seats

Form

Wall-mounted.

Materials

-

Seat

Tip-up, plastic.

Guidance for specification option:

Made from polyurethane-foam.

Surface finish

Chrome-plated/ dark grey (RAL 7021).

Guidance for specification option:

Frame/ seat.

Mounting

2 x mounting set 2.

Guidance for specification option:

(Article no. 34992000100.)

2 x mounting set 5.

Guidance for specification option:

(Article no. 34992000200.)

2 x mounting set 8.

Guidance for specification option:

(Article no. 34995000200.)

1 x mounting set 10.

Guidance for specification option:

(Article no. 34997000100.)

Manufacturer guidance

It is essential for installation to order the correct screws/ bolts depending on type of wall. See article number or consult with manufacturer for more information.

Width

450 mm.

Height

128 mm.

Depth

537 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polyurethane

Guidance for specification option:

Tip-up seat made from Polyurethane-foam.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

TUV - Safety and Quality Report

TUV - Safety and Quality Report

TUV-Nord Certificate (Seats)
