Folding Shower Seat, Left Hand B-518

Verified by manufacturer 11 months ago

Bobrick Washroom Equipment Ltd

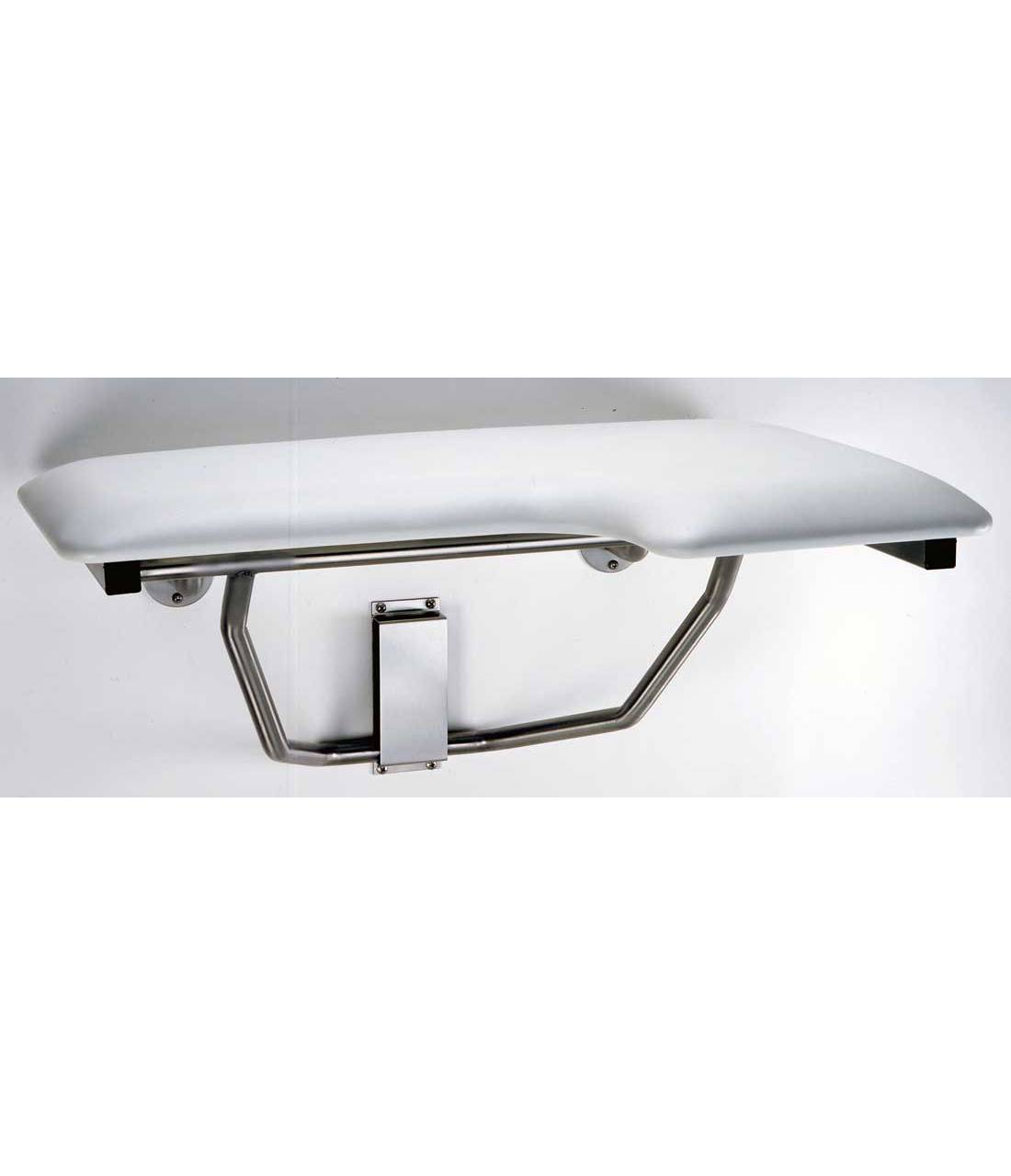

Foam-padded, white, water-resistant Naugahyde seat 1 1/2″ (38 mm) thick, with enclosed 1/2″ (13 mm) plywood base.

Jump to:
+44 (0)20 8366 1771 Website

Application

Wall mounted. For accessible use.

Description

Features and benefits:

  • Left-hand seat.
  • Complies with Planning Guide for Accessible Restrooms.
  • Foam-padded, white, water-resistant Naugahyde seat 1 1/2″ (38 mm) thick, with enclosed 1/2″ (13 mm) plywood base.
  • Frame and mounting brackets are Type 304 stainless steel and have a self-locking mechanism.
  • Supports up to 360 lbs (163 kg) when properly installed.
  • Seat 32 7/8″ (835 mm) wide and projects 22 11/16″ (575 mm) from the wall.


Safety instructions:

Shower seats are no stronger than the anchors and walls to which they are attached and must be firmly secured in order to support the loads for which they are intended. Consult and comply with local building codes. To avoid potential injury, the building owner or maintenance personnel should remove the shower seat from service if the shower seat is not adequately secured to the wall. In the interests of safety and the protection of end users, this seat should not be used to support weights exceeding 360lbs (163 kg). To avoid potential seat malfunction, DO NOT use seat if weight exceeds 360 lbs (163 kg). Failure to abide by this warning may result in seat malfunctioning, potentially causing minor to moderate injury.

General information

Color

White

Silver

Finish

Matt

Satin

Material

Polyurethane

Guidance for specification option:

Closed-cell polyurethane foam.

Vinyl

Plywood

Stainless steel

Shape

Rectangle

Length

835 mm

Width

575 mm

Height

805 mm

Warranty description

Guidance for specification option:

Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase.

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/14 Unisex accessible shower room equipment packages (Document M)

N13/448 Seats

Specification data - Shower seats

Form

Wall-mounted, hinged.

Materials

-

Frame

Stainless Steel.

Seat

Vinyl covered pad.

Sustainability data

Country of material origin

United States

Recyclability

-

Manufacturer guidance

Metals widely recycled

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Washroom Accessories

Washroom Accessories

Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

Folding Shower Seat with Padded Cushion - B-517 and B-518

Folding Shower Seat with Padded Cushion - B-517 and B-518

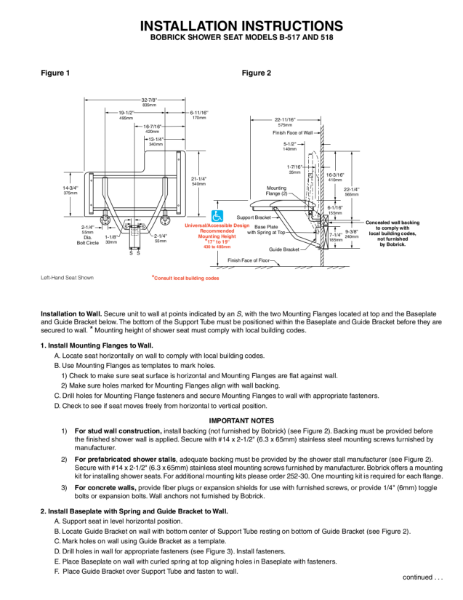

Installation Instructions - B-517 and B-518

Installation Instructions - B-517 and B-518
