Application

Wall mounted. For accessible use.

Description

Features and benefits:

  • Compact design.
  • Seat is constructed of durable, water-resistant, ivory coloured, 5/16″ (8 mm) thick solid phenolic.
  • Frame and mounting bracket are Type 304 stainless steel and have a self-locking mechanism.
  • Supports up to 500 lbs (227 kg) when properly installed.
  • Seat 18″ (455 mm) wide and projects 15 13/16″ (400 mm) from the wall.


Safety:

  • Shower seats are no stronger than the anchors and walls to which they are attached and must be firmly secured in order to support the loads for which they are intended. Consult and comply with local building codes. To avoid potential injury, the building owner or maintenance personnel should remove the shower seat from service if the shower seat is not adequately secured to the wall. In the interests of safety and the protection of end users, this seat should not be used to support weights exceeding 500lbs (227 kg).
  • To avoid potential seat malfunction, DO NOT use seat if weight exceeds 500 lbs (227 kg). Failure to abide by this warning may result in seat malfunctioning, potentially causing minor to moderate injury.

General information

Color

Ivory

Finish

Satin

Matt

Material

Laminate

Guidance for specification option:

Compact laminate

Stainless steel

Shape

Rectangle

Length

455 mm

Width

400 mm

Height

630 mm

Warranty description

One year

Guidance for specification option:

Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase.

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/14 Unisex accessible shower room equipment packages (Document M)

N13/448 Seats

Specification data - Shower seats

Form

Wall-mounted, hinged.

Materials

-

Frame

Stainless steel.

Seat

8mm Compact laminate.

Sustainability data

Country of material origin

United States

Recyclability

-

Manufacturer guidance

Metals widely recycled

BIM objects

Platform Compatible Version
Revit
-

1

Literature

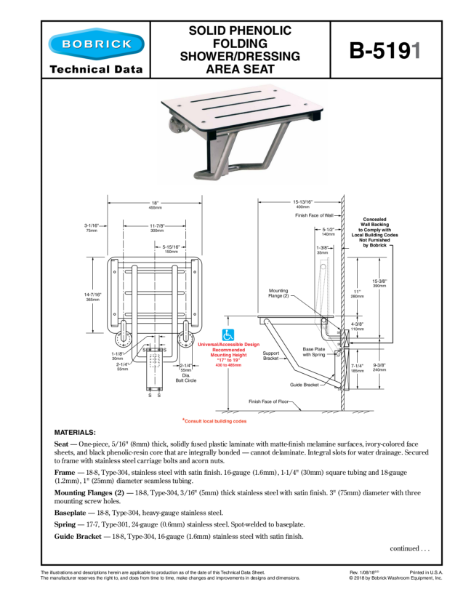

Solid Phenolic Folding Shower/ Dressing Area Seat - B-5191

Solid Phenolic Folding Shower/ Dressing Area Seat - B-5191

Installation Instructions - Bobrick Shower/ Dressing Area Seat Model B-5191

Installation Instructions - Bobrick Shower/ Dressing Area Seat Model B-5191

Washroom Accessories

Washroom Accessories

TB-88 Advisory Bulletin

TB-88 Advisory Bulletin
